MTSOLAR_LB2GHELK04DJ

$7,428.21

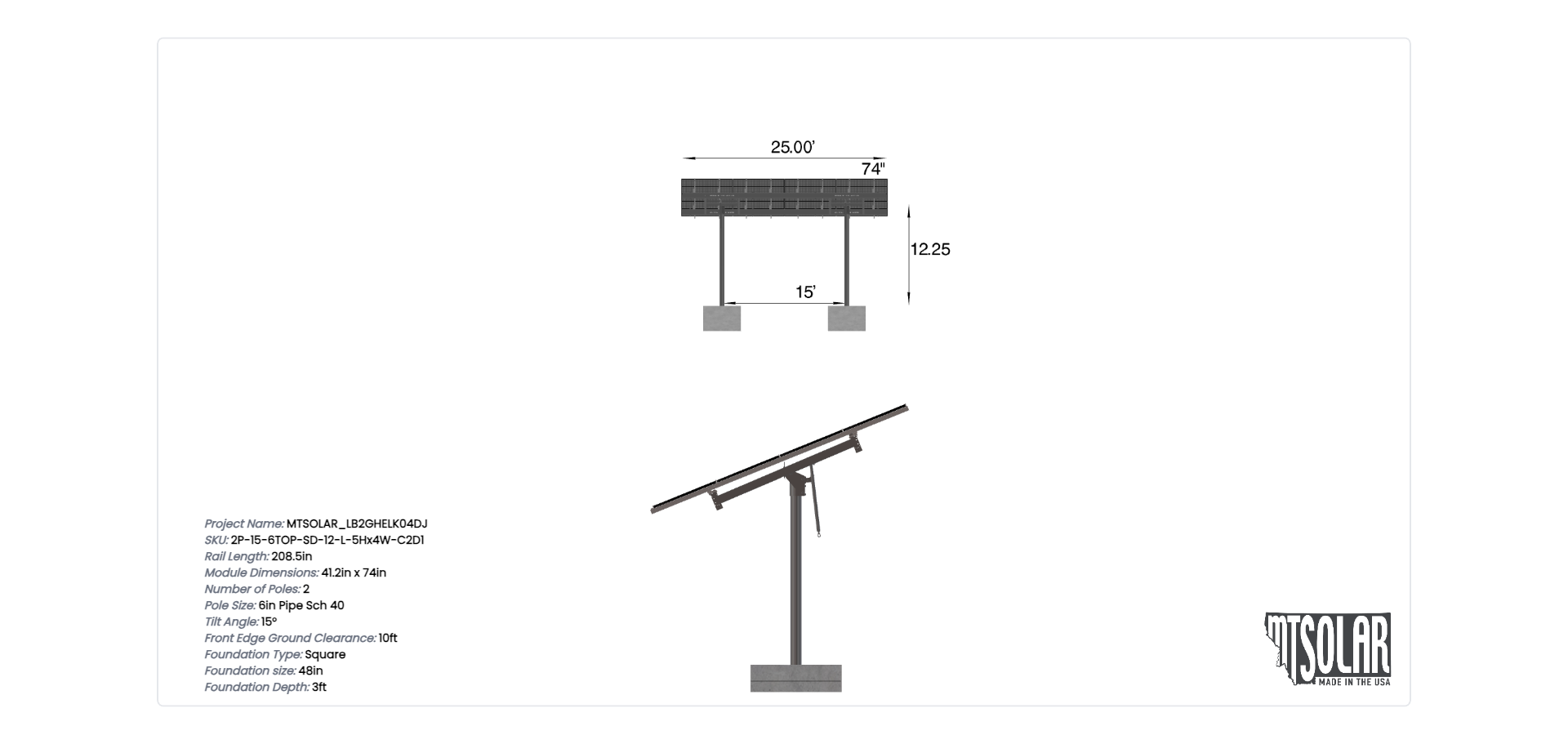

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.2 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-15-6TOP-SD-12-L-5Hx4W-C2D1 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.2 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1412.26 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-6TOP-SD-12-L-5HX4W-C2D1

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

12.25

WING SPAN

12.00

MAX FOUNDATION DEPTH

3.00

TILT ANGLE

15.00

CANTILEVER

294.00

GROUND CLEARANCE

10.00

NO POLES

2.00

MODULE AREA

434.38

ARRAY WIDTH

25.00

ARRAY HEIGHT

17.38

RAIL LENGTH

208.50

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

24.50

GROUND TO TOP

14.47

PROJECTED PANEL HEIGHT

4.44

PROJECT ID

MTSOLAR, LB2GHELK04DJ

SITE ADDRESS

UKIAH, CA, 95482, USA

MODULE WIDTH

41.20

NUMBER ROWS

5.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

10.00

SNOW LOAD OVERRIDE

0.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

7428.21

TOTAL WEIGHT

1412.26

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/b1fc9923-83cf-4312-9cd3-785cc07e7a30.pdf

ID

6388.00
