This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

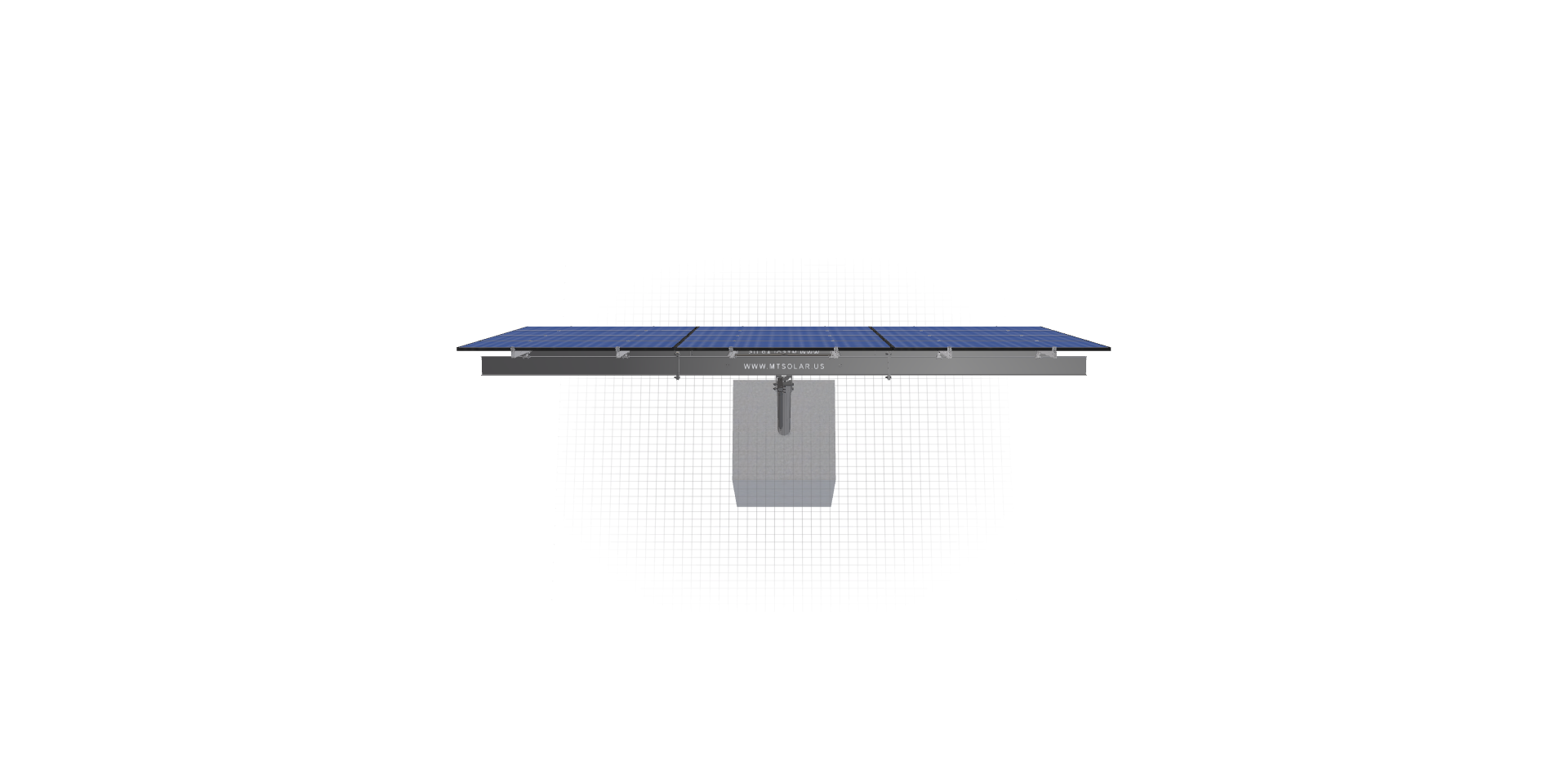

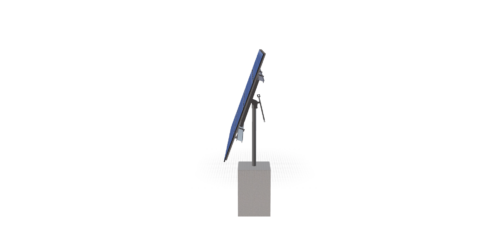

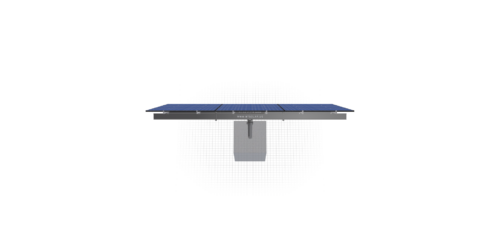

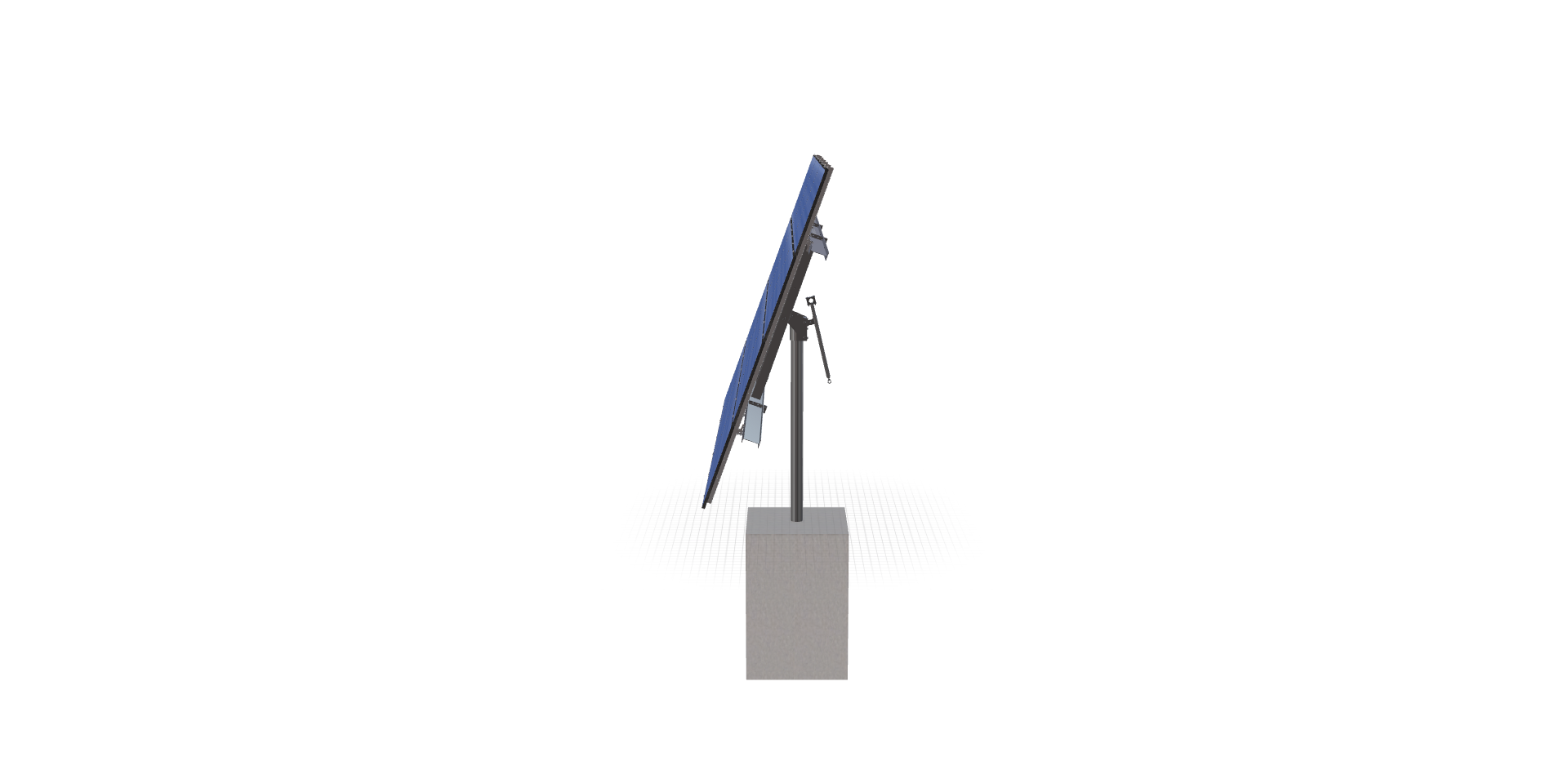

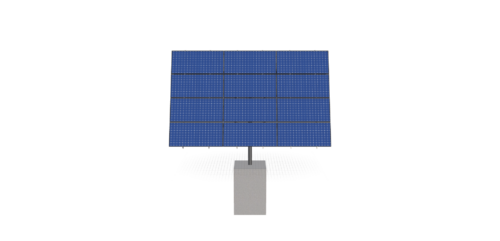

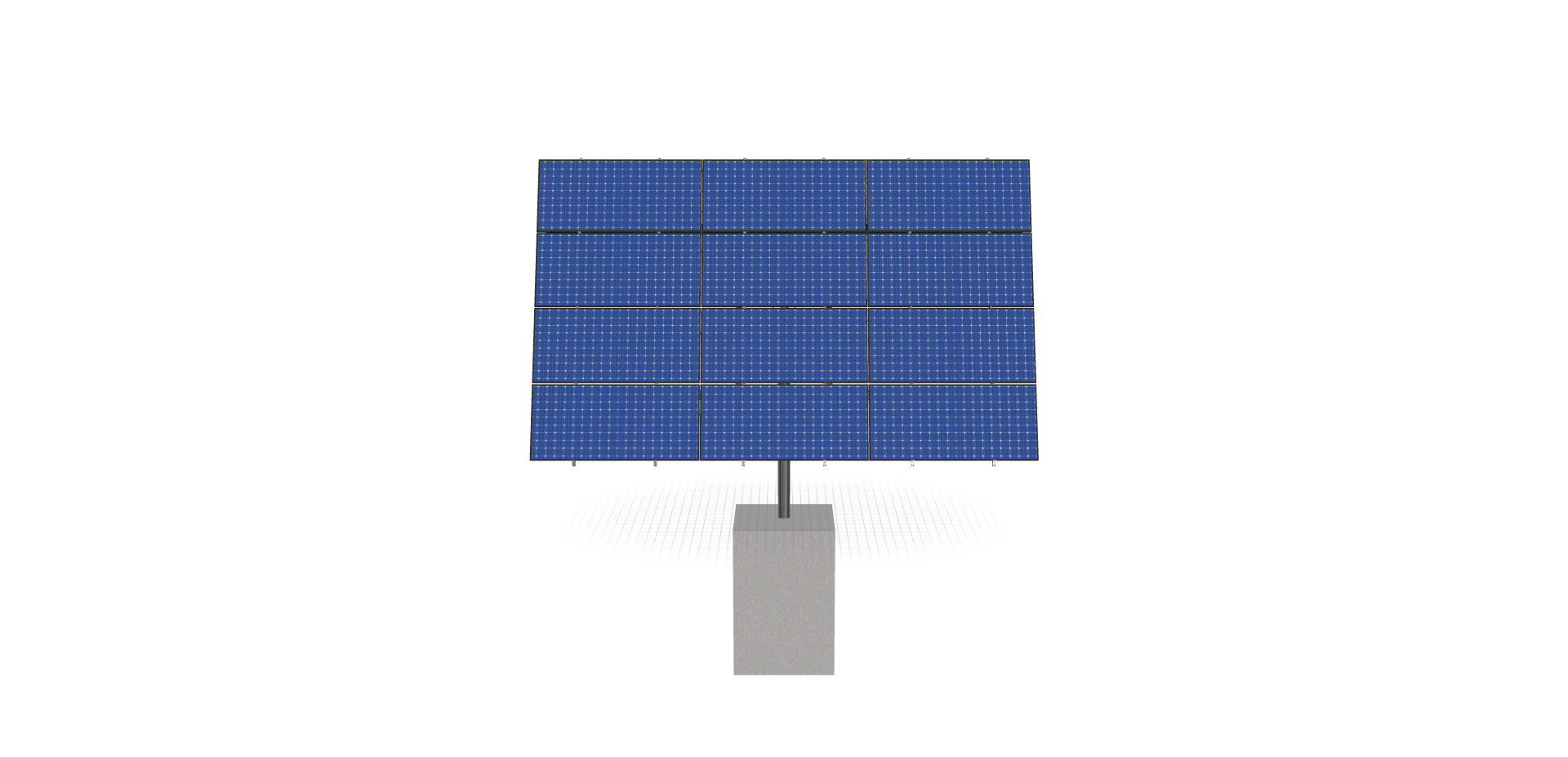

See 3D Model Here
MTSOLAR_wayne23
$4,410.70
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 799.16 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-8TOP-SD-84-L-4HX3W-CA71 |
DUTY SIZE | SD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 9.52 |
WING SPAN | 84.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 70.00 |
CANTILEVER | 258.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 1.00 |
MODULE AREA | 305.76 |
ARRAY WIDTH | 22.05 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 87.20 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 21.50 |
GROUND TO TOP | 15.95 |
PROJECTED PANEL HEIGHT | 12.87 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | MTSOLAR, WAYNE23 |
SITE ADDRESS | N1600, 180TH, ST, PLUM, CITY, WI, 54761, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 4410.70 |
TOTAL WEIGHT | 799.16 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/d0ae4f21-4e74-4ffb-a4f6-4d1271bc4c16.pdf |
|
ID | 837.00 |
3D Solar link |
