NCSolarNow – W-11467 – 15degrees – Jb

$4,771.35

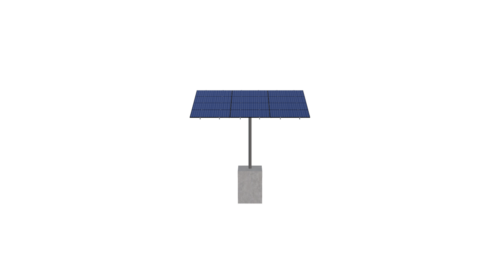

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-72-L-4Hx3W-KE7K Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 884.33 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-72-L-4HX3W-KE7K

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.79

WING SPAN

72.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

15.00

CANTILEVER

234.00

GROUND CLEARANCE

10.00

NO POLES

1.00

MODULE AREA

290.50

ARRAY WIDTH

21.00

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

83.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

13.56

PROJECTED PANEL HEIGHT

3.54

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

NCSOLARNOW, -, W-11467, -, 15DEGREES, -, JB

SITE ADDRESS

7801, HUMIE, OLIVE, RD, APEX, NC, 27502, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

II

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

HD

POLE OVERRIDE

8, 40

SOIL TYPE

CLAY

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

4771.35

TOTAL WEIGHT

884.33

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/edd09839-0fe0-4fa5-a75a-d735bb381aa2.pdf

ID

6323.00
