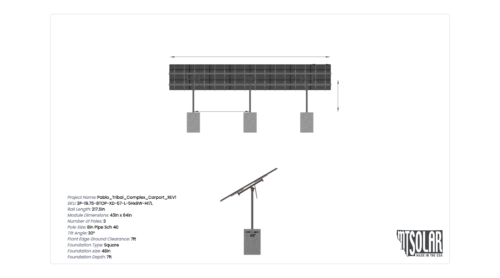

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 43 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

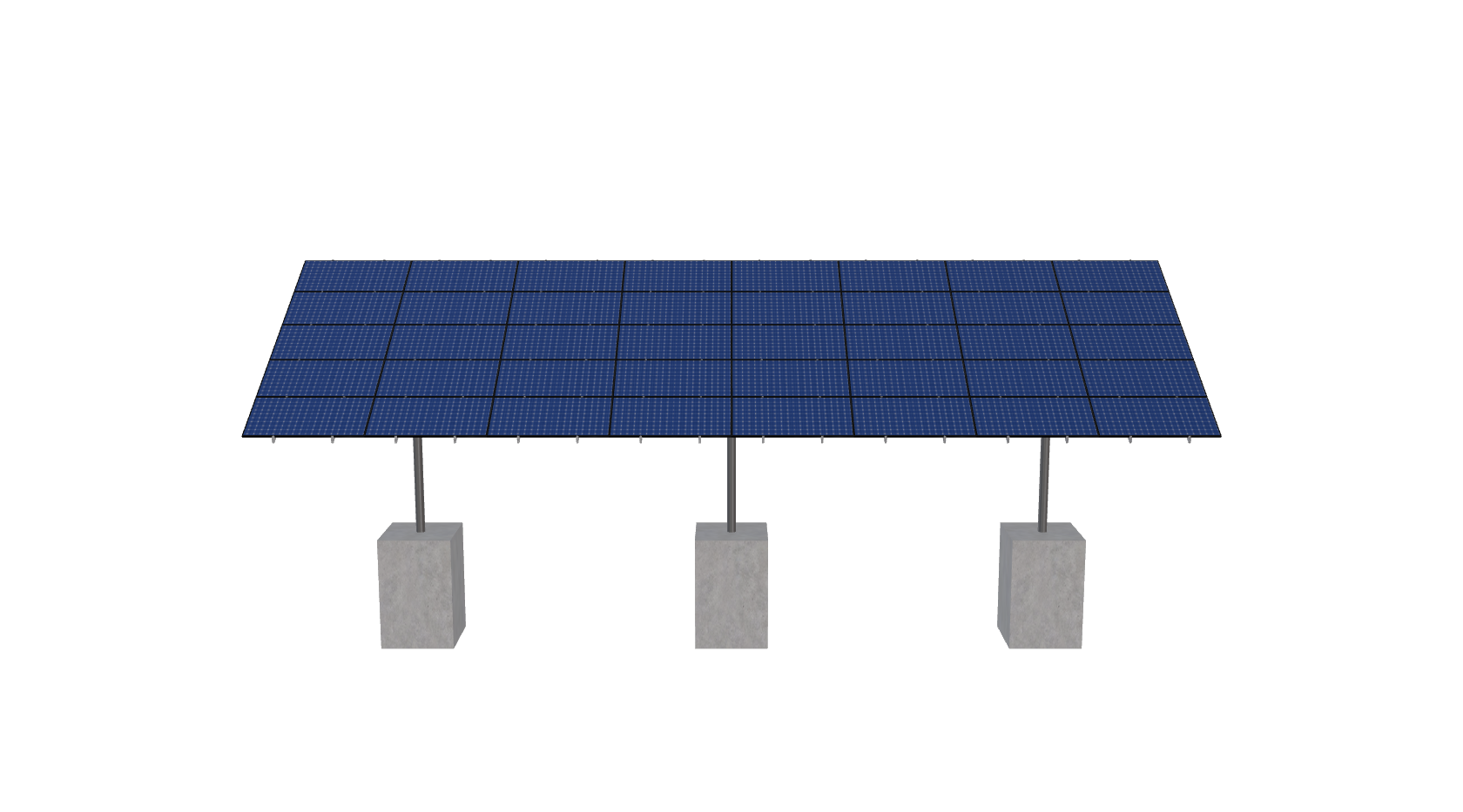

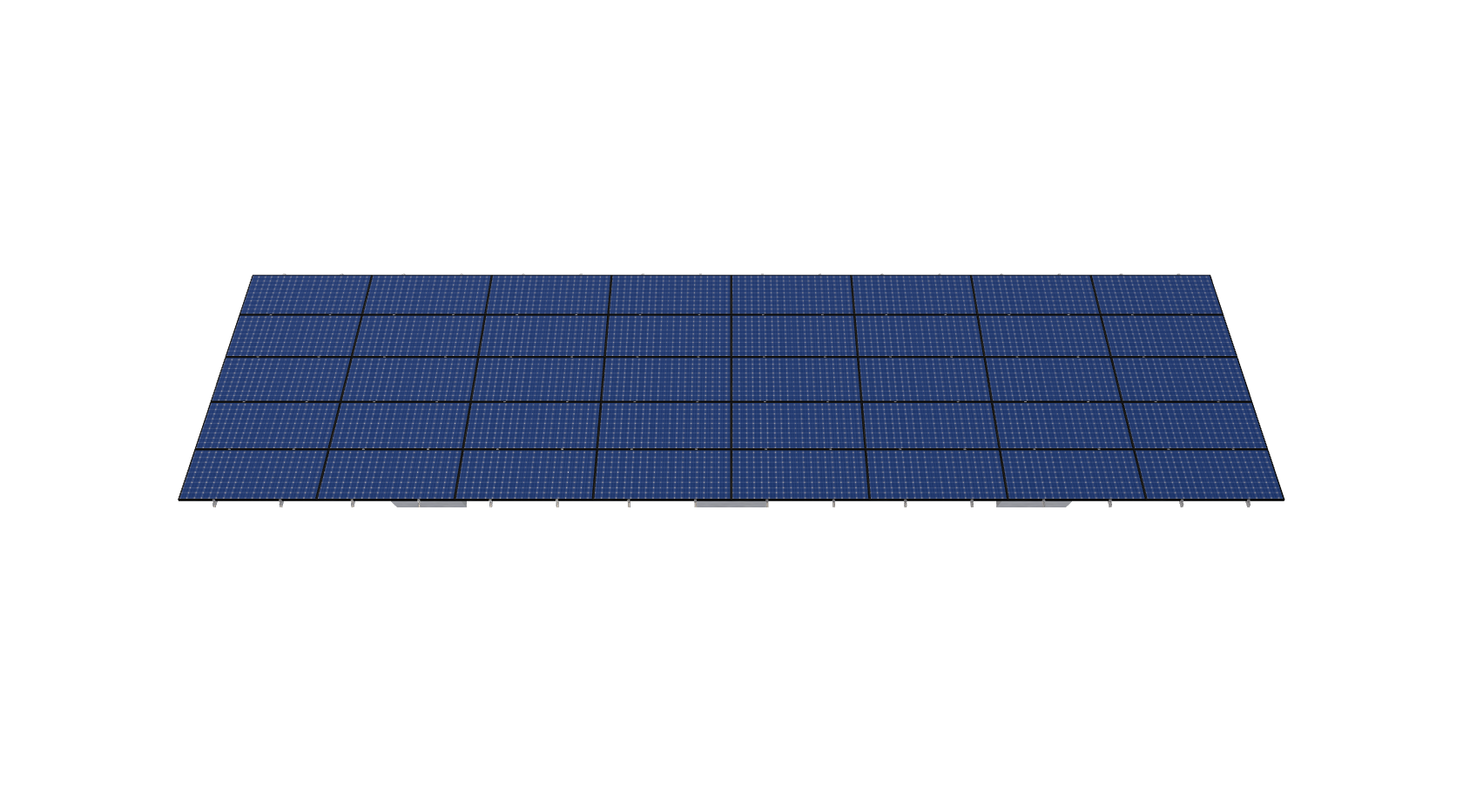

See 3D Model Here
Pablo_Tribal_Complex_Carport_REV1
$17,297.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 43 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3499.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-57-L-5HX8W-HI7L |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.53 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1027.08 |
| ARRAY WIDTH | 56.67 |
| ARRAY HEIGHT | 18.13 |
| RAIL LENGTH | 217.50 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 16.01 |
| PROJECTED PANEL HEIGHT | 8.96 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | PABLO, TRIBAL, COMPLEX, CARPORT, REV1 |
| SITE ADDRESS | 42483, 5TH, AVE, E, PABLO, MT, 59855, USA |
| MODULE WIDTH | 43.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17297.04 |
| TOTAL WEIGHT | 3499.37 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/80835e02-ac36-48aa-bfce-9bc0349387d0.pdf |
|
| ID | 3336.00 |
| 3D Solar link |
