Richard Devore

$16,749.75

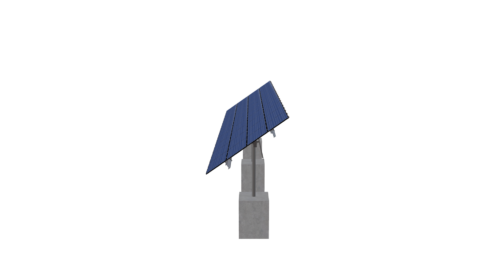

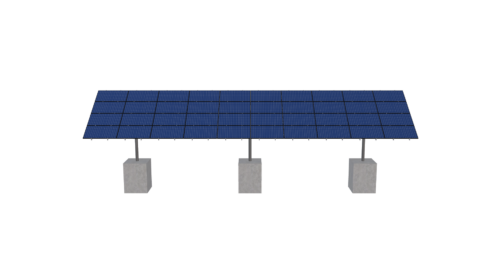

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 3P-22.5-6TOP-XD-57-L-4Hx10W-F34H Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3147.0499999999997 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-6TOP-XD-57-L-4HX10W-F34H

DUTY SIZE

XD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

8.98

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

35.00

CANTILEVER

744.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

867.27

ARRAY WIDTH

62.48

ARRAY HEIGHT

13.88

RAIL LENGTH

166.56

MODULE LENGTH

73.98

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

12.91

PROJECTED PANEL HEIGHT

7.87

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

RICHARD, DEVORE

SITE ADDRESS

3750, CHRISTOPHER, BRIGHTON, MI, 48114, USA

MODULE WIDTH

41.14

NUMBER ROWS

4.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

16749.75

TOTAL WEIGHT

3147.05

TOTAL PALLETS

3.00
