Richard Devore

$13,450.57

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

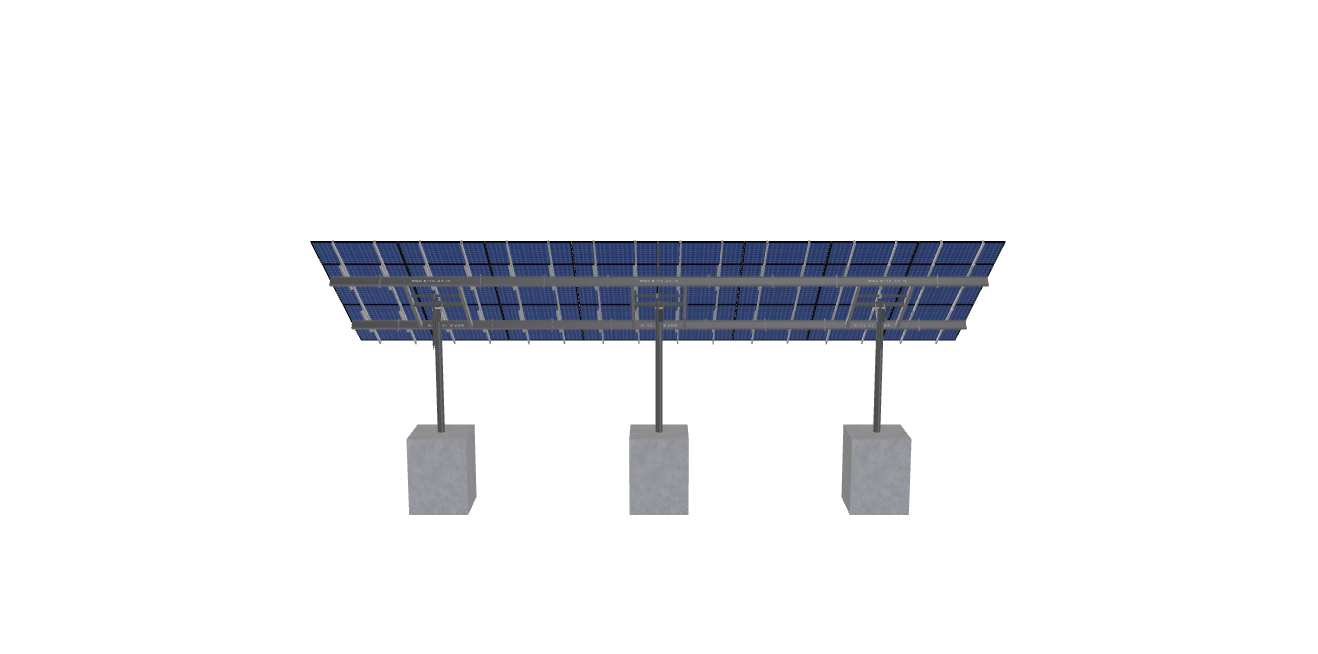

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $13,450.57
Total options:
Order total:
SKU: 3P-17-8TOP-SD-45-L-5Hx8W-9C45 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.14 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2632.52 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-8TOP-SD-45-L-5HX8W-9C45

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

9.98

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

35.00

CANTILEVER

588.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

867.27

ARRAY WIDTH

49.99

ARRAY HEIGHT

17.35

RAIL LENGTH

208.20

MODULE LENGTH

73.98

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

49.00

GROUND TO TOP

14.89

PROJECTED PANEL HEIGHT

9.83

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

RICHARD, DEVORE

SITE ADDRESS

3750, CHRISTOPHER, BRIGHTON, MI, 48114, USA

MODULE WIDTH

41.14

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

13450.57

TOTAL WEIGHT

2632.52

TOTAL PALLETS

3.00
