This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 45 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

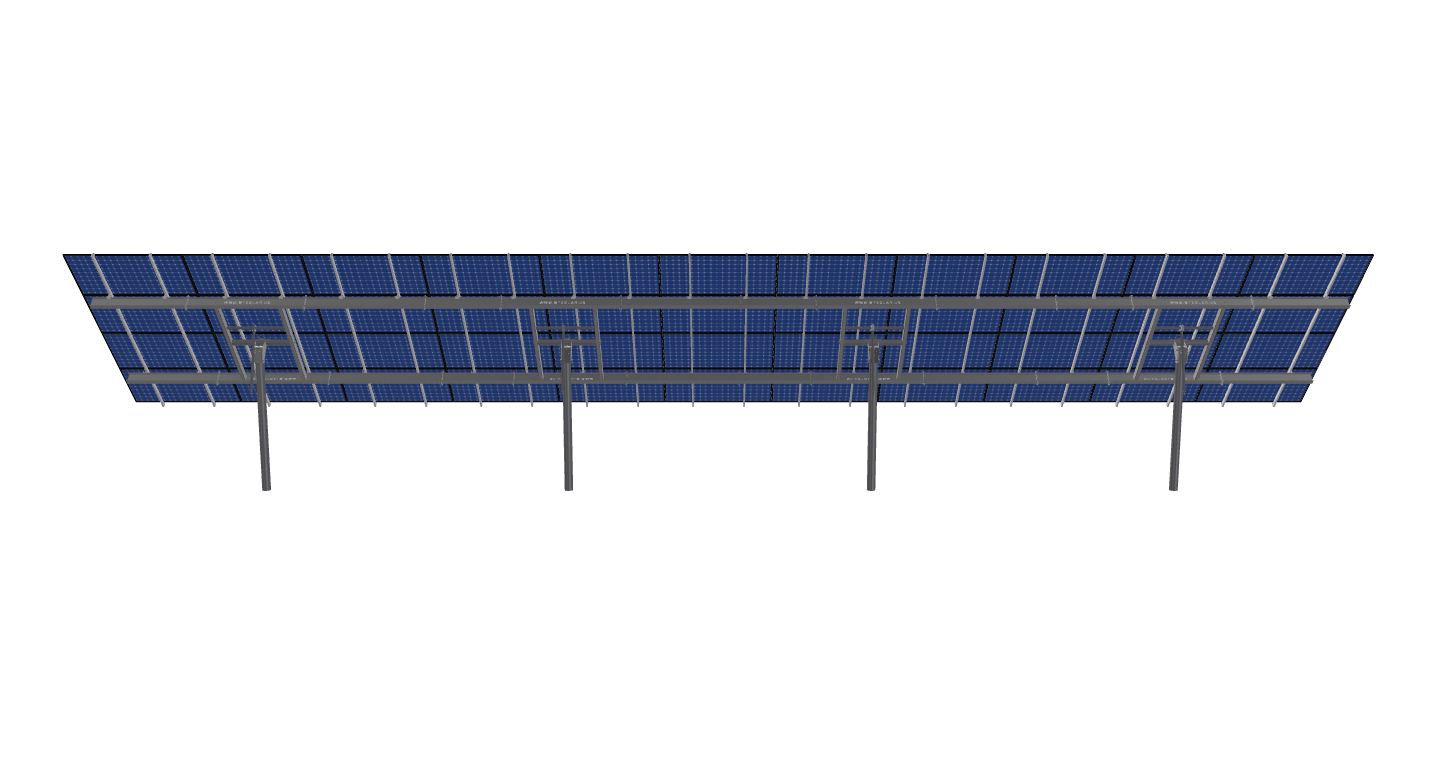

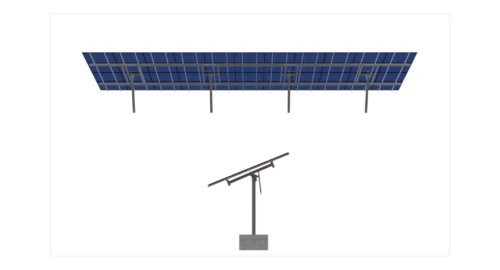

See 3D Model Here
Sagamore Golf Club 4×11 – V1Jb
$17,912.95
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 45 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3086.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-SD-72-L-4HX11W-KH0B |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.64 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 48.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1223.44 |
| ARRAY WIDTH | 80.67 |
| ARRAY HEIGHT | 15.17 |
| RAIL LENGTH | 182.00 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 15.21 |
| PROJECTED PANEL HEIGHT | 11.15 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SAGAMORE, GOLF, CLUB, 4X11, -, V1JB |
| SITE ADDRESS | 181, POST, RD, NORTH, HAMPTON, NH, 03862, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 17059.95 |
| TOTAL WEIGHT | 3086.92 |
| TOTAL PALLETS | 4.00 |
