Schwanke-50 degrees-JB

$5,508.44

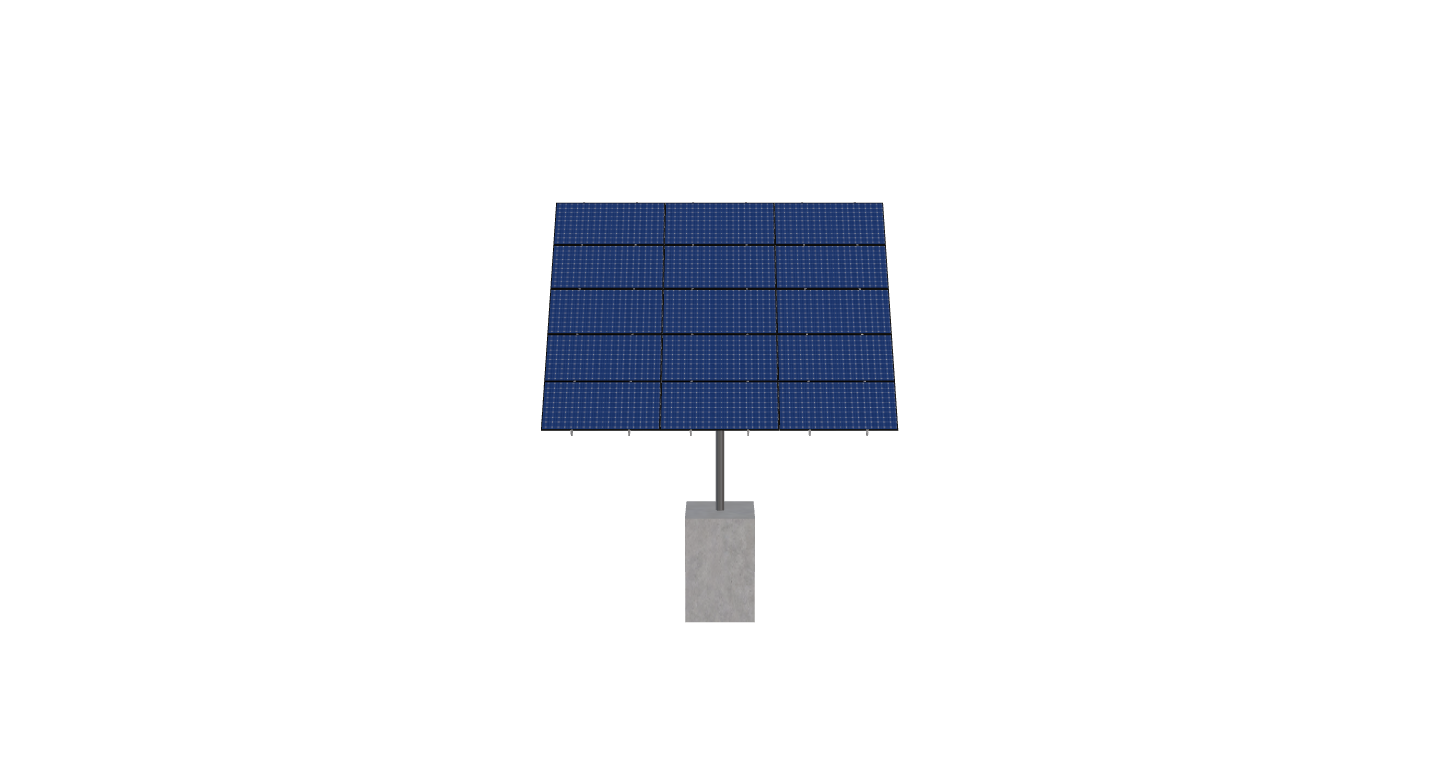

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 42 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-84-L-5Hx3W-STRUTS-L5K9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 42 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1121.1299999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-84-L-5HX3W-STRUTS-L5K9

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.78

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

258.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

389.58

ARRAY WIDTH

22.00

ARRAY HEIGHT

17.71

RAIL LENGTH

212.50

MODULE LENGTH

87.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

19.49

PROJECTED PANEL HEIGHT

13.41

WIND SPEED OVERRIDE

102.00

SNOW LOAD OVERRIDE

61.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

PROJECT ID

SCHWANKE-50, DEGREES-JB

SITE ADDRESS

5726, HARNESS, HOOK, LN, CHITTENANGO, NY, 13037, USA

MODULE WIDTH

42.00

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

5508.44

TOTAL WEIGHT

1121.13

TOTAL PALLETS

1.00
