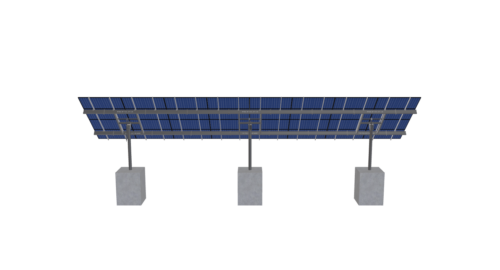

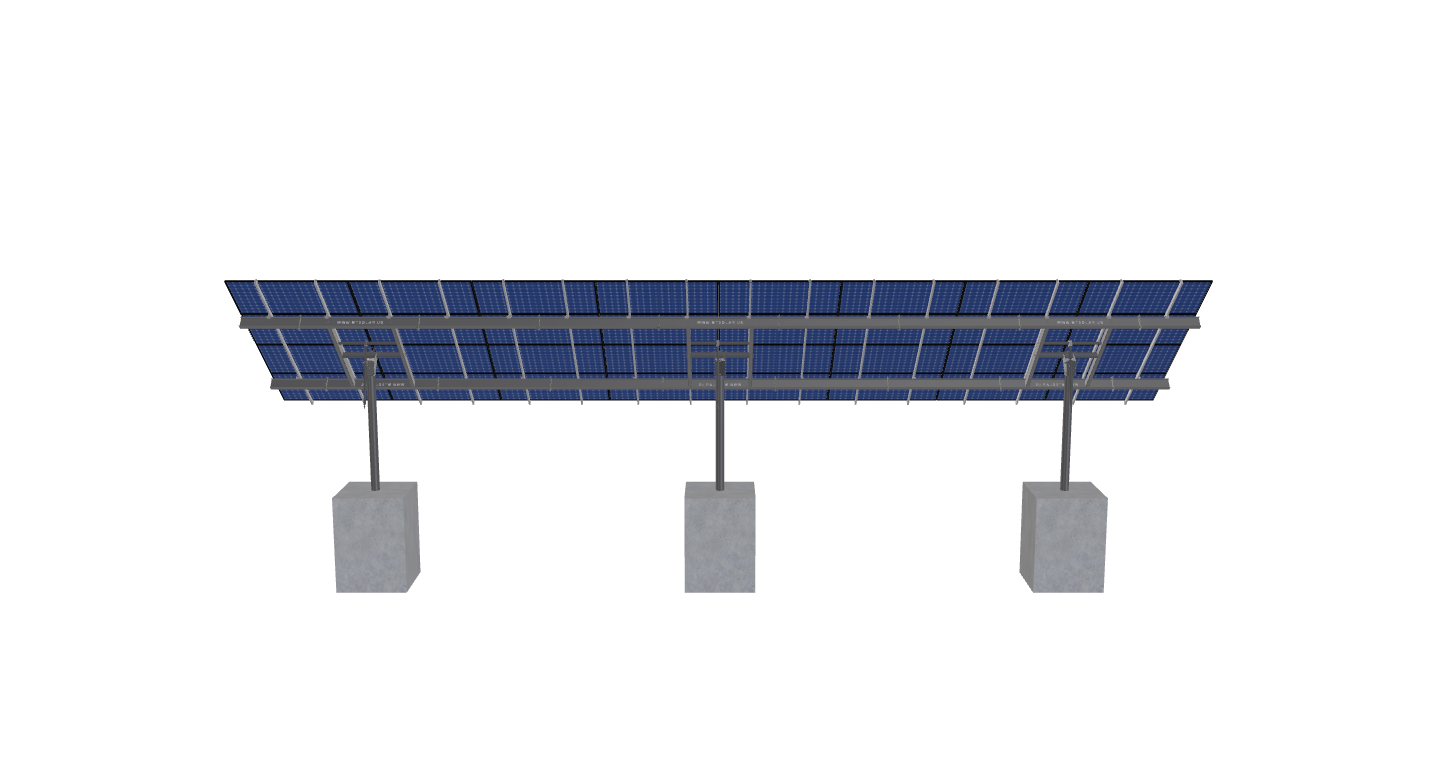

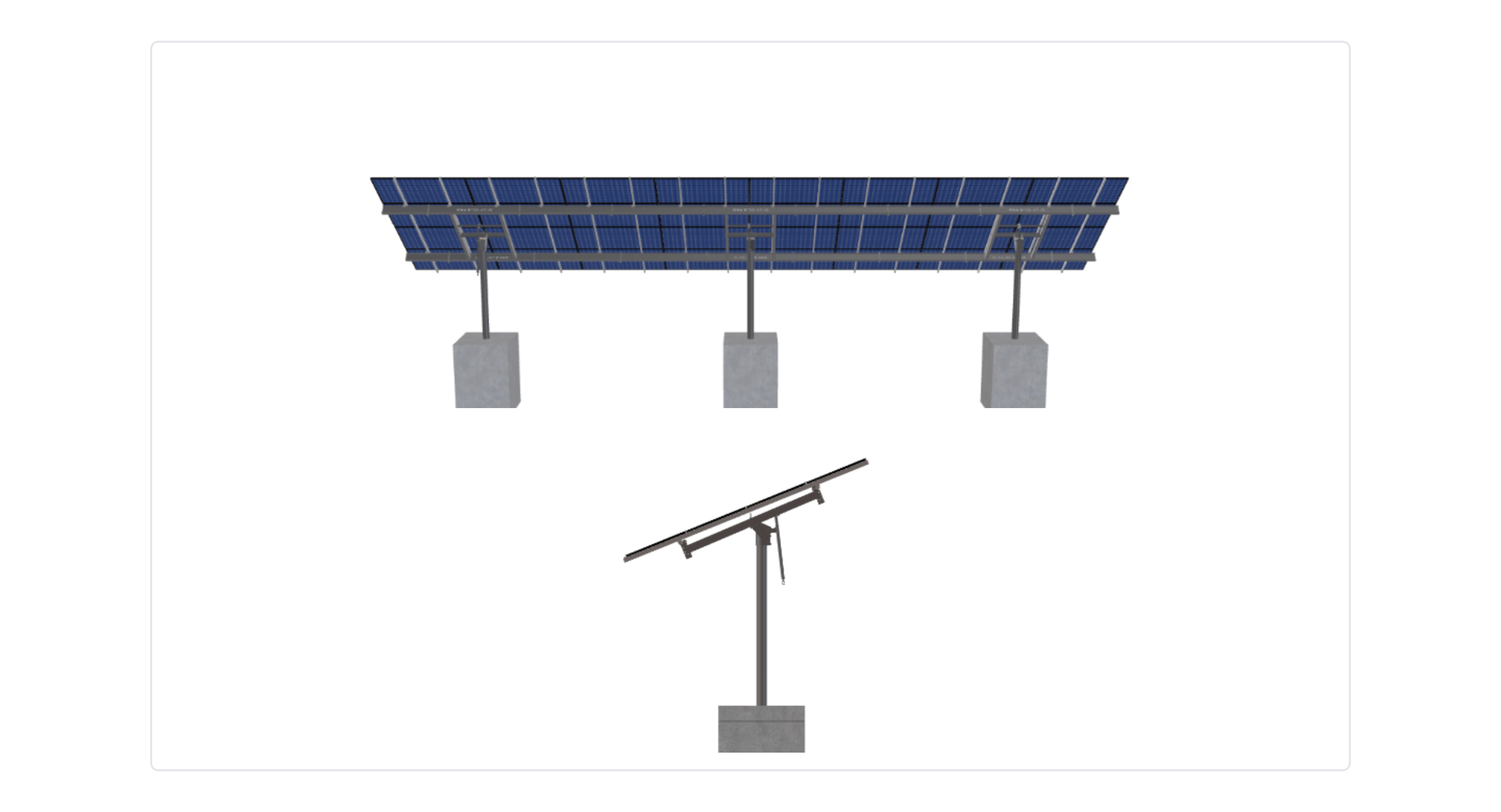

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Shell Lake Final 30deg – V1Jb
$15,157.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2703.41 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-45-L-4HX8W-STRUTS-L87E |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.84 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 909.92 |
| ARRAY WIDTH | 60.46 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 13.62 |
| PROJECTED PANEL HEIGHT | 9.57 |
| PROJECT ID | SHELL, LAKE, FINAL, 30DEG, -, V1JB |
| SITE ADDRESS | 1603, S, LAKE, DR, SHELL, LAKE, WI, 54871, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 14435.60 |
| TOTAL WEIGHT | 2703.41 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/e303976c-5337-47fc-948e-72b3790005d4.pdf |
|
| ID | 6889.00 |
| 3D Solar link |
