Shellenberger Cabin – TOP16 – V1Jb

$9,056.68

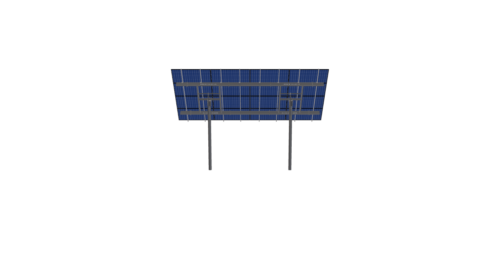

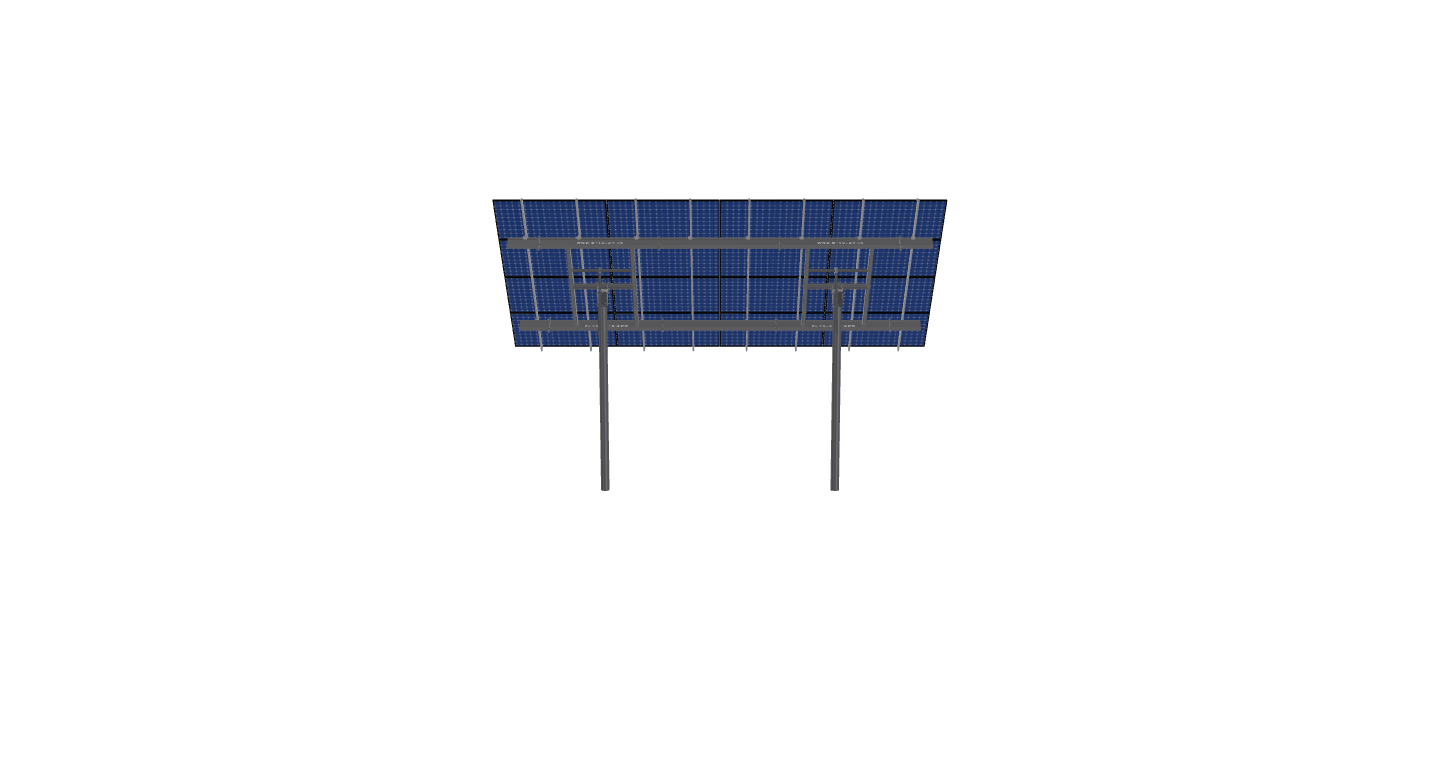

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-15-10TOP-XD-24-L-4Hx4W-2IDA Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1659.98 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-10TOP-XD-24-L-4HX4W-2IDA

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

13.30

WING SPAN

24.00

MAX FOUNDATION DEPTH

9.75

TILT ANGLE

50.00

CANTILEVER

318.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

387.33

ARRAY WIDTH

28.00

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

83.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

26.50

GROUND TO TOP

18.53

PROJECTED PANEL HEIGHT

10.47

WIND SPEED OVERRIDE

160.00

SNOW LOAD OVERRIDE

150.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

SHELLENBERGER, CABIN, -, TOP16, -, V1JB

SITE ADDRESS

4182, WY-70, ENCAMPMENT, WY, 82325, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

9056.68

TOTAL WEIGHT

1659.98

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/1a5970f6-b8eb-41c4-b0dc-0d722ef3e3fe.pdf

ID

7458.00
