This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.76 inches by 44.72 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

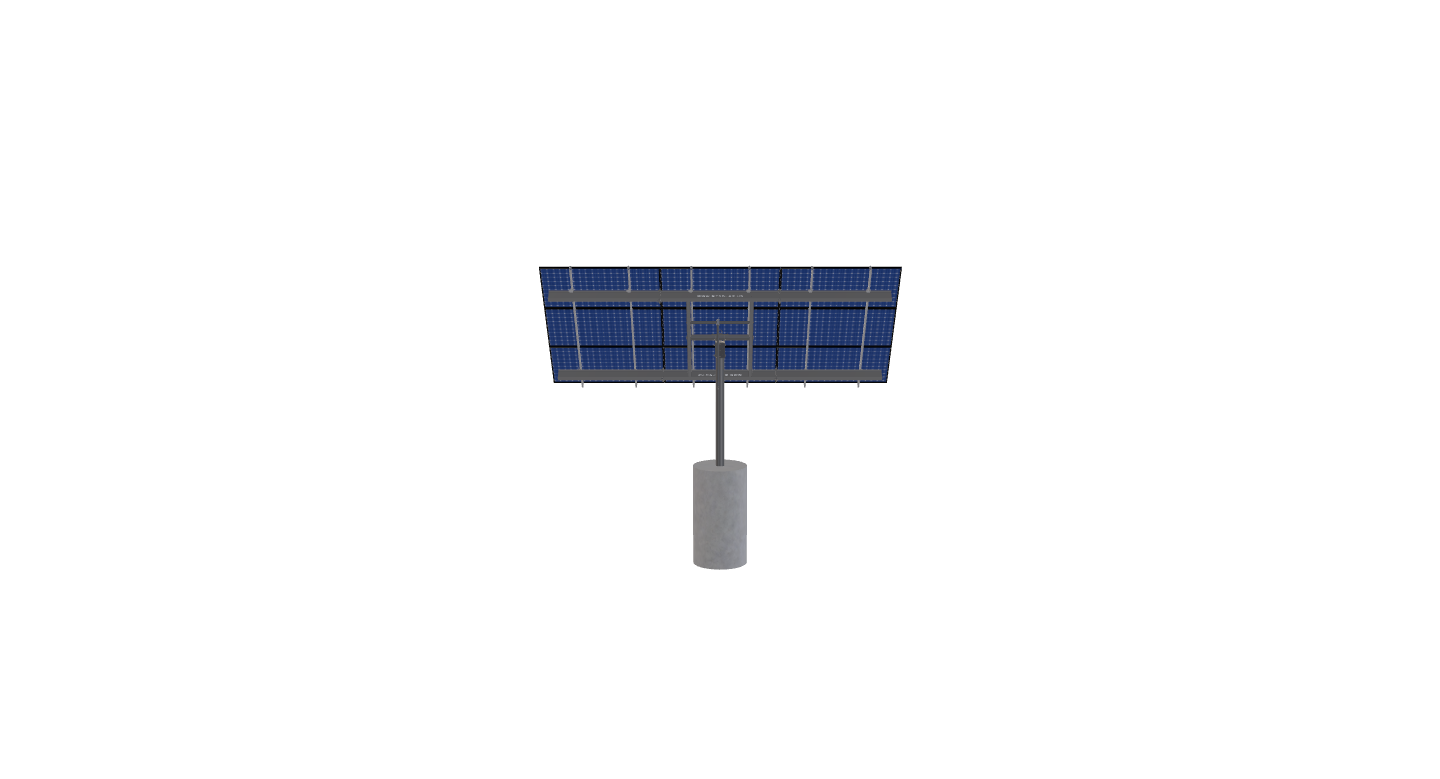

See 3D Model Here
Siemonsma-RevA-JB
$3,968.79
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.76 inches by 44.72 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

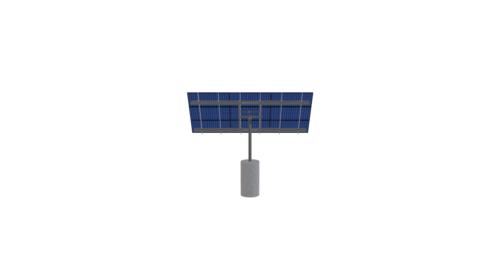

See 3D Model Here
Additional information
| Weight | 733.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-84-L-3HX3W-AA30 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.33 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 256.51 |
| ARRAY WIDTH | 22.69 |
| ARRAY HEIGHT | 11.30 |
| RAIL LENGTH | 135.66 |
| MODULE LENGTH | 89.76 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 12.61 |
| PROJECTED PANEL HEIGHT | 8.56 |
| PROJECT ID | SIEMONSMA-REVA-JB |
| SITE ADDRESS | SIDNEY, PARK, RD, CUSTER, SD, 57730, USA |
| MODULE WIDTH | 44.72 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SANDY, GRAVEL |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3968.79 |
| TOTAL WEIGHT | 733.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/8541b1b2-e7c9-4240-9d1a-4e243362a036.pdf |
|
| ID | 4790.00 |
| 3D Solar link |
