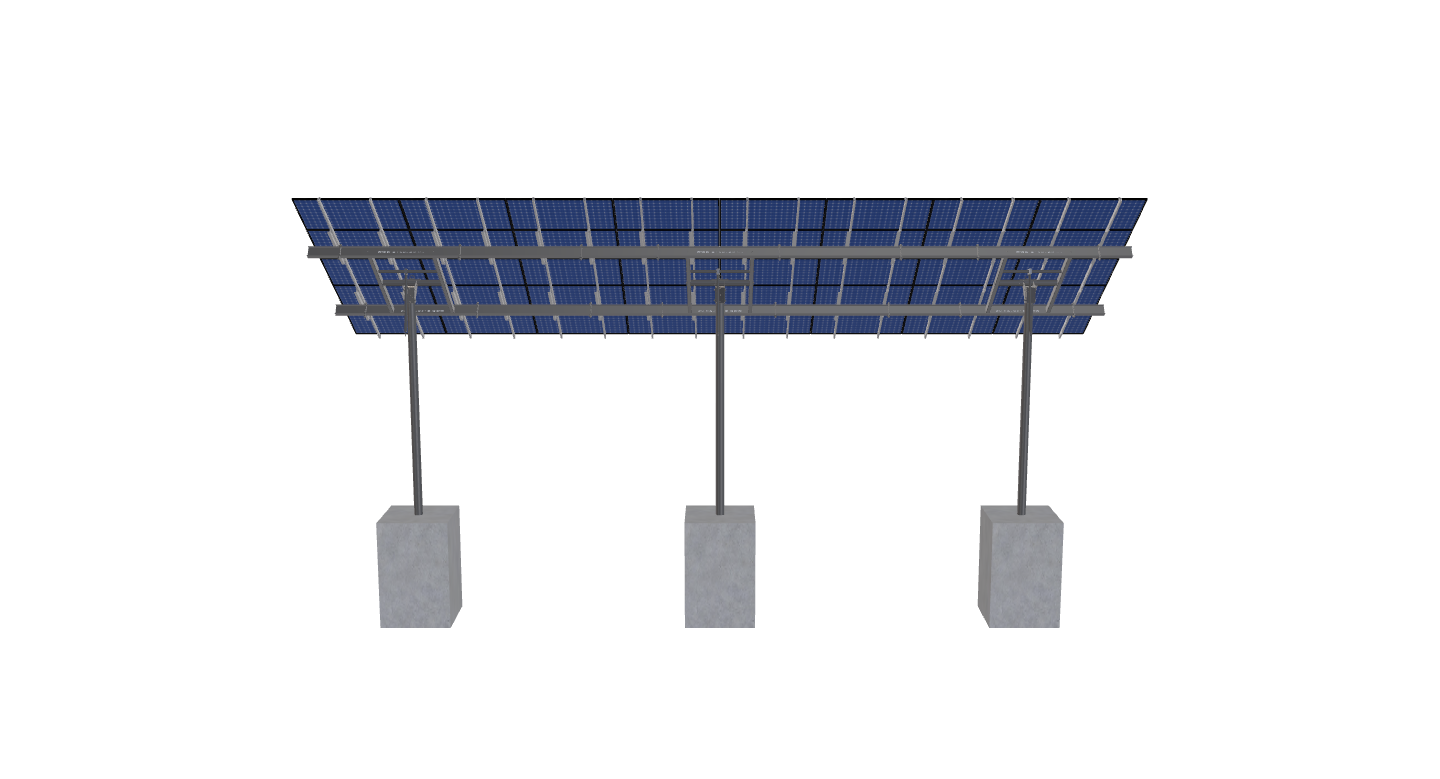

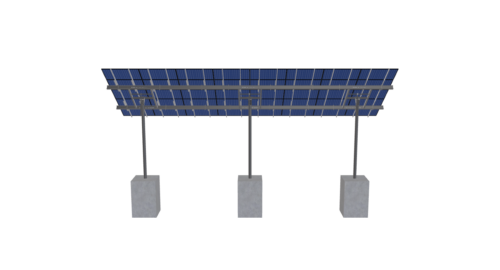

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 42.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Southwest Eye Consultants – V2Jb
$17,626.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 42.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3367.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-24-L-5HX8W-B2AI |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 15.15 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 918.27 |
| ARRAY WIDTH | 51.13 |
| ARRAY HEIGHT | 17.96 |
| RAIL LENGTH | 215.50 |
| MODULE LENGTH | 75.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 20.24 |
| PROJECTED PANEL HEIGHT | 10.18 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | SOUTHWEST, EYE, CONSULTANTS, -, V2JB |
| SITE ADDRESS | 1266, ESCALANTE, DR, DURANGO, CO, 81303, USA |
| MODULE WIDTH | 42.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16787.19 |
| TOTAL WEIGHT | 3367.37 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/0674578b-bc97-42ad-afed-10ca3f32835c.pdf |
|
| ID | 7816.00 |
| 3D Solar link |
