Taco Shop Carport

$9,457.66

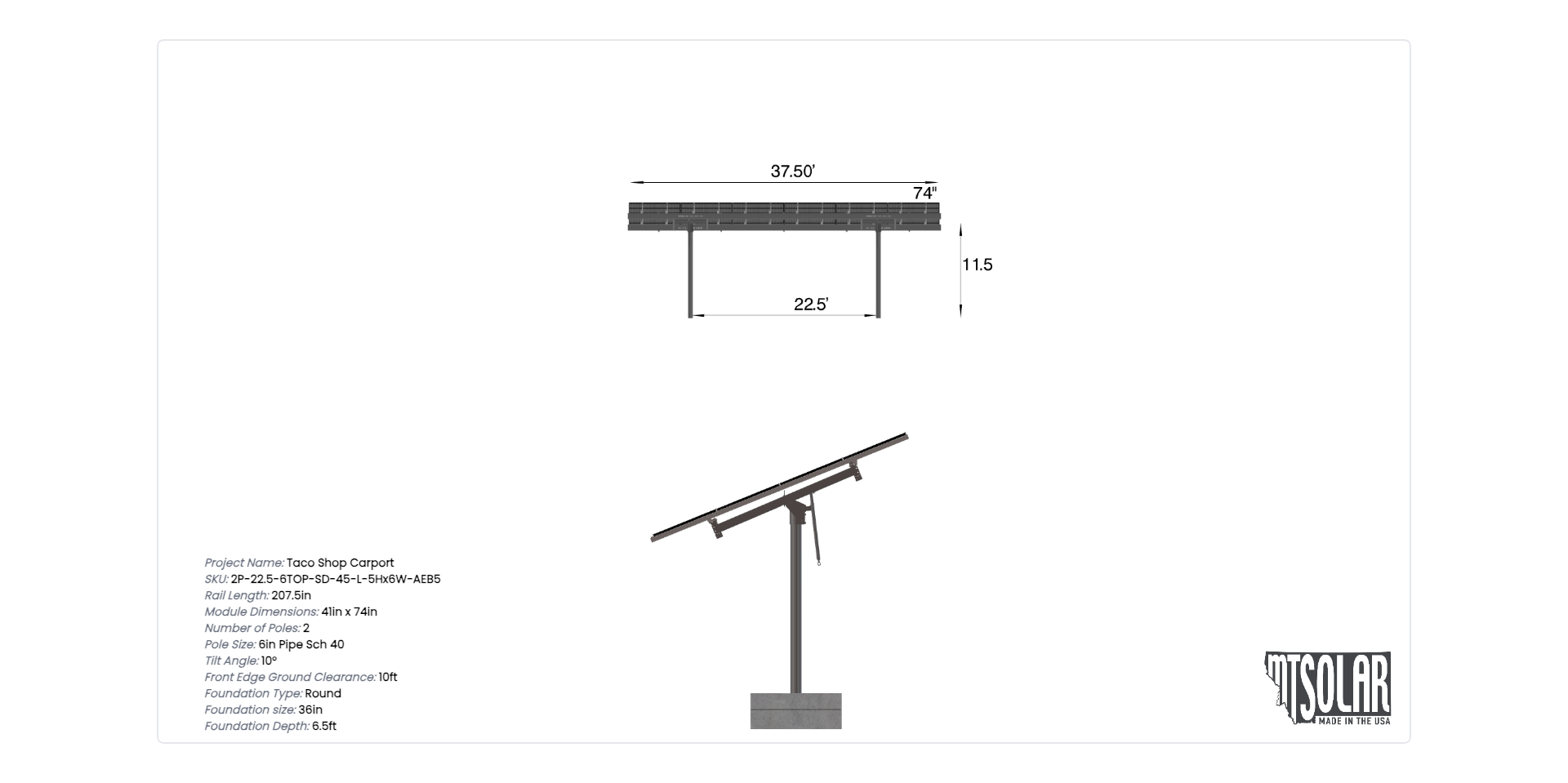

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $9,457.66
Total options:
Order total:
SKU: 2P-22.5-6TOP-SD-45-L-5Hx6W-AEB5 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1871.6399999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-SD-45-L-5HX6W-AEB5

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

11.50

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

10.00

CANTILEVER

450.00

GROUND CLEARANCE

10.00

NO POLES

2.00

MODULE AREA

648.44

ARRAY WIDTH

37.50

ARRAY HEIGHT

17.29

RAIL LENGTH

207.50

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

37.50

GROUND TO TOP

12.98

PROJECTED PANEL HEIGHT

2.97

PROJECT ID

TACO, SHOP, CARPORT

SITE ADDRESS

RIVERSIDE, CA, USA

MODULE WIDTH

41.00

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

9457.66

TOTAL WEIGHT

1871.64

TOTAL PALLETS

2.00
