This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 11 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

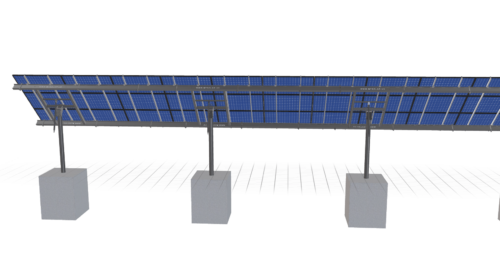

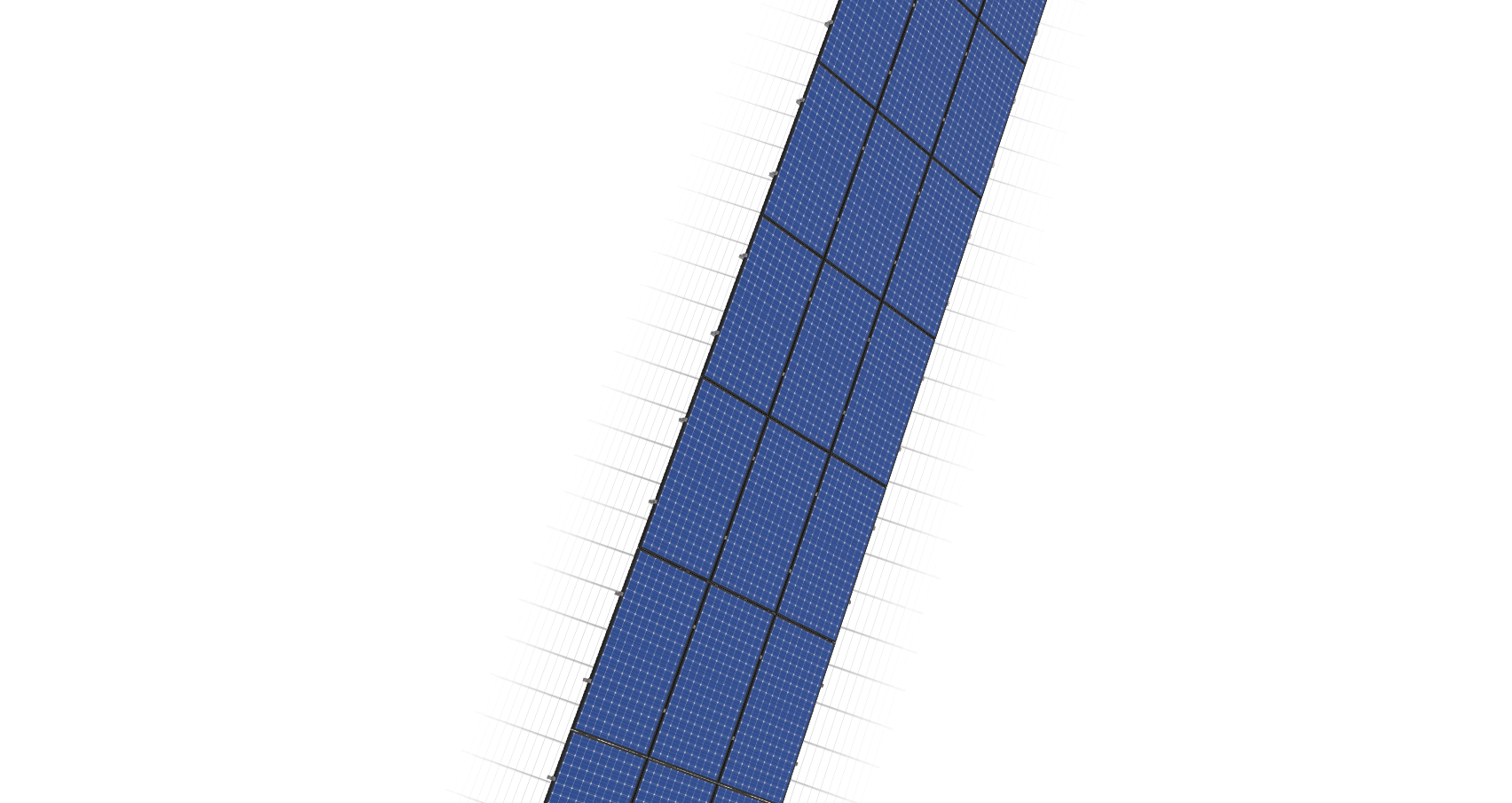

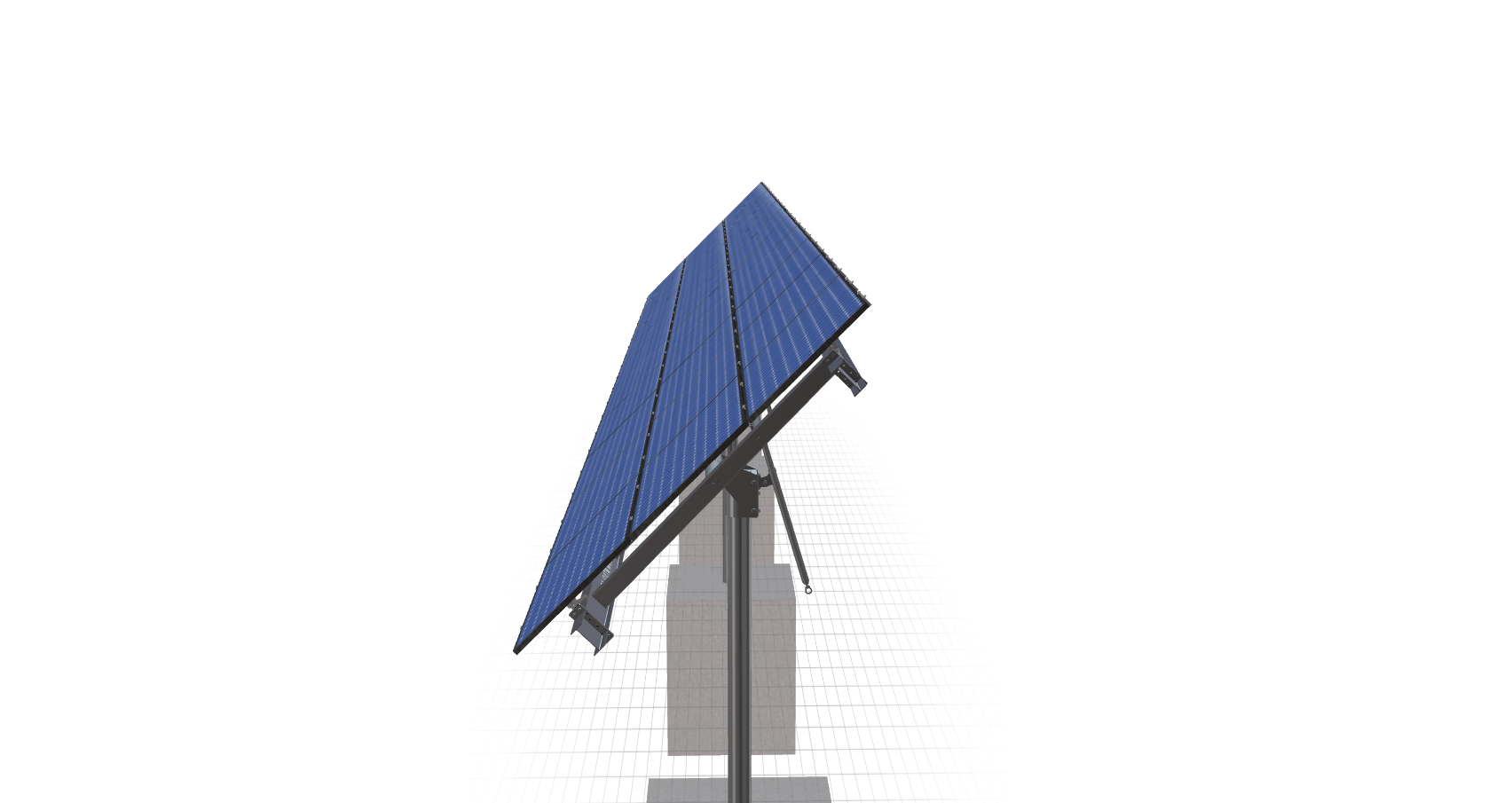

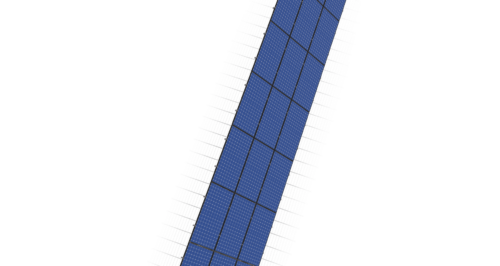

See 3D Model Here
Tester_Rev1
$17,635.63
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 11 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3261.34 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-12-L-3HX11W-D5CD |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.68 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 715.00 |
| ARRAY WIDTH | 68.75 |
| ARRAY HEIGHT | 10.40 |
| RAIL LENGTH | 124.80 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 12.31 |
| PROJECTED PANEL HEIGHT | 7.27 |
| PROJECT ID | TESTER, REV1 |
| SITE ADDRESS | 5338, S, ASPEN, HOLW, RD, KAMAS, UT, 84036, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 146.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 17635.63 |
| TOTAL WEIGHT | 3261.34 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/2f9730d2-e555-4d85-8e89-5bc00010fa08.pdf |
|
| ID | 420.00 |
| 3D Solar link |
