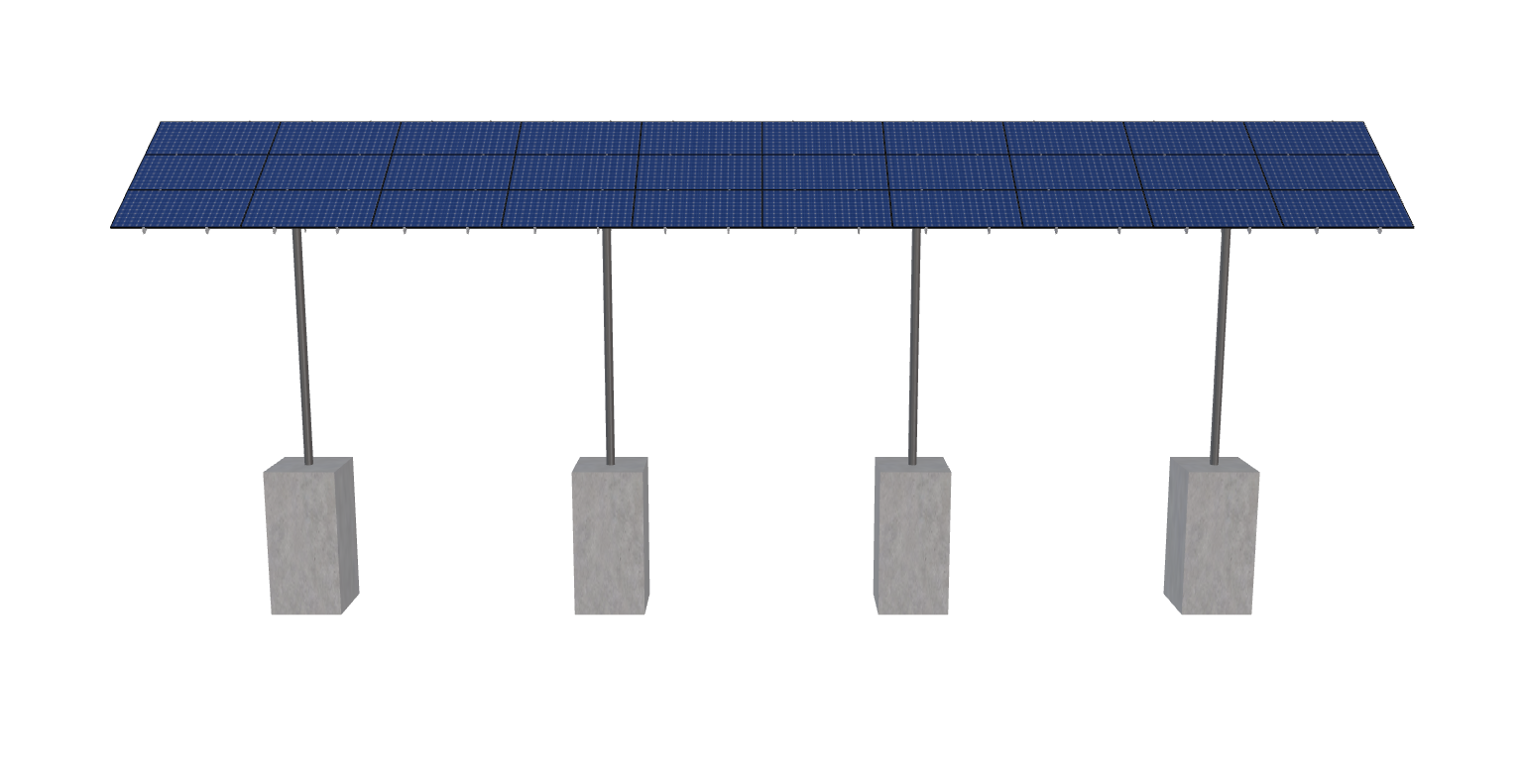

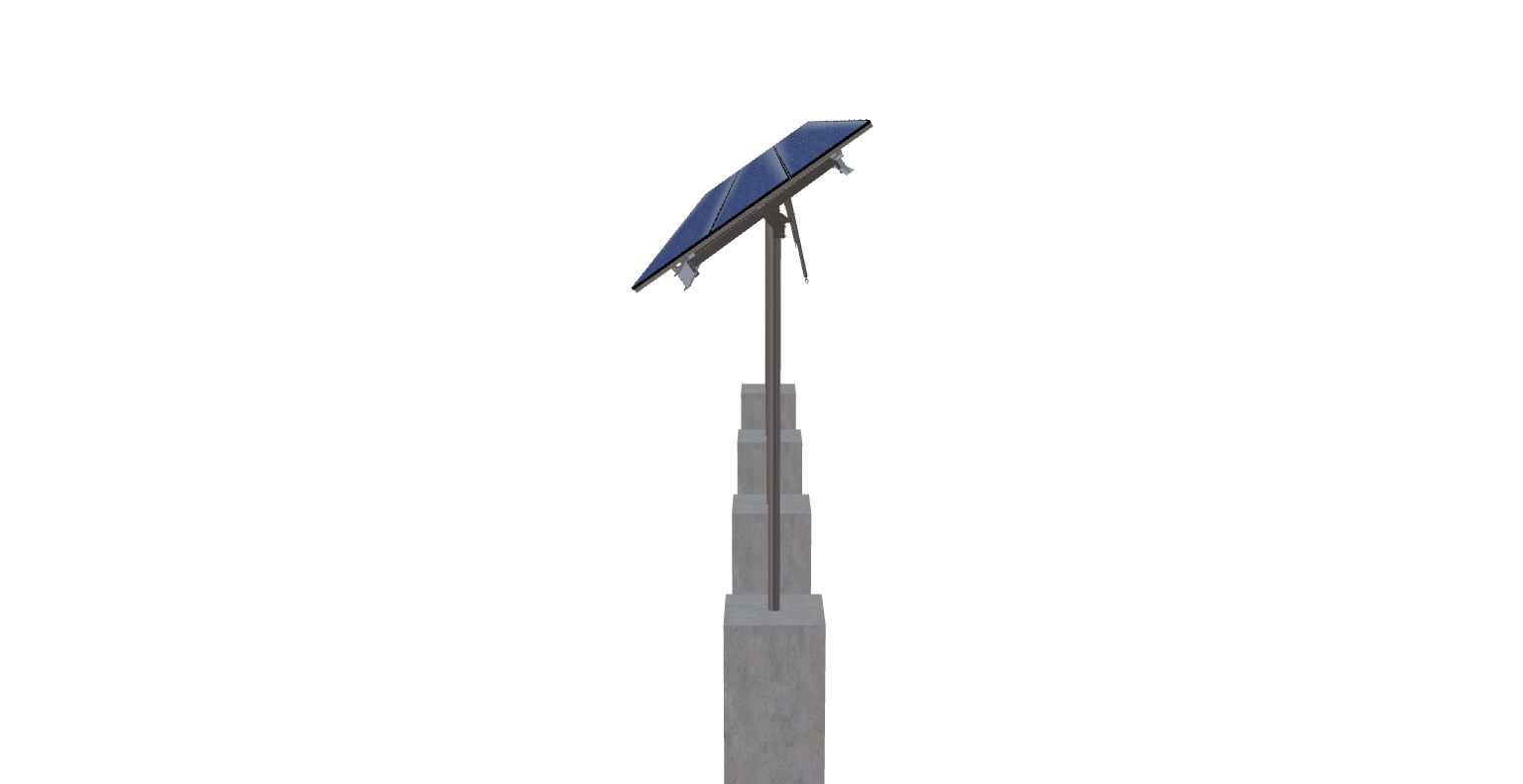

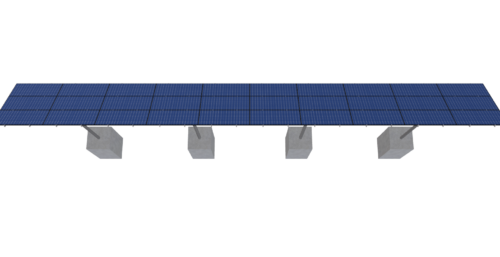

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.8 inches by 44.6 inches and an array layout of 10 wide by 3 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
UI PBI RFP
$21,037.96
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.8 inches by 44.6 inches and an array layout of 10 wide by 3 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4036.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-XD-72-L-3HX10W-FJ54 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 18.23 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 4.00 |
| MODULE AREA | 890.73 |
| ARRAY WIDTH | 79.00 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.30 |
| MODULE LENGTH | 93.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 21.43 |
| PROJECTED PANEL HEIGHT | 6.40 |
| PROJECT ID | UI, PBI, RFP |
| SITE ADDRESS | 5R6P+54, BRIDGEPORT, CT, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 119.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 21037.96 |
| TOTAL WEIGHT | 4036.20 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/d1f92b40-5053-4578-8f55-3be58461fcad.pdf |
|
| ID | 6380.00 |
| 3D Solar link |
