Wagner – TOP15 – 87×41 No Rails

$4,136.03

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.3 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
A chain hoist and lift bracket are needed for each pole (not included).

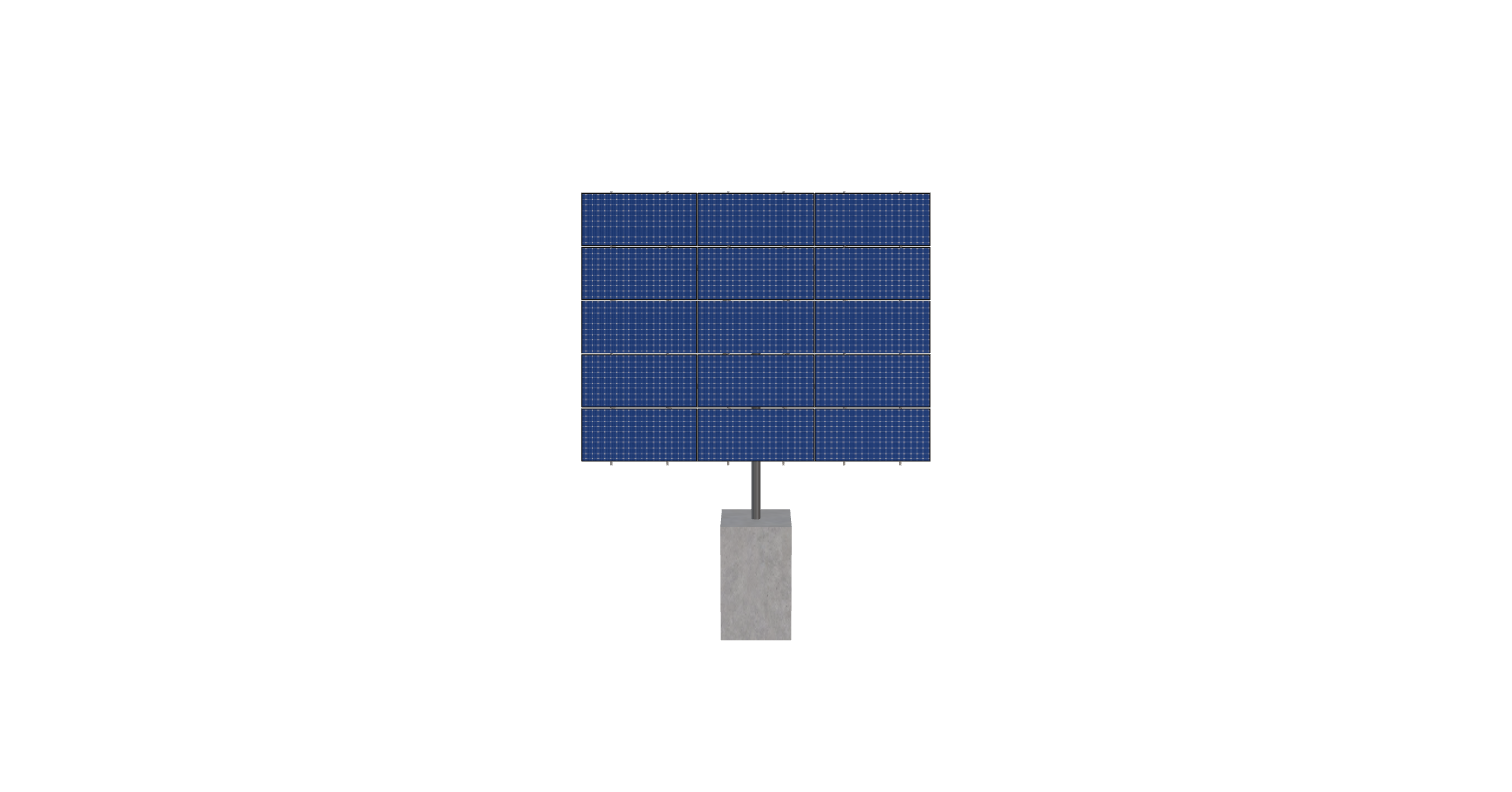

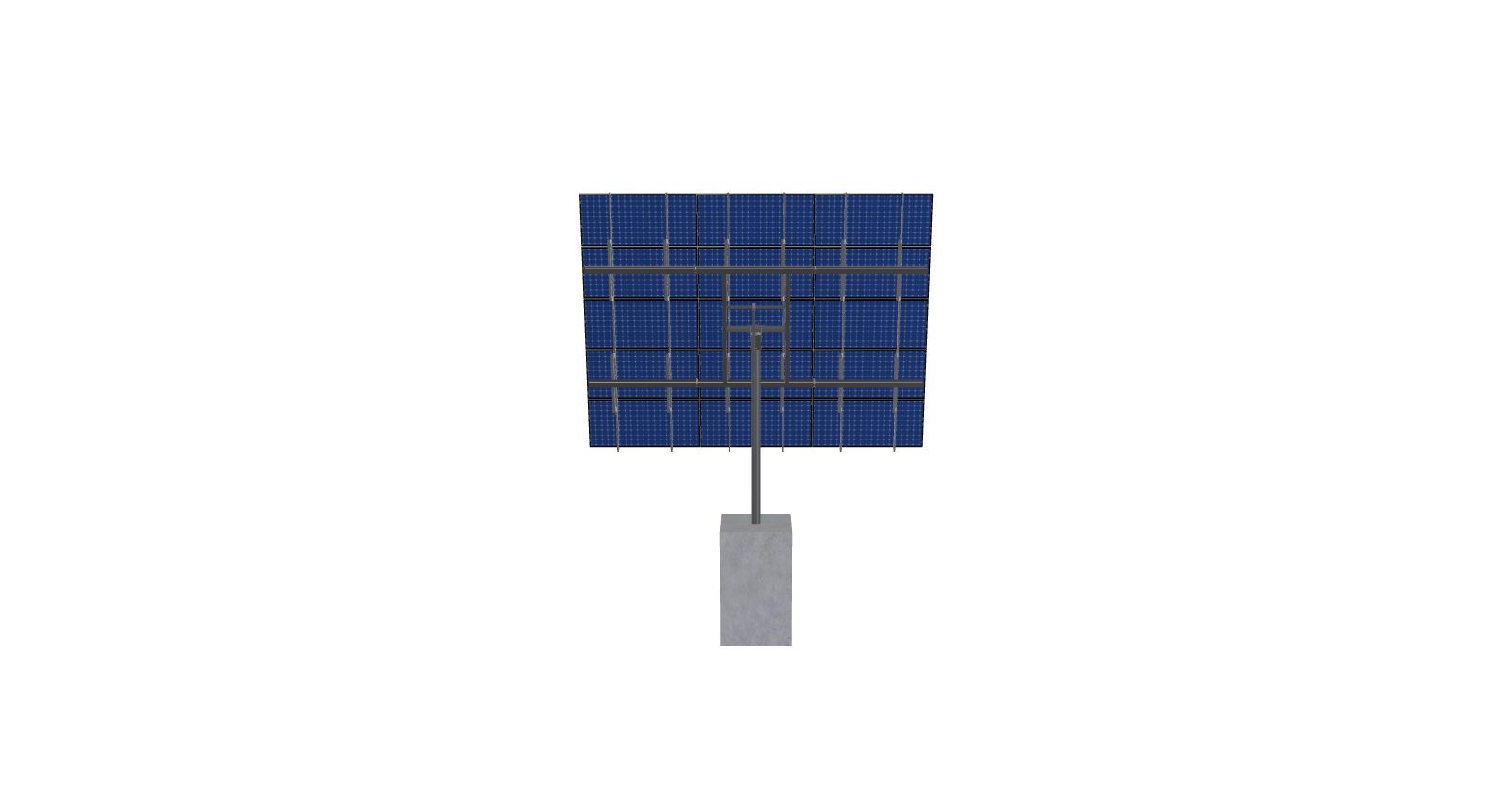

See 3D Model Here

SKU: 1P-0-10TOP-SD-84-L-5Hx3W-K7F4 - No Rails Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.3 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1006.8199999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-10TOP-SD-84-L-5HX3W-K7F4

DUTY SIZE

SD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.54

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

80.00

CANTILEVER

258.00

GROUND CLEARANCE

4.00

NO POLES

1.00

MODULE AREA

382.63

ARRAY WIDTH

22.07

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

87.30

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

20.97

PROJECTED PANEL HEIGHT

16.86

PROJECT ID

WAGNER, -, TOP15, -, 87X41

SITE ADDRESS

DOLLAR, BAY, MI, 49922, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

96.00

SNOW LOAD OVERRIDE

91.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

5036.03

TOTAL WEIGHT

1006.82

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/bbe5940f-97c9-411e-a3bf-f22105076f50.pdf

ID

7574.00
