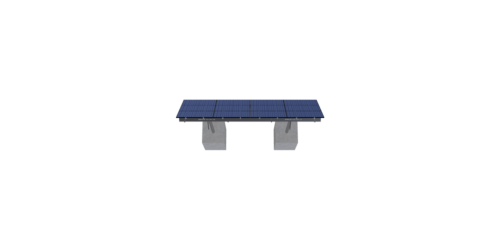

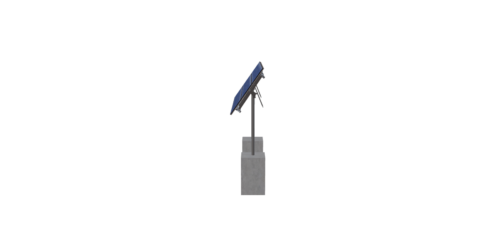

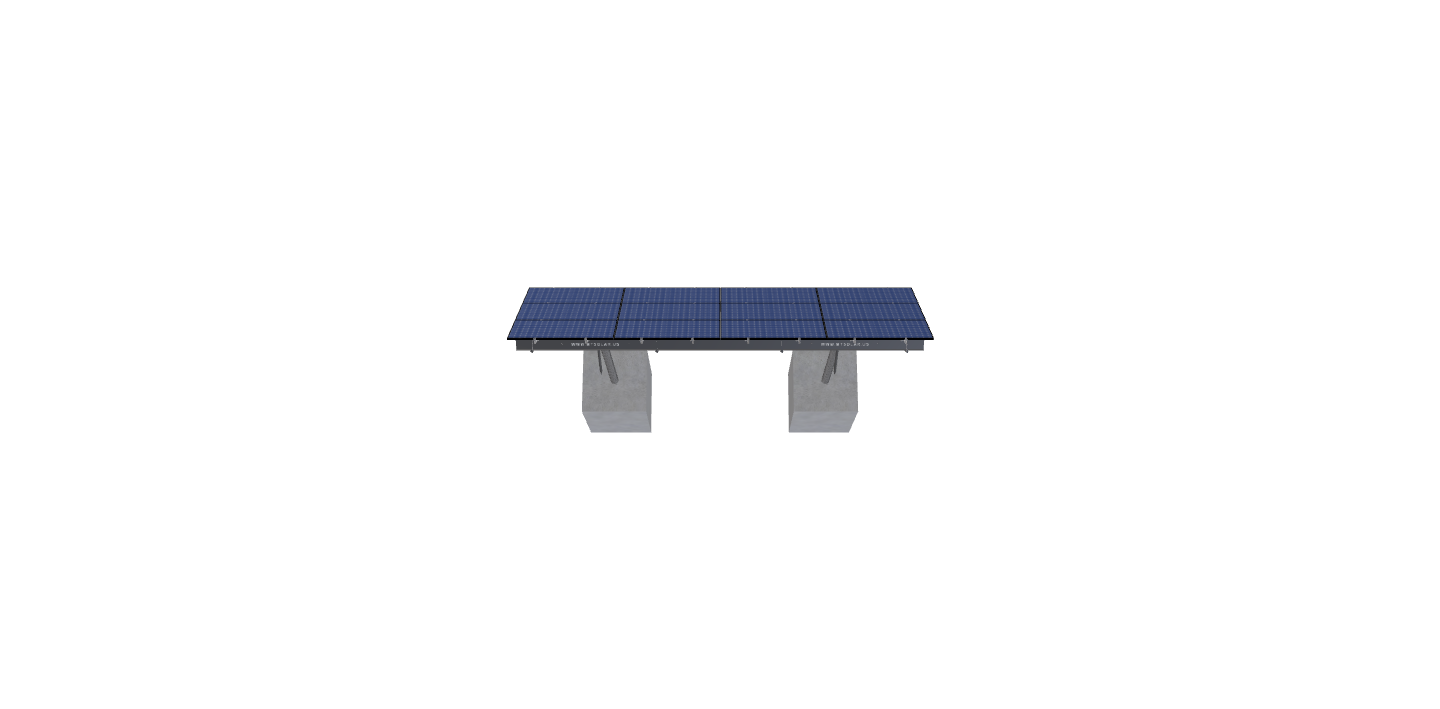

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.3 inches by 40.8 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Wolf Creek Ski HD – 3×4 – V1 Jb
$8,105.15
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.3 inches by 40.8 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

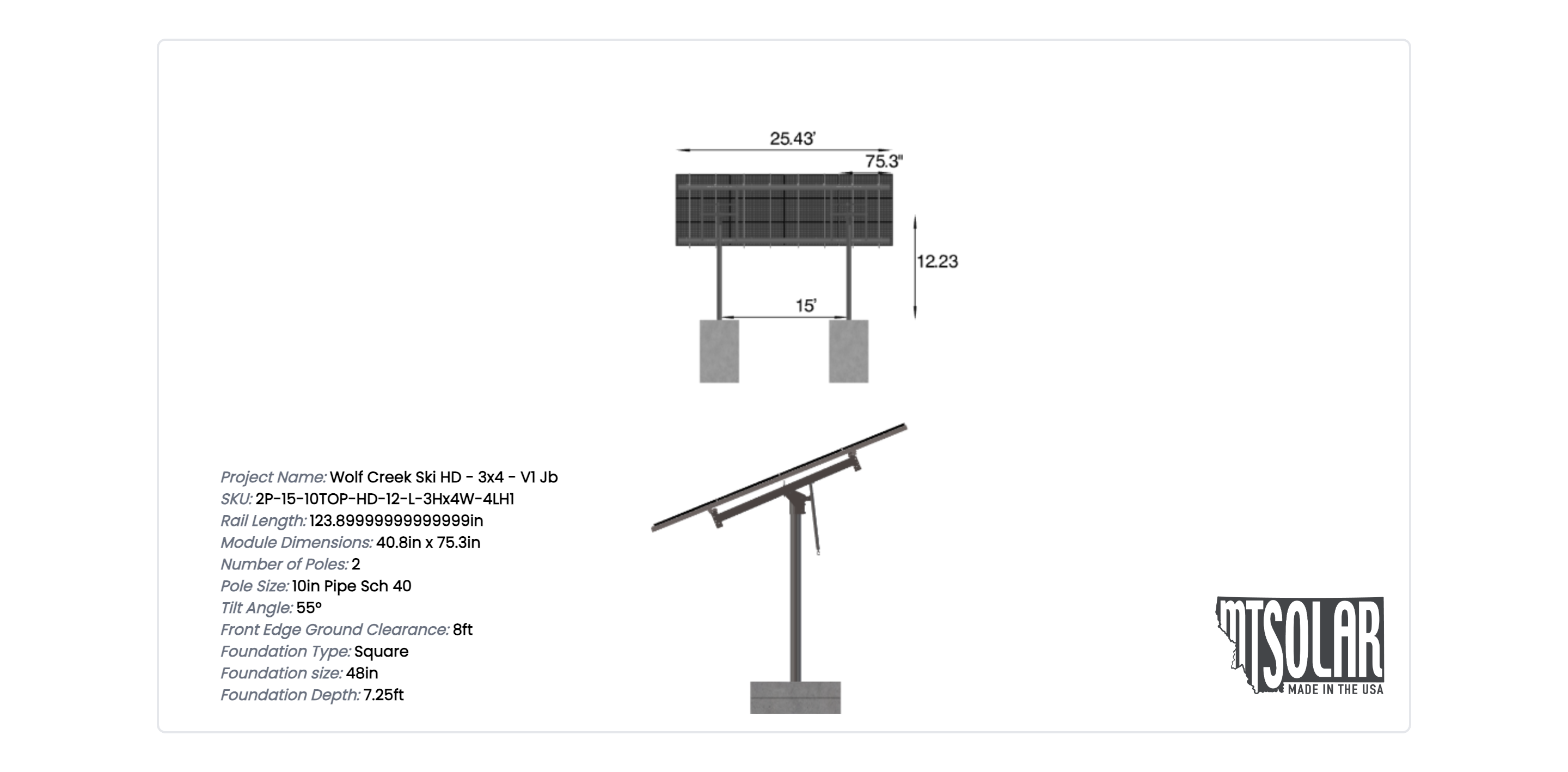

Additional information
| Weight | 1406.8200000000002 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-10TOP-HD-12-L-3HX4W-4LH1 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 12.23 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 262.60 |
| ARRAY WIDTH | 25.43 |
| ARRAY HEIGHT | 10.32 |
| RAIL LENGTH | 123.90 |
| MODULE LENGTH | 75.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 16.41 |
| PROJECTED PANEL HEIGHT | 8.36 |
| WIND SPEED OVERRIDE | 140.00 |
| SNOW LOAD OVERRIDE | 280.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WOLF, CREEK, SKI, HD, -, 3X4, -, V1, JB |
| SITE ADDRESS | 859MF63H+WH |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7719.19 |
| TOTAL WEIGHT | 1406.82 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c4da428a-b177-4551-91c0-f71813c119ce.pdf |
|
| ID | 7788.00 |
| 3D Solar link |
