Zero Point Energy-RevA-2-CU

$8,242.24

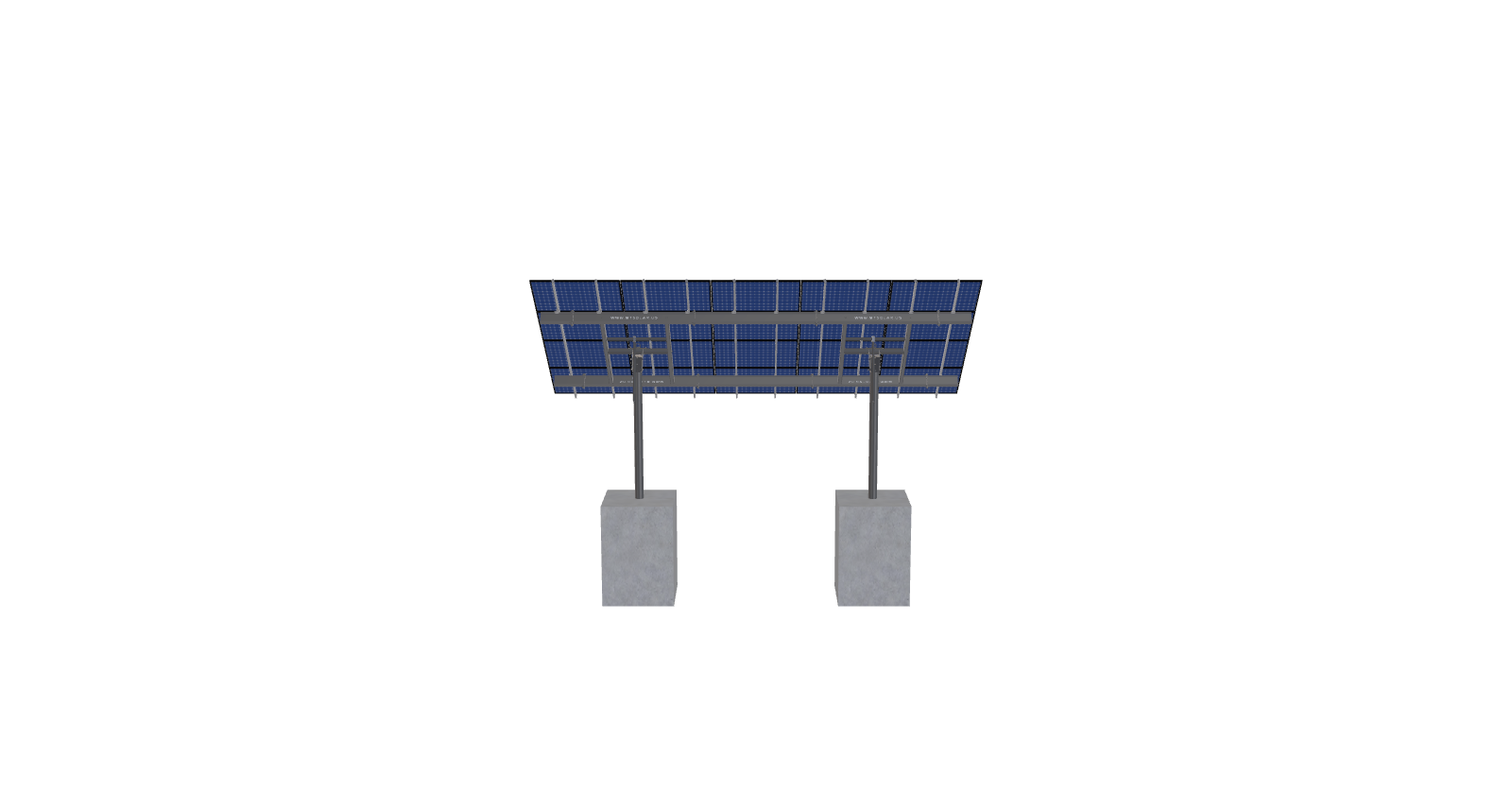

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 41 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-15-8TOP-HD-24-L-4Hx5W-FEFE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 41 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1483.24 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-8TOP-HD-24-L-4HX5W-FEFE

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

9.45

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

40.00

CANTILEVER

318.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

380.42

ARRAY WIDTH

27.50

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

65.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

26.50

GROUND TO TOP

13.84

PROJECTED PANEL HEIGHT

8.78

PROJECT ID

ZERO, POINT, ENERGY-REVA-2-CU

SITE ADDRESS

2500, UPPER, APEX, RD, CENTRAL, CITY, CO, 80427, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

155.00

SNOW LOAD OVERRIDE

100.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

8242.24

TOTAL WEIGHT

1483.24

TOTAL PALLETS

2.00
