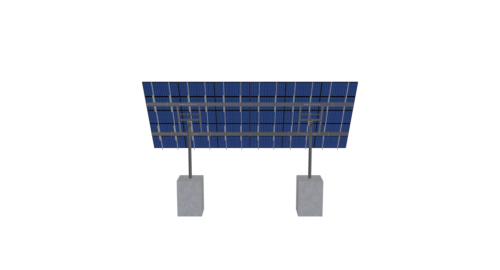

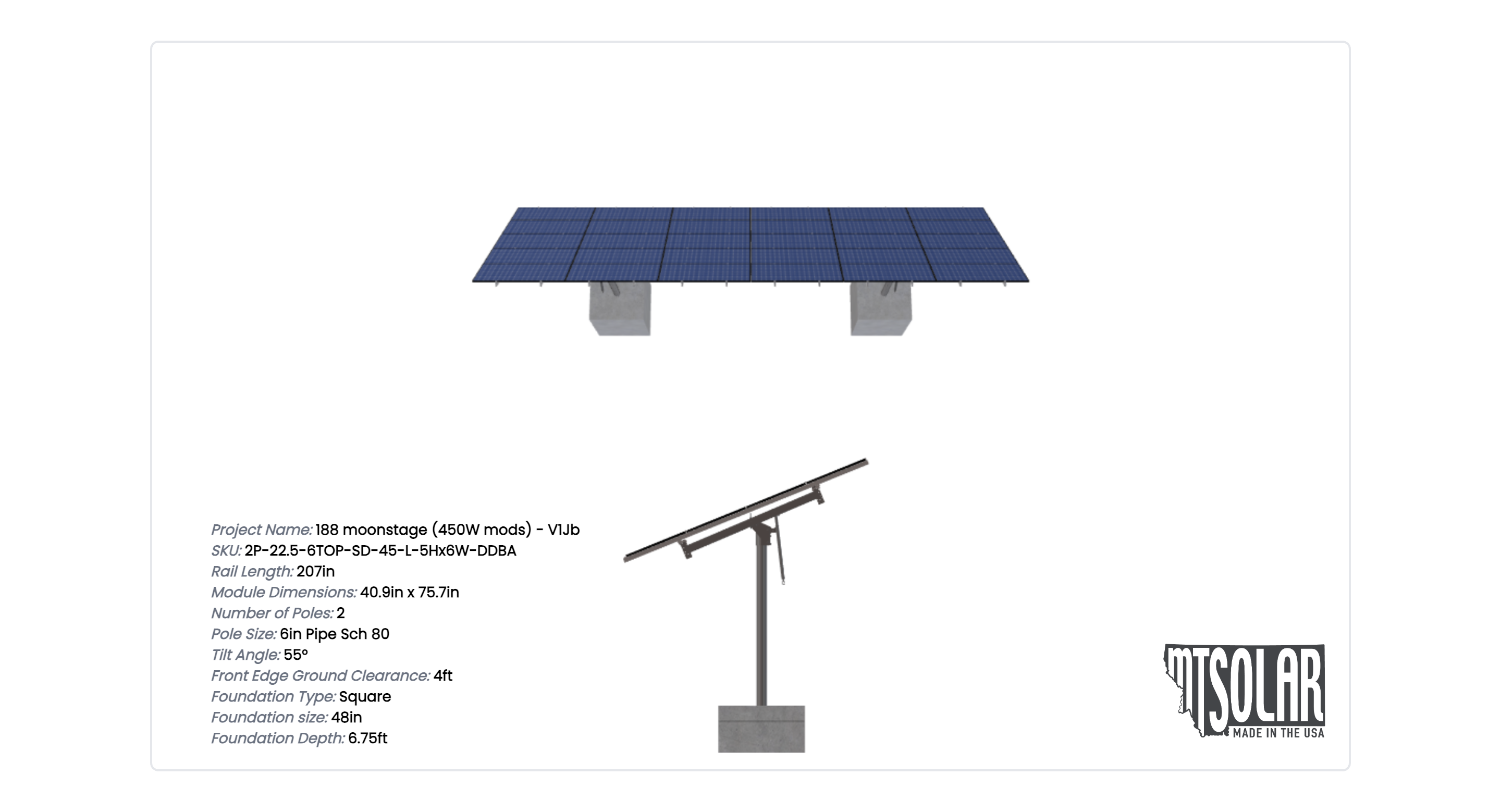

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
188 moonstage (450W mods) – V1Jb
$9,457.66
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1871.6399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-45-L-5HX6W-DDBA |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.07 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 661.54 |
| ARRAY WIDTH | 38.35 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 75.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 18.05 |
| PROJECTED PANEL HEIGHT | 13.96 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 68.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | CURRAN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | 188, MOONSTAGE, (450W, MODS), -, V1JB |
| SITE ADDRESS | 188, WHITEFISH, AVE, WHITEFISH, MT, 59937, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9457.66 |
| TOTAL WEIGHT | 1871.64 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/fdcf4d9d-9358-4a11-a60c-9d8bb7ca16d3.pdf |
|
| ID | 7955.00 |
| 3D Solar link |
