Ameer Hezam-cuV1

$5,270.08

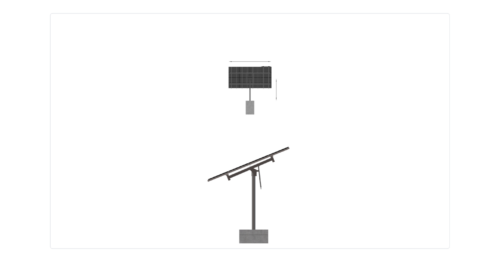

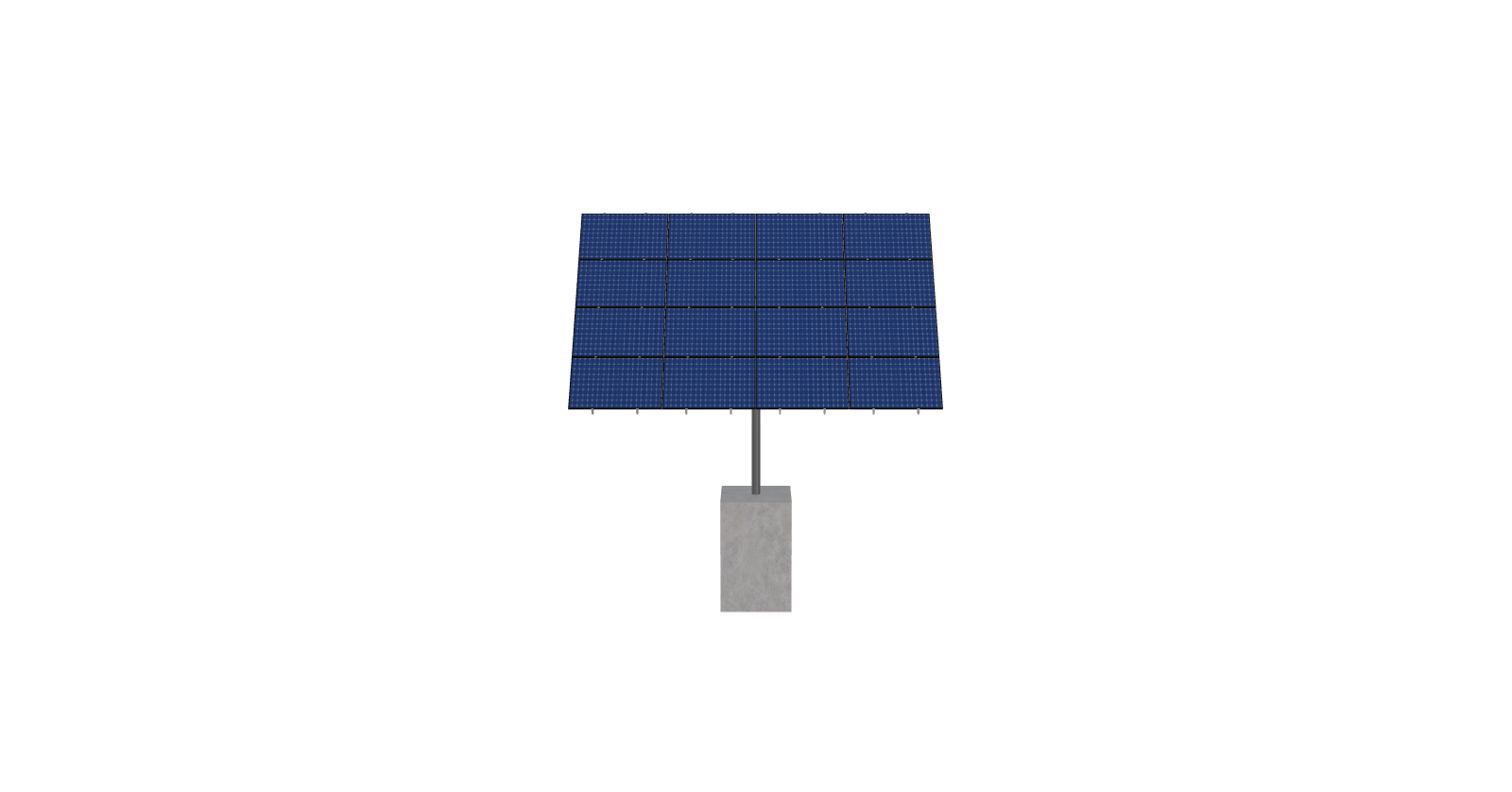

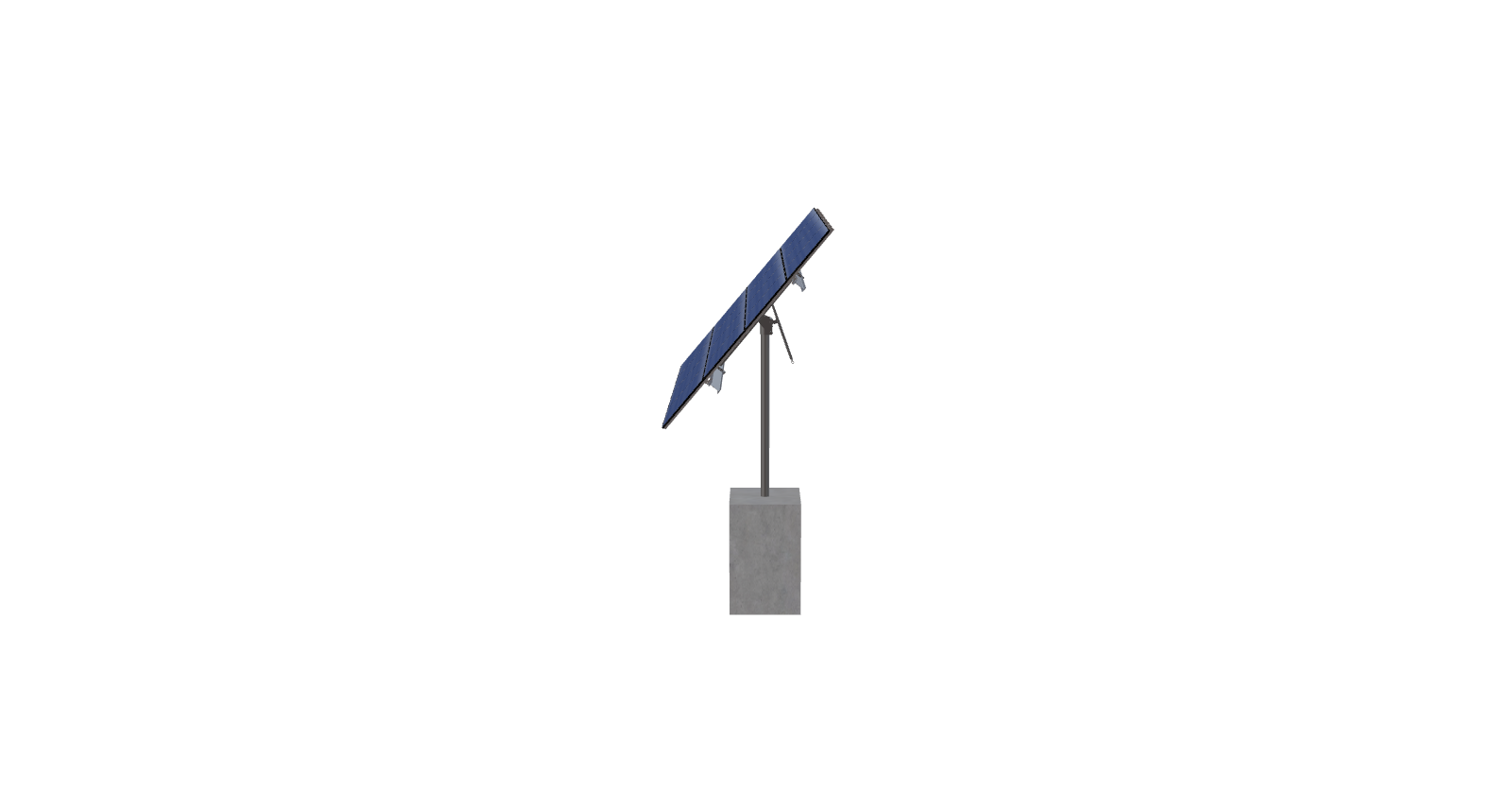

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 1P-0-8TOP-HD-84-L-4Hx4W-95H6 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 965.6899999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-84-L-4HX4W-95H6

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.76

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

50.00

CANTILEVER

258.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

344.76

ARRAY WIDTH

22.93

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

17.45

PROJECTED PANEL HEIGHT

11.39

PROJECT ID

AMEER, HEZAM-CUV1

SITE ADDRESS

180, LORRAINE, AVE, MT, VERNON, NY, 10553, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

II

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

116.00

SNOW LOAD OVERRIDE

25.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

5270.08

TOTAL WEIGHT

965.69

TOTAL PALLETS

1.00
