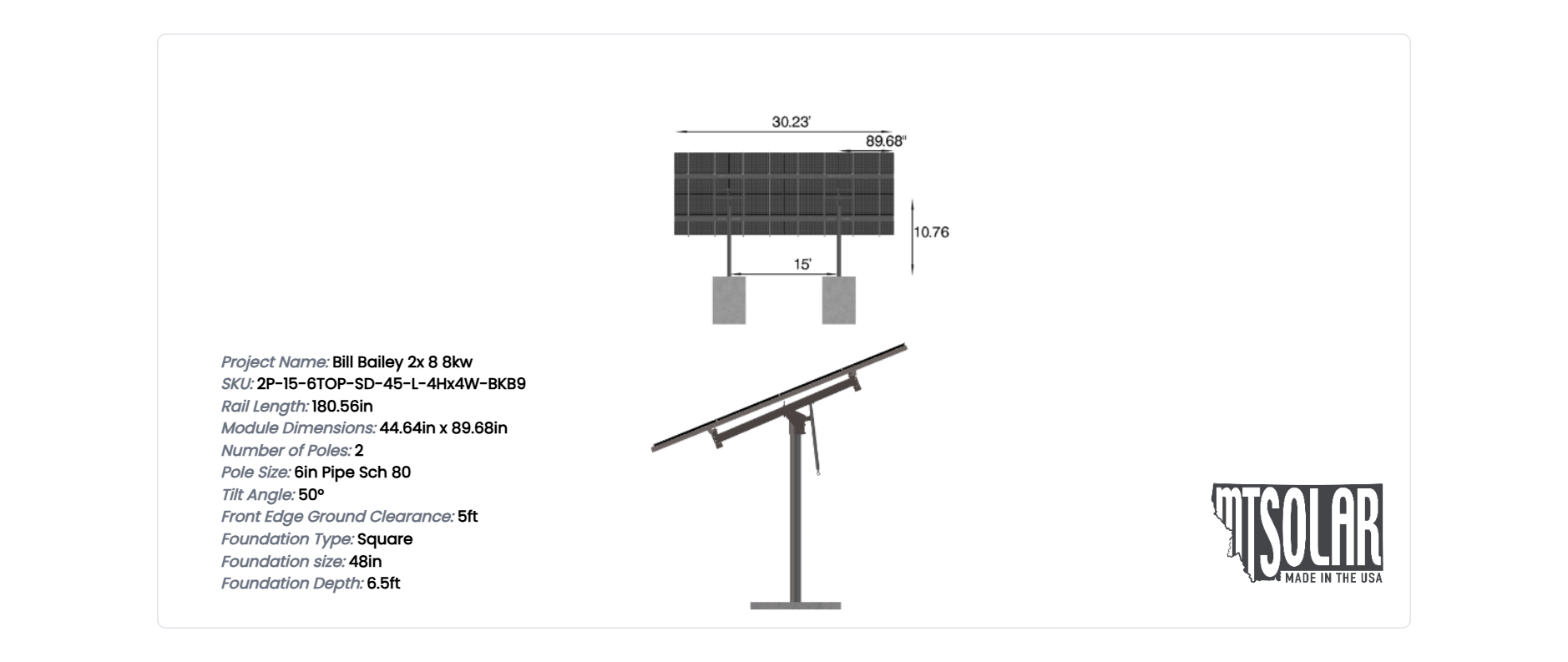

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Bill Bailey 2x 8 8kw
$7,392.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1279.02 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-45-L-4HX4W-BKB9 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 454.81 |
| ARRAY WIDTH | 30.23 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.56 |
| MODULE LENGTH | 89.68 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 16.53 |
| PROJECTED PANEL HEIGHT | 11.53 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ELIJAH, KNEELAND |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | BILL, BAILEY, 2X, 8, 8KW |
| SITE ADDRESS | 33430, WHITING, RD, BAYFIELD, WI, 54814, USA |
| MODULE INFO | AXITEC, BIPREMIUM |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 7392.41 |
| TOTAL WEIGHT | 1279.02 |
| TOTAL PALLETS | 2.00 |
