This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

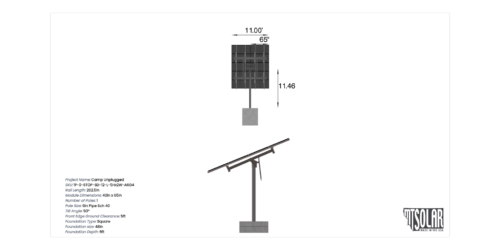

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-12-L-5Hx2W-A6G4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 655.88 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-12-L-5HX2W-A6G4

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.46

WING SPAN

12.00

MAX FOUNDATION DEPTH

6.00

TILT ANGLE

50.00

CANTILEVER

114.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

185.63

ARRAY WIDTH

11.00

ARRAY HEIGHT

16.88

RAIL LENGTH

202.50

MODULE LENGTH

65.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

9.50

GROUND TO TOP

17.85

PROJECTED PANEL HEIGHT

12.77

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

CAMP, UNPLUGGED

SITE ADDRESS

1325, STRAWBERRY, POINT, RD, ELKADER, IA, 52043, USA

MODULE WIDTH

40.00

NUMBER ROWS

5.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3535.82

TOTAL WEIGHT

655.88

TOTAL PALLETS

1.00
