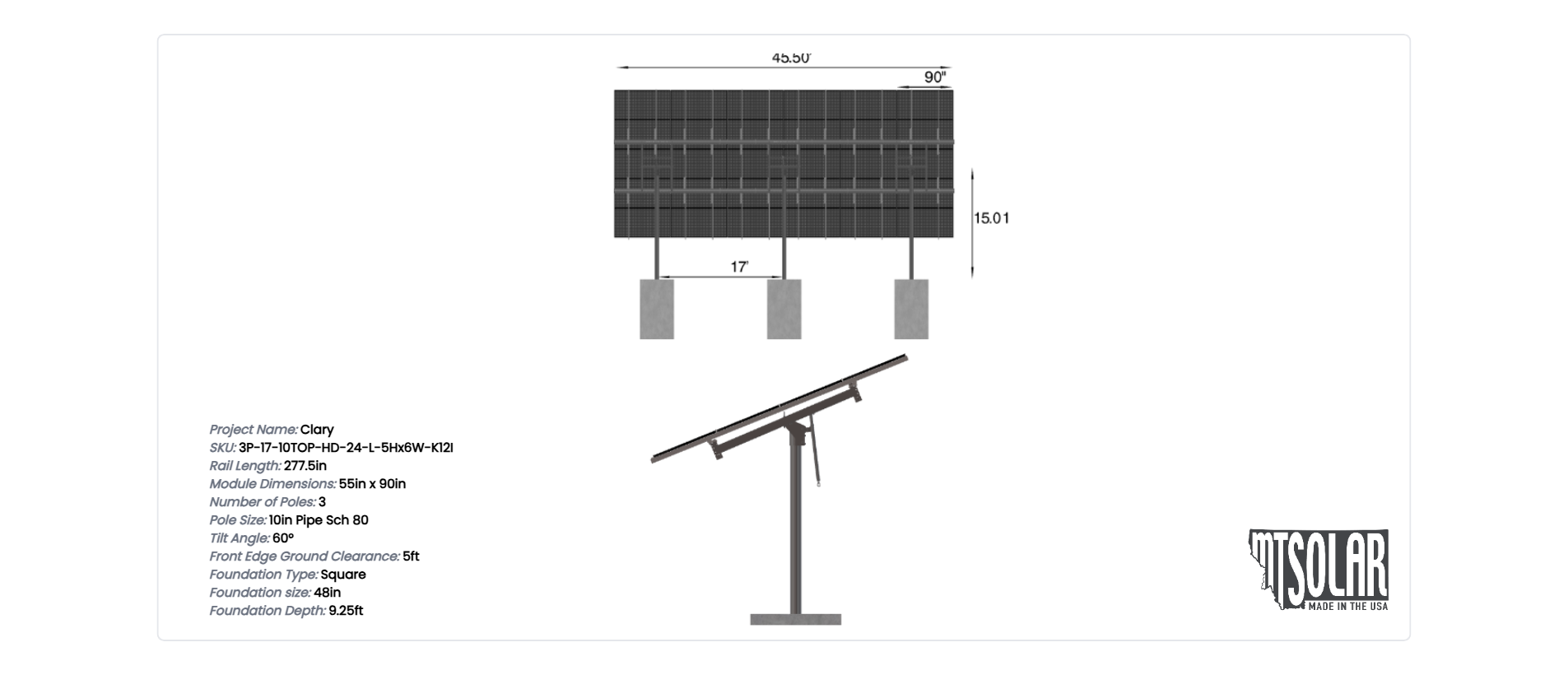

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 55 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

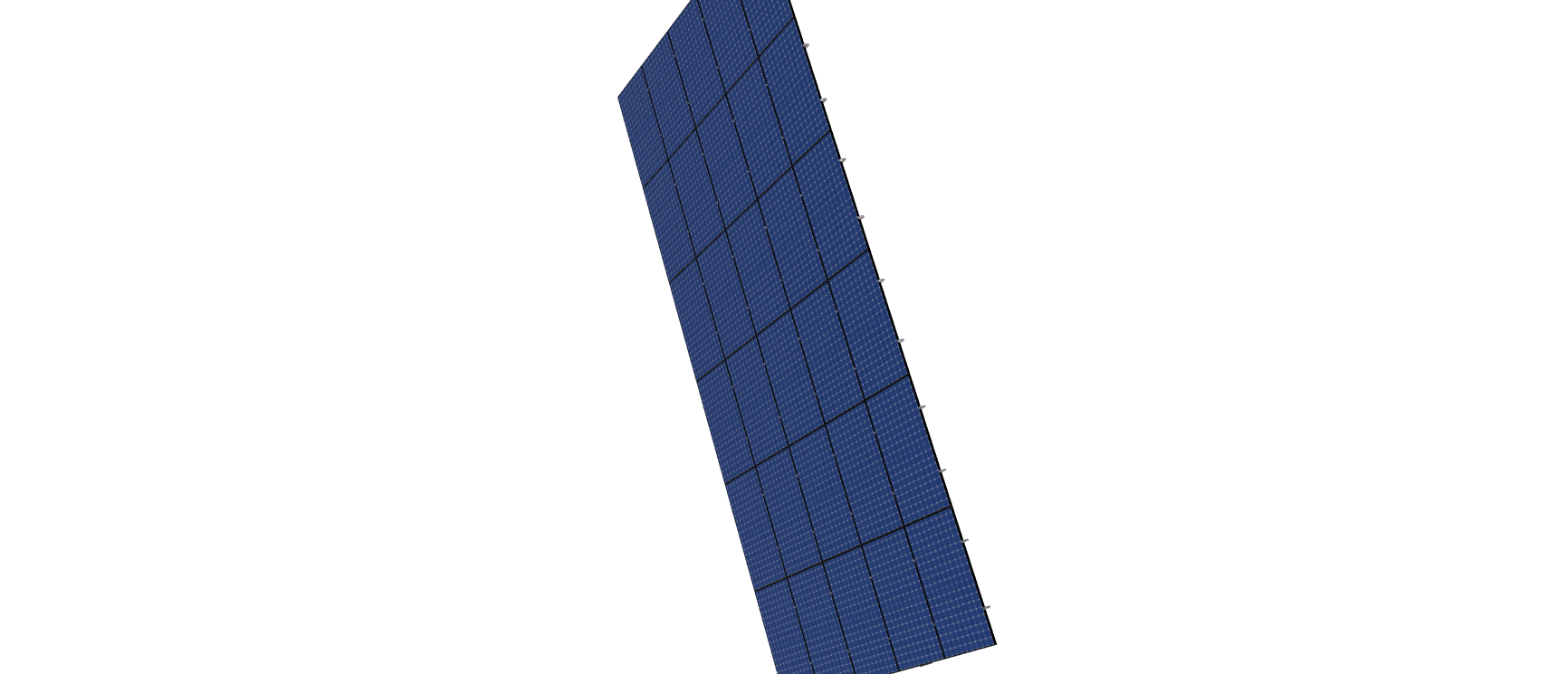

See 3D Model Here
Clary
$14,598.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 55 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

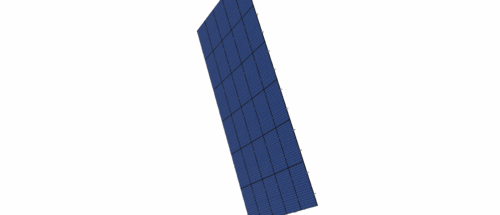

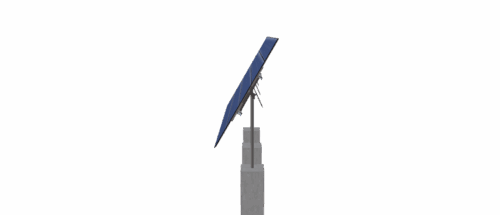

See 3D Model Here
Additional information
| Weight | 2769.41 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-HD-24-L-5HX6W-K12I |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 15.01 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1052.19 |
| ARRAY WIDTH | 45.50 |
| ARRAY HEIGHT | 23.13 |
| RAIL LENGTH | 277.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 25.03 |
| PROJECTED PANEL HEIGHT | 20.03 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | STUART, SHAW |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5183217865.00 |
| PROJECT ID | CLARY |
| SITE ADDRESS | 116, E, BROADWAY, SALEM, NY, 12865, USA |
| MODULE INFO | SILFAB, 580 |
| MODULE WIDTH | 55.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14598.68 |
| TOTAL WEIGHT | 2769.41 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/5e0f16e1-48cd-4aee-b159-05d0e87249b9.pdf |
|
| ID | 11485.00 |
| 3D Solar link |
