Daniel S – V1Jb

$3,169.90

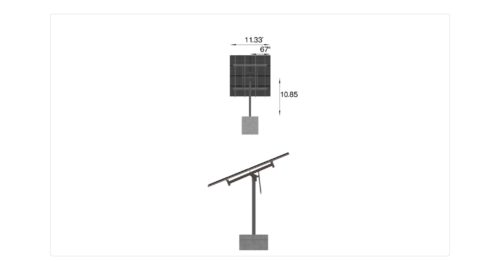

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 40 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

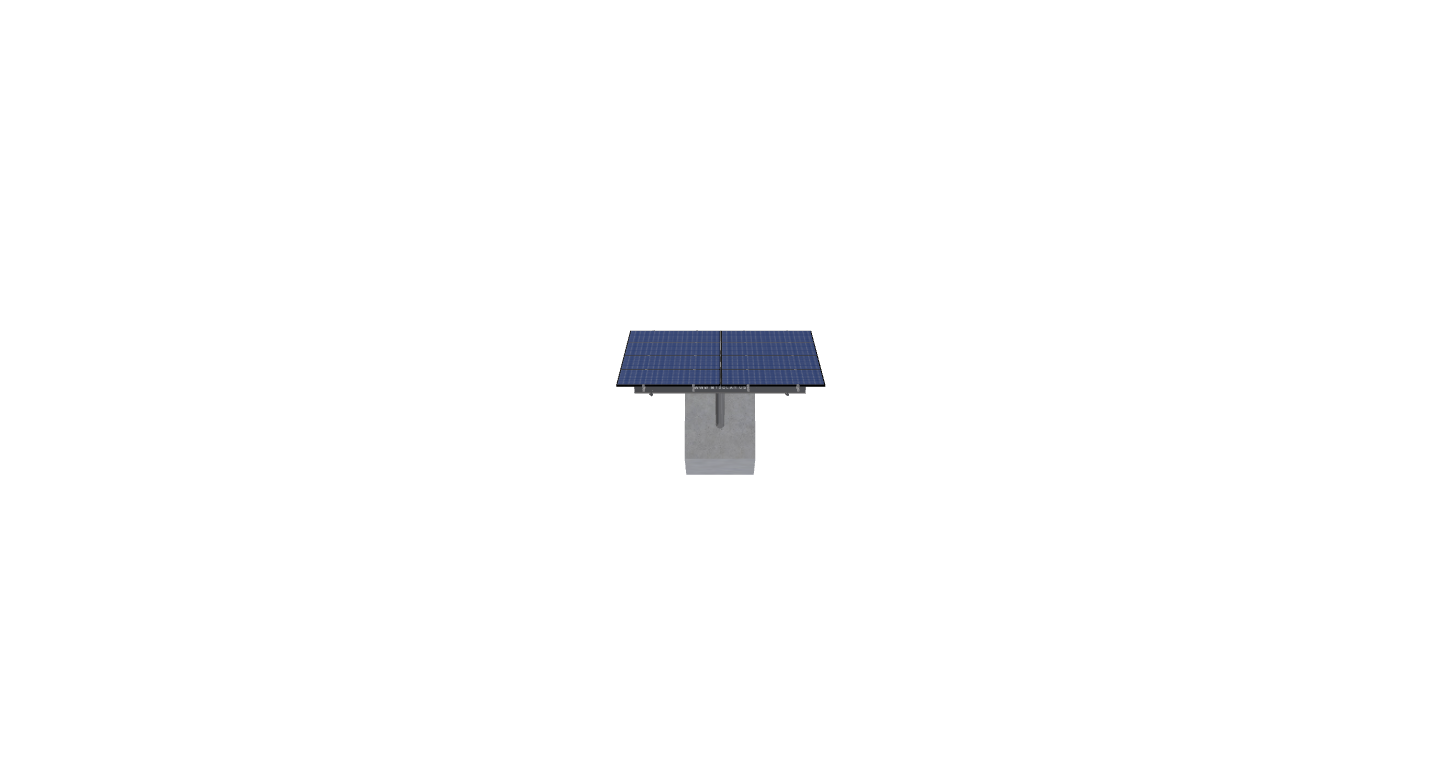

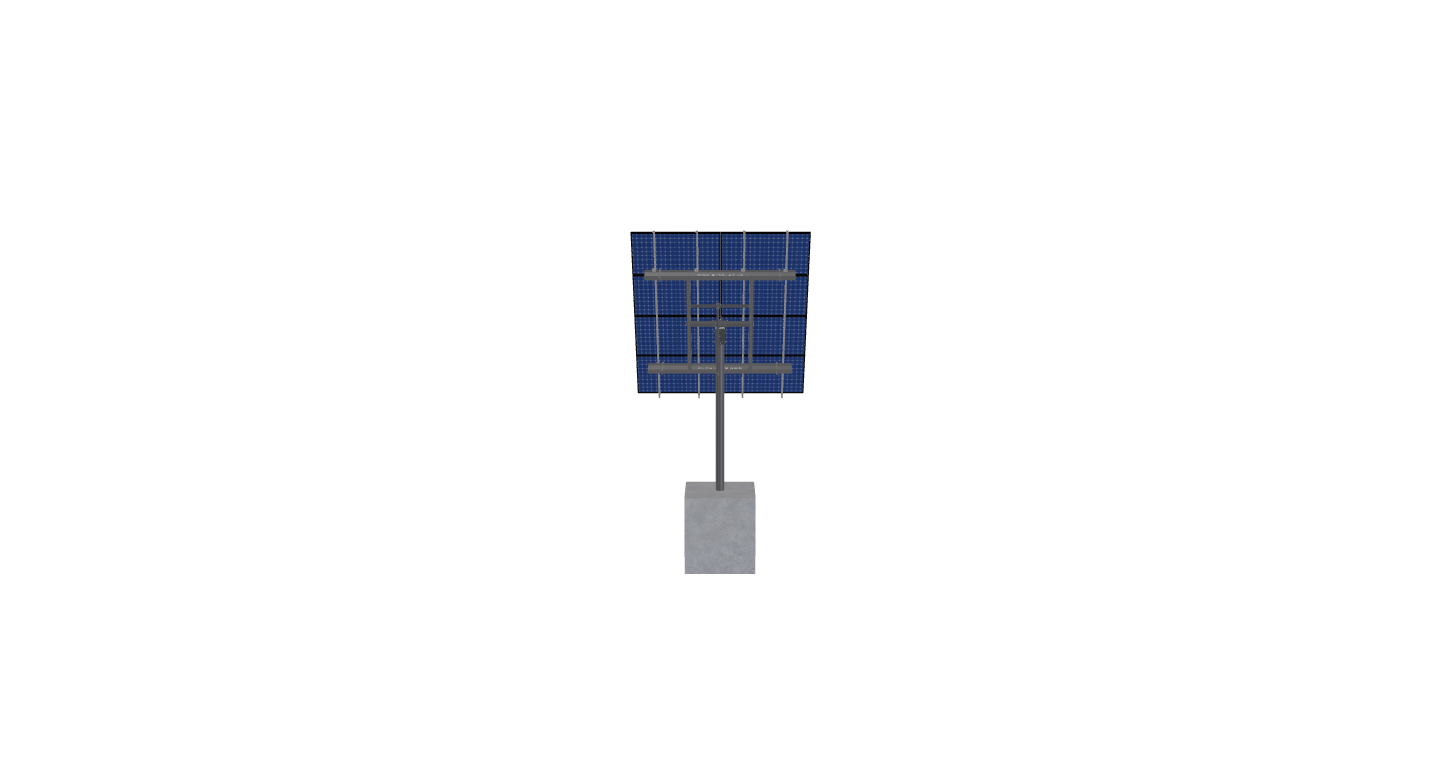

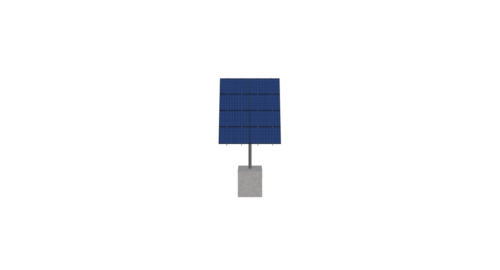

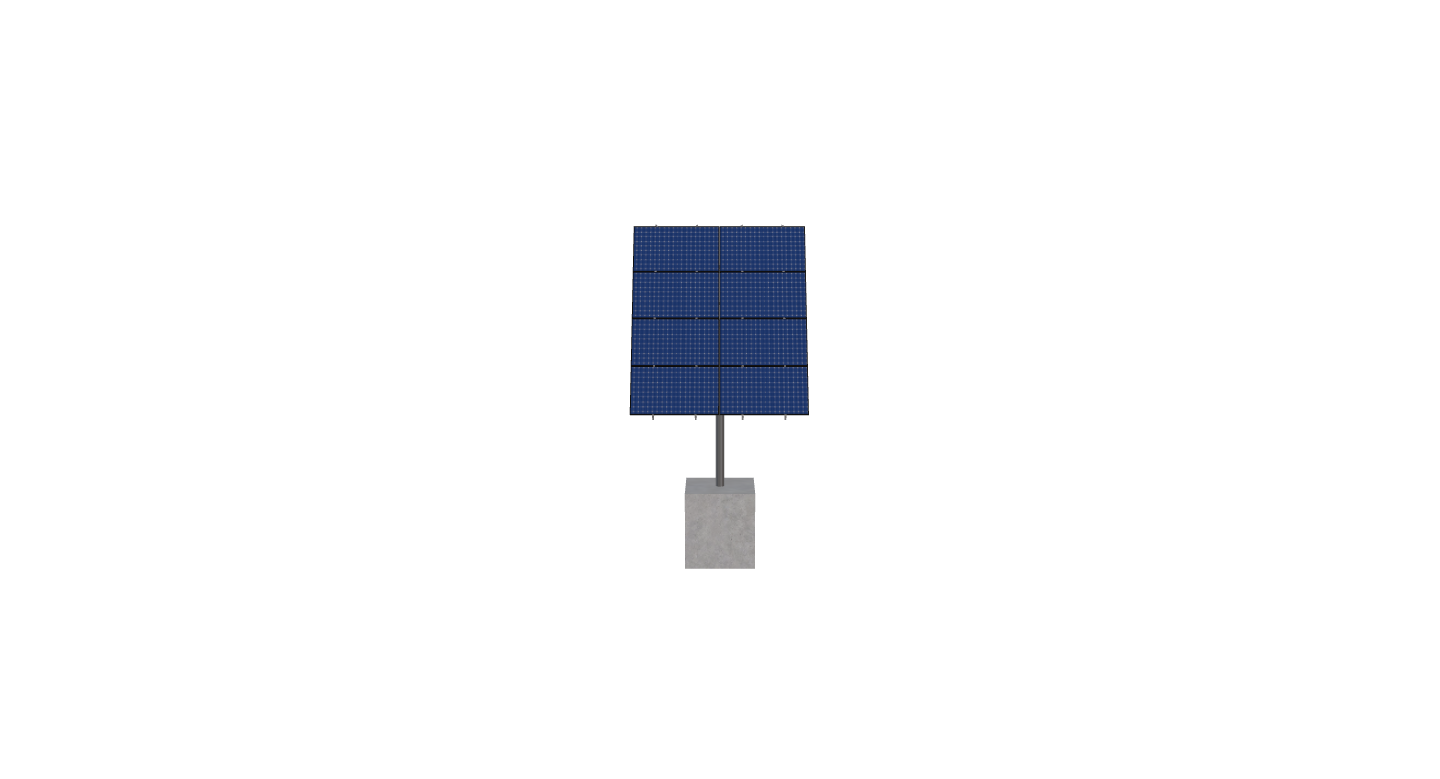

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-12-L-4Hx2W-A86B Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67 inches by 40 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 527.44 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-12-L-4HX2W-A86B

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.85

WING SPAN

12.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

60.00

CANTILEVER

114.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

153.00

ARRAY WIDTH

11.33

ARRAY HEIGHT

13.50

RAIL LENGTH

162.00

MODULE LENGTH

67.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

9.50

GROUND TO TOP

16.62

PROJECTED PANEL HEIGHT

11.55

PROJECT ID

DANIEL, S, -, V1JB

SITE ADDRESS

109, E, CRAWFORD, ST, WHITE, SULPHUR, SPRINGS, MT, 59645, USA

MODULE WIDTH

40.00

NUMBER ROWS

4.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

101.00

SNOW LOAD OVERRIDE

44.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3169.90

TOTAL WEIGHT

527.44

TOTAL PALLETS

1.00
