Freeman 10 panel

$3,722.28

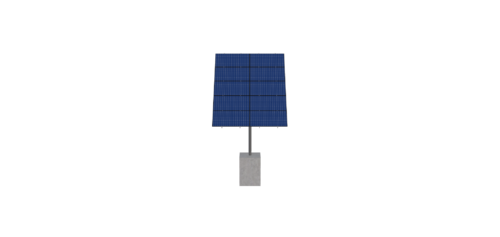

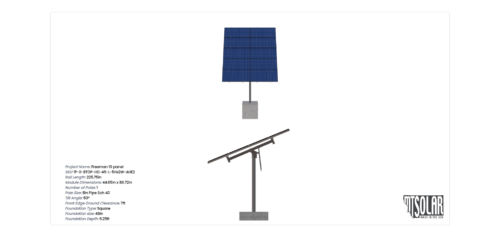

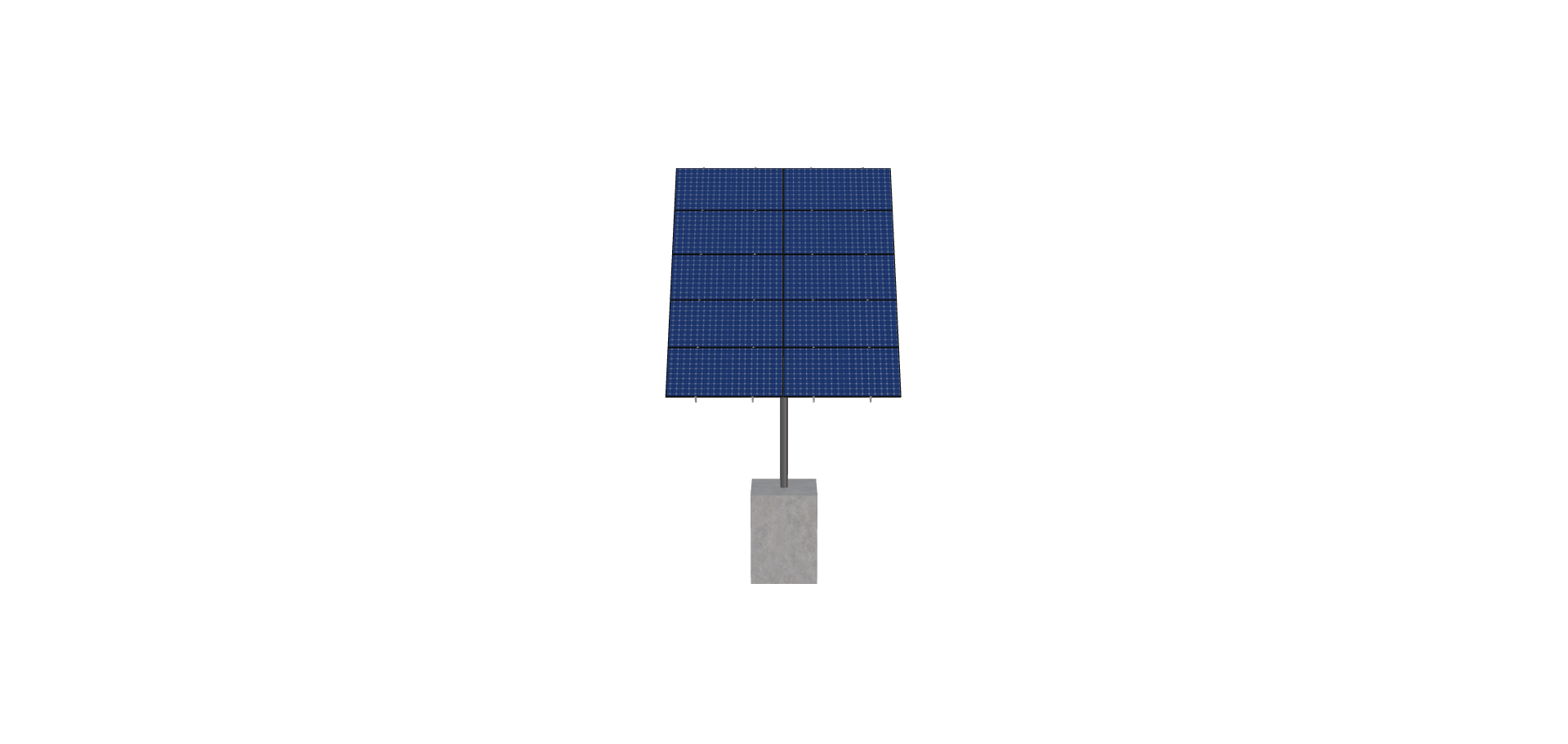

This Pole Mount is designed for modules with dimensions of 89.72″ by 44.65″ and an array layout of 5 high by 2 wide.
This mount fits on 1 – 8in Sch 40 steel pole (not included).
A chain hoist and lift bracket are needed for each pole (not included).

No Wings

No Rails

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-0-L-5Hx2W-AHE2 Category:

Description

This Pole Mount is designed for modules with dimensions of 89.72″ by 44.65″ and an array layout of 5 high by 2 wide.
This mount fits on 1 – 8in Sch 40 steel pole (not included).
A chain hoist and lift bracket are needed for each pole (not included).

No Wings

No Rails

See 3D Model Here

Additional information

Weight 885.59 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-45-L-5HX2W-AHE2

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

14.21

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

50.00

CANTILEVER

180.00

GROUND CLEARANCE

7.00

NO POLES

1.00

MODULE AREA

284.44

ARRAY WIDTH

15.12

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

89.72

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

15.00

GROUND TO TOP

21.33

PROJECTED PANEL HEIGHT

14.25

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

FREEMAN, 10, PANEL

SITE ADDRESS

FAIRFIELD, ID, 83327, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

4482.20

TOTAL WEIGHT

885.59

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/ae82f336-096a-4def-bc3f-c2916c8d8380.pdf

ID

7316.00
