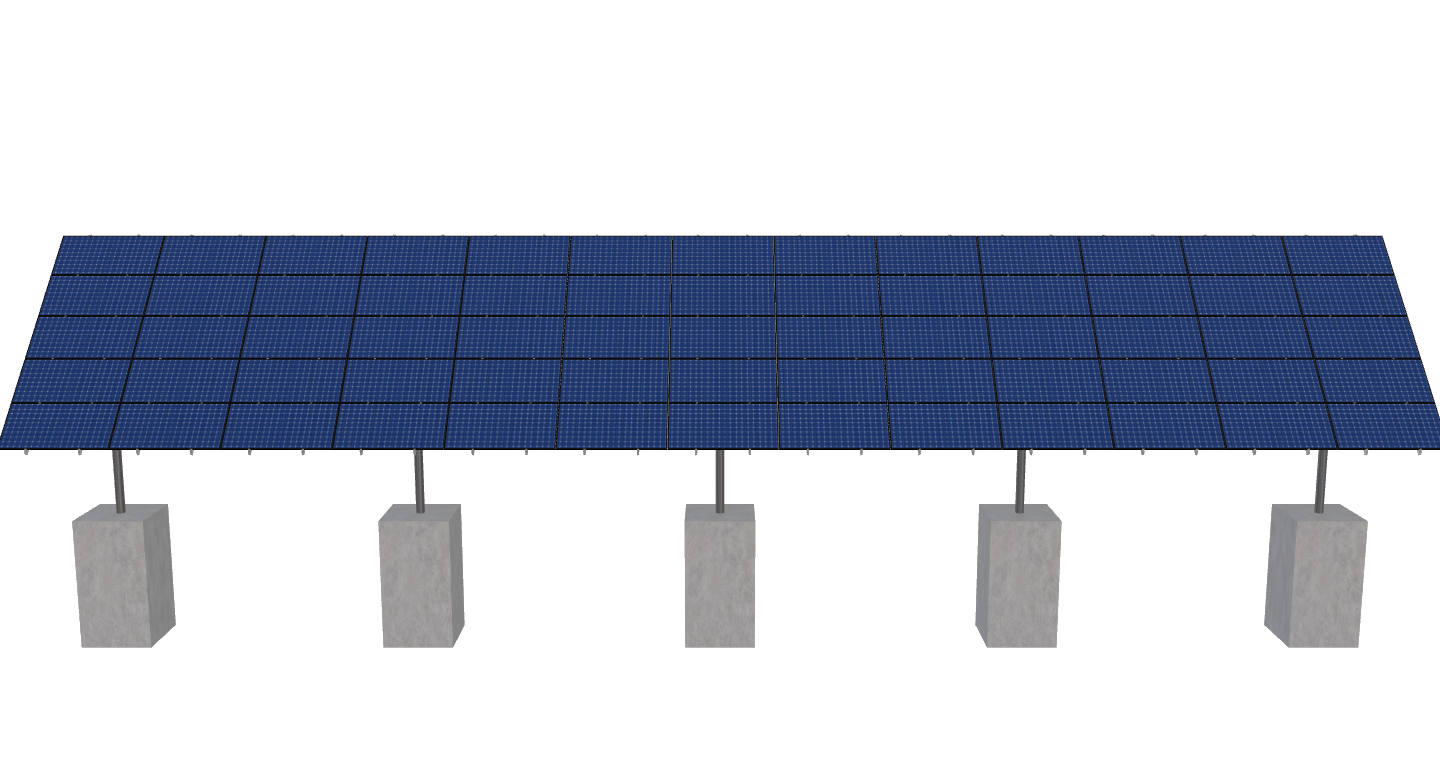

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81 inches by 41 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
GreggBradburyGroundMount-RevB-JB
$28,613.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81 inches by 41 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5759.870000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-10TOP-XD-12-L-5HX13W-C03L |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.22 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 1062.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1536.08 |

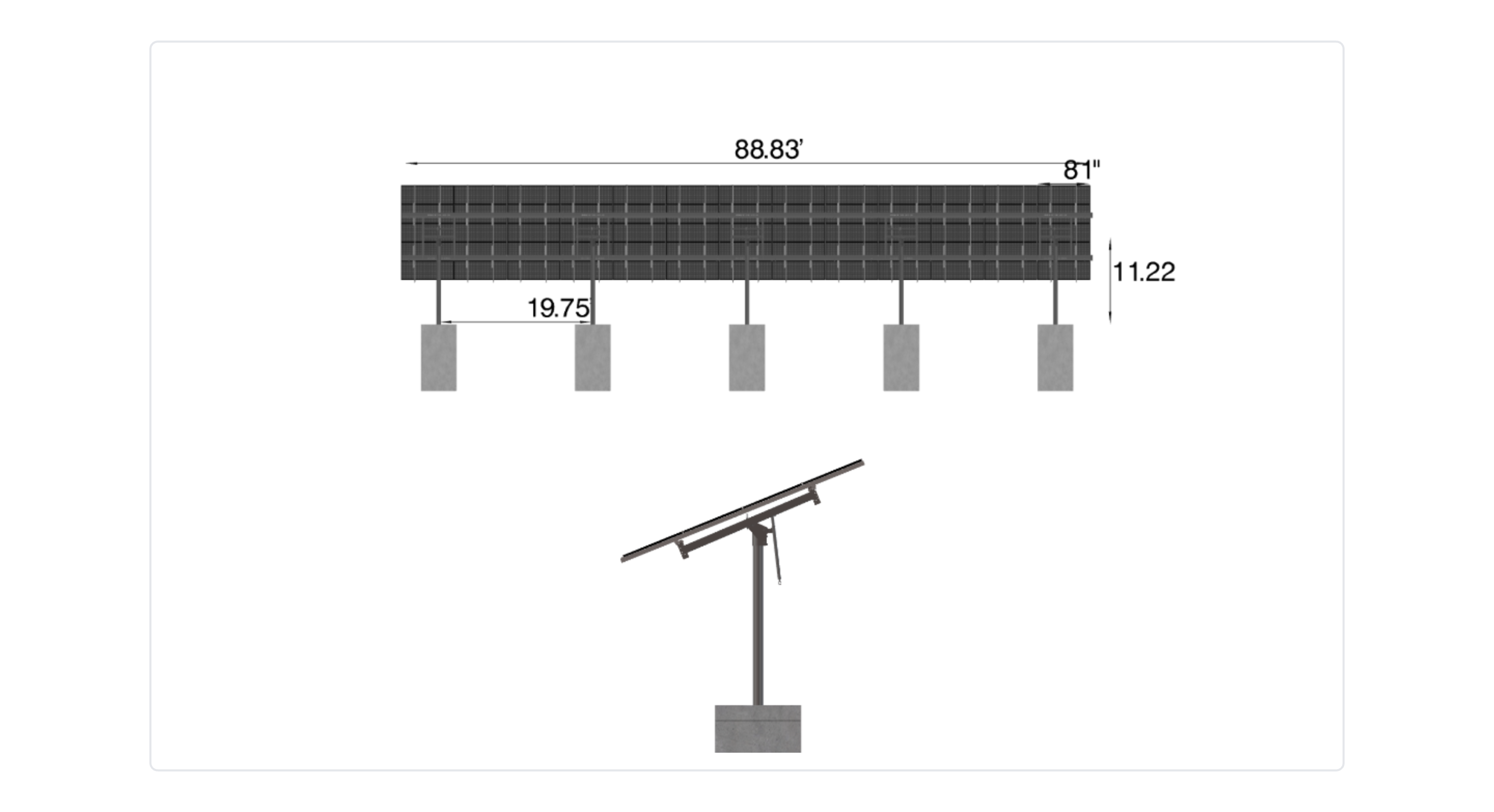

| ARRAY WIDTH | 88.83 |
| ARRAY HEIGHT | 17.29 |
| RAIL LENGTH | 207.50 |
| MODULE LENGTH | 81.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 88.50 |
| GROUND TO TOP | 17.36 |
| PROJECTED PANEL HEIGHT | 12.29 |
| WIND SPEED OVERRIDE | 150.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | GREGGBRADBURYGROUNDMOUNT-REVB-JB |
| SITE ADDRESS | 8775, BLUE, MOUNTAIN, DR, GOLDEN, CO, 80403, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 28613.67 |
| TOTAL WEIGHT | 5759.87 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/9b36804b-43ee-4eed-a5b5-982053343be9.pdf |
|
| ID | 3844.00 |
| 3D Solar link |
