Moonridge (40X Heliene 530W

$15,899.27

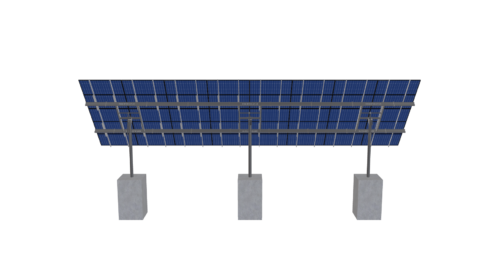

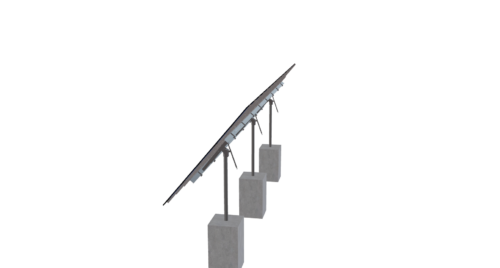

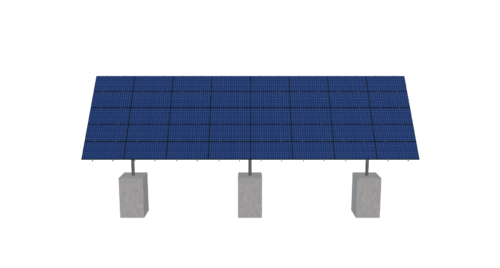

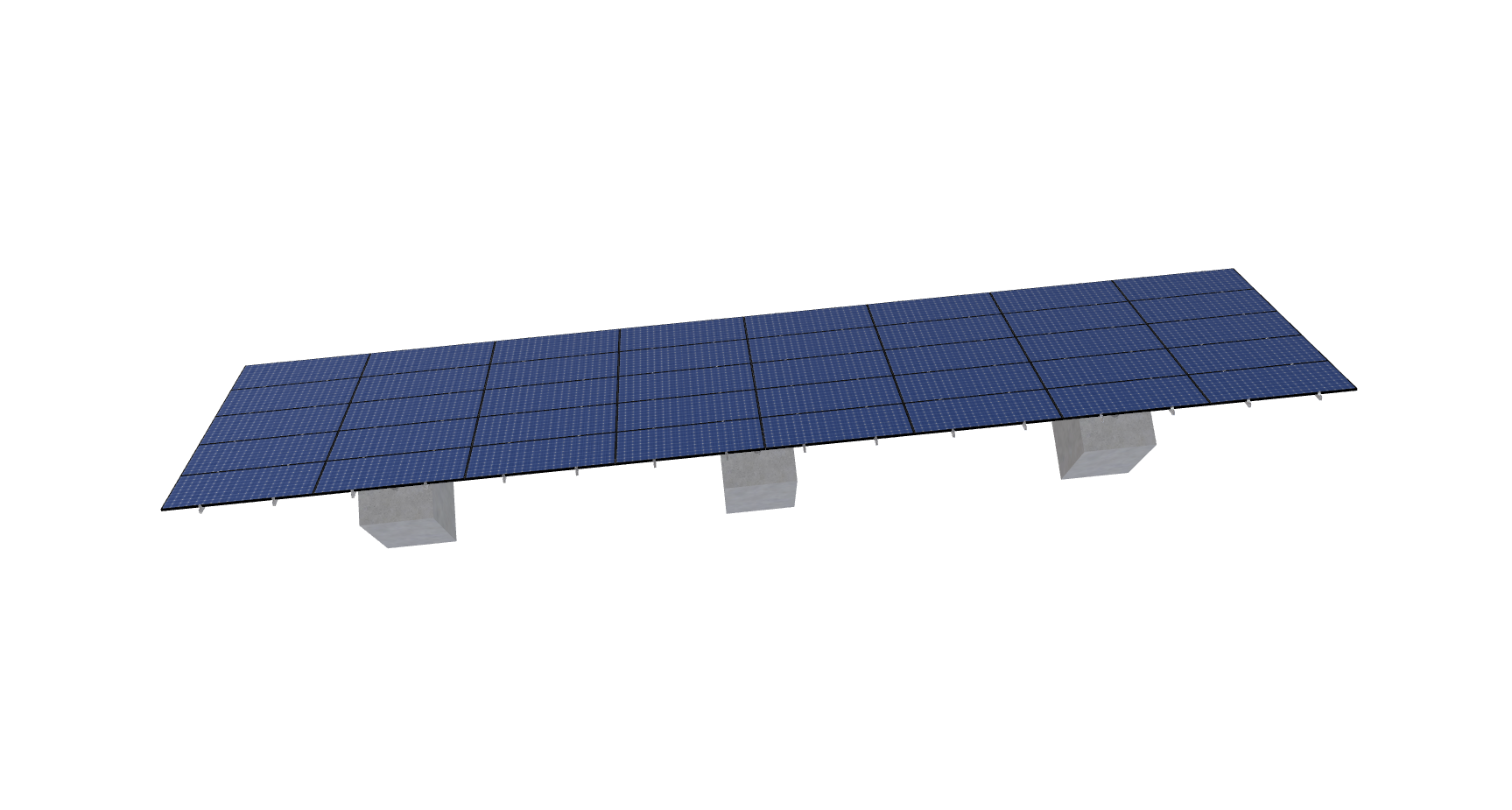

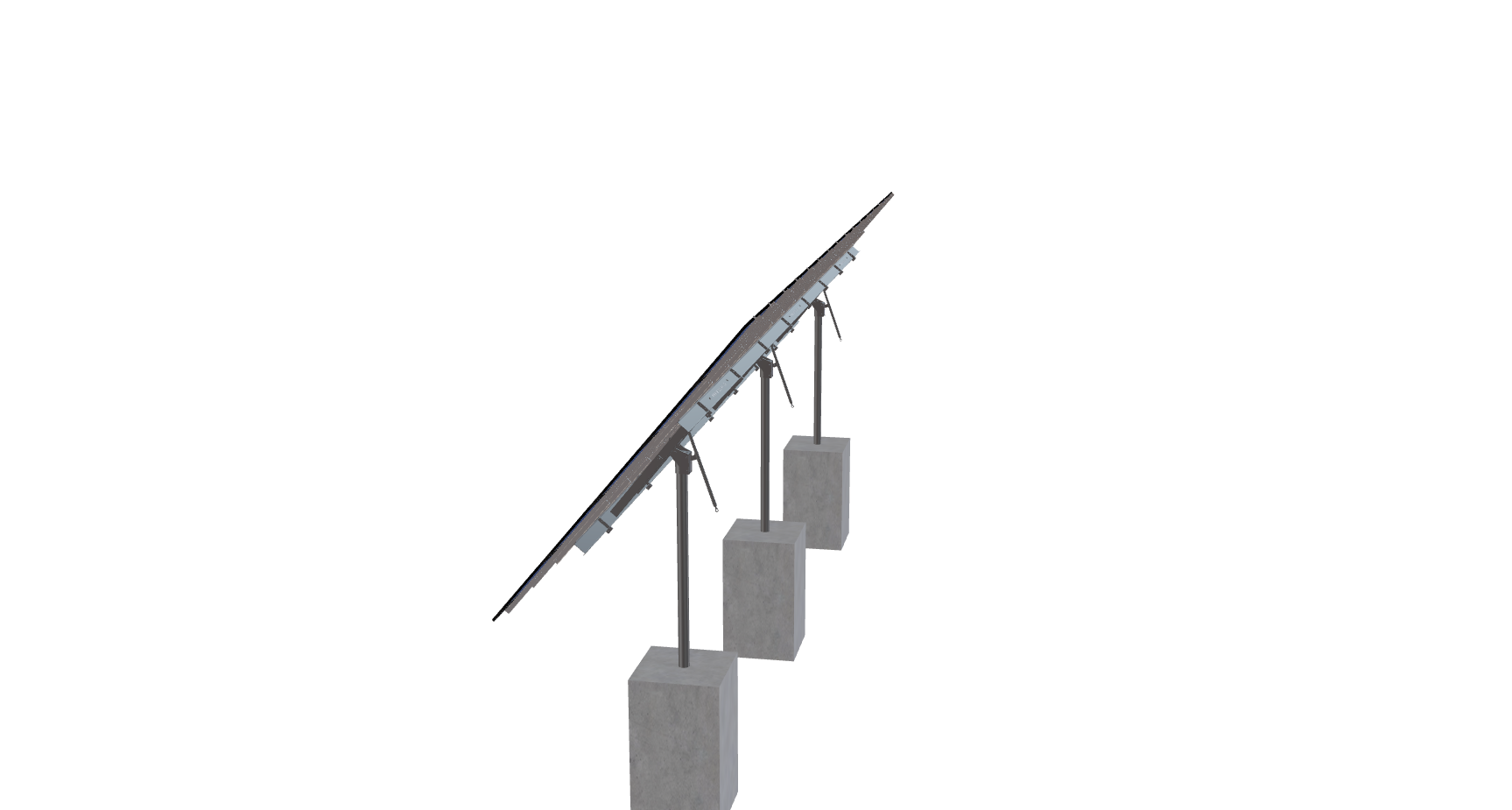

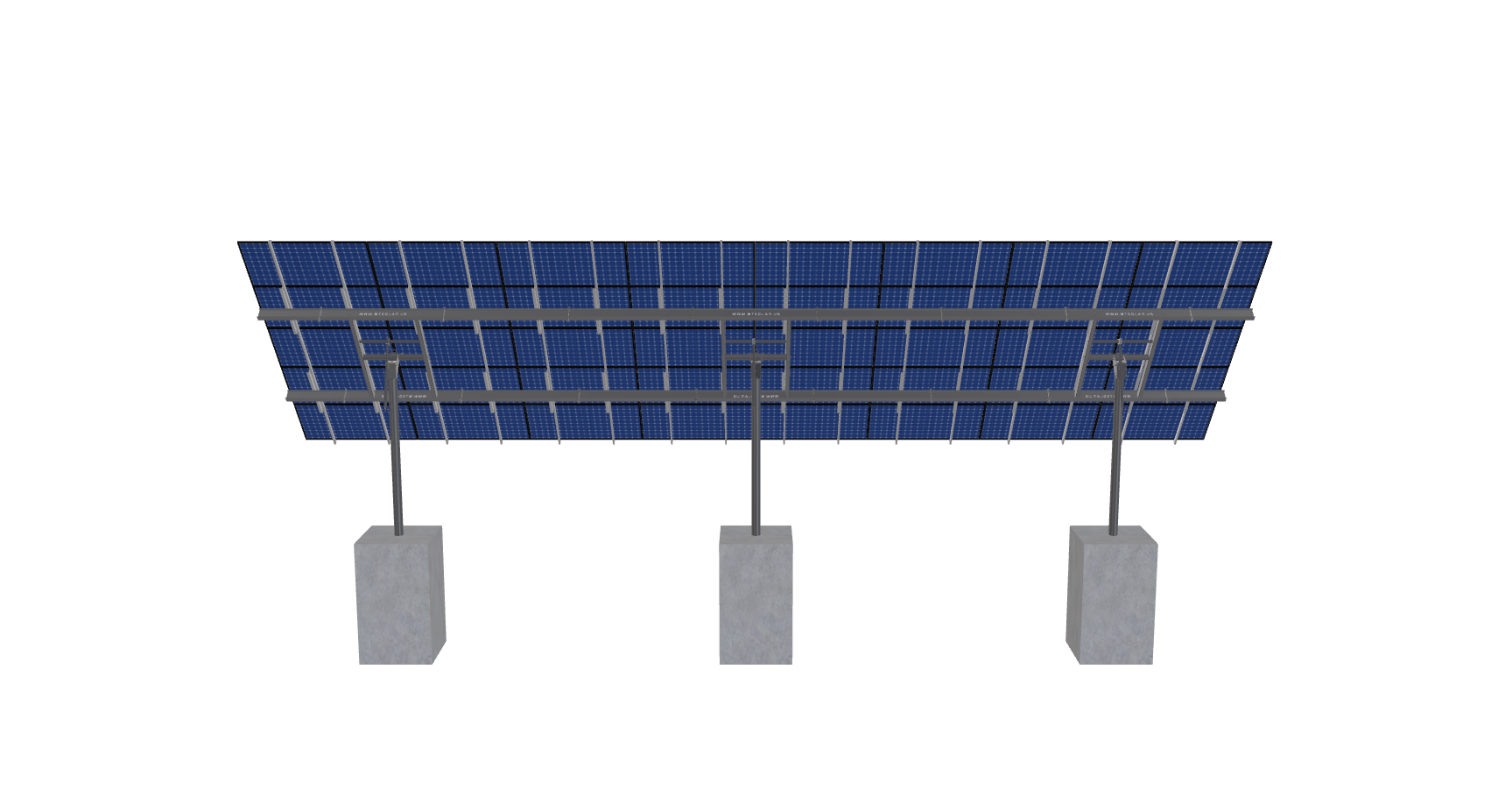

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

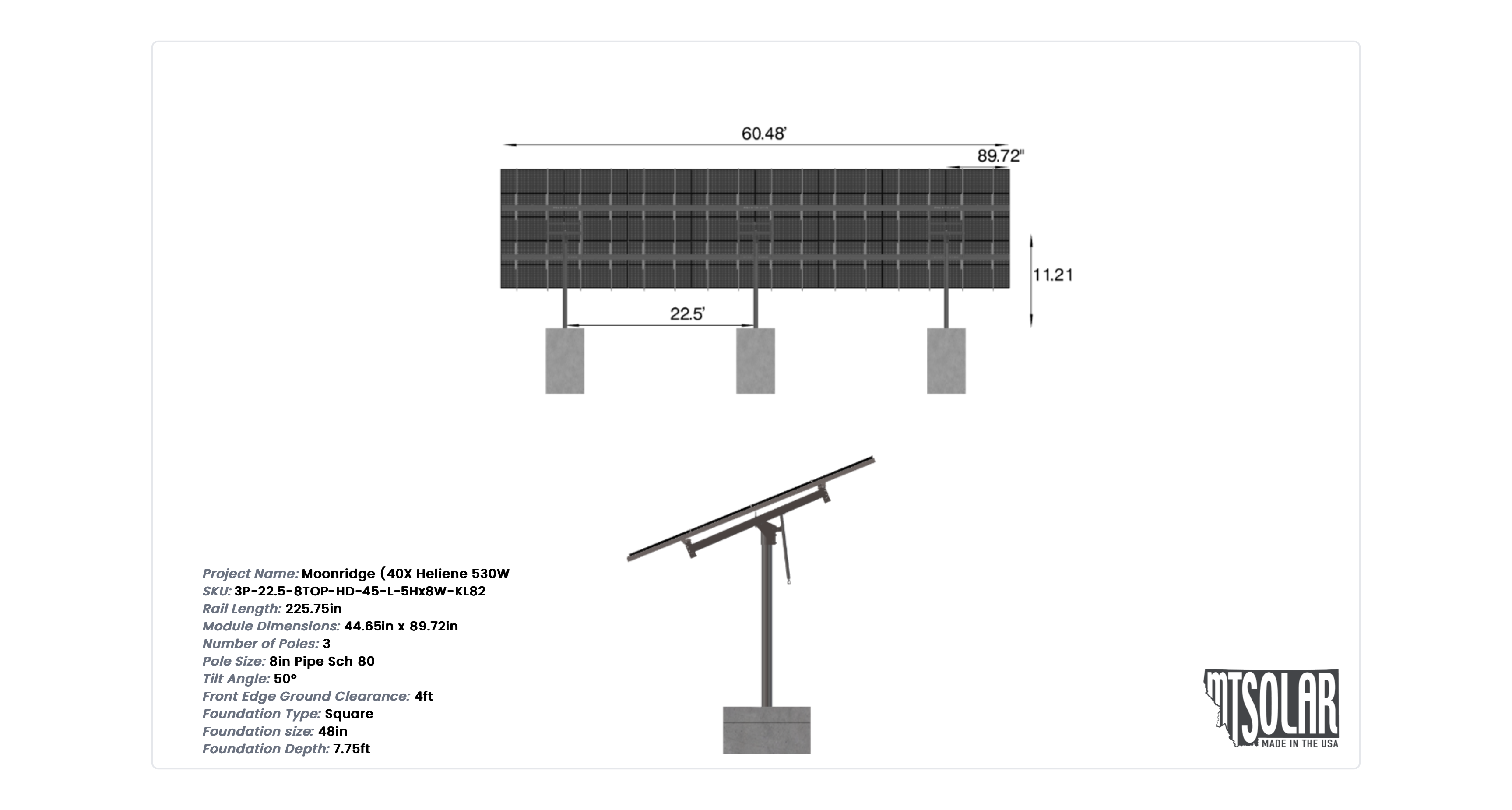

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $15,899.27
Total options:
Order total:
SKU: 3P-22.5-8TOP-HD-45-L-5Hx8W-KL82 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3217.17 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-HD-45-L-5HX8W-KL82

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

11.21

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

50.00

CANTILEVER

720.00

GROUND CLEARANCE

4.00

NO POLES

3.00

MODULE AREA

1137.78

ARRAY WIDTH

60.48

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

89.72

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

60.00

GROUND TO TOP

18.33

PROJECTED PANEL HEIGHT

14.25

PROJECT ID

MOONRIDGE, (40X, HELIENE, 530W

SITE ADDRESS

188, MOONRIDGE, DR, WHITEFISH, MT, 59937, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

15899.27

TOTAL WEIGHT

3217.17

TOTAL PALLETS

3.00
