Moonridge (Heliene 450W)

$5,320.23

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.25 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

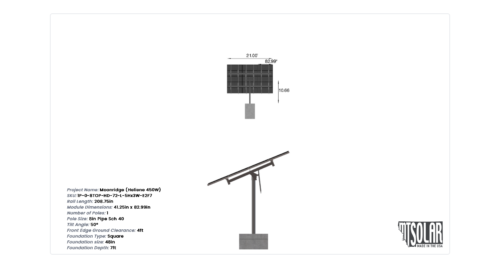

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-72-L-5Hx3W-E2F7 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.99 inches by 41.25 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1076.99 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-72-L-5HX3W-E2F7

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.66

WING SPAN

72.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

50.00

CANTILEVER

234.00

GROUND CLEARANCE

4.00

NO POLES

1.00

MODULE AREA

365.27

ARRAY WIDTH

21.00

ARRAY HEIGHT

17.40

RAIL LENGTH

208.75

MODULE LENGTH

82.99

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

17.25

PROJECTED PANEL HEIGHT

13.17

PROJECT ID

MOONRIDGE, (HELIENE, 450W)

SITE ADDRESS

188, MOONRIDGE, DR, WHITEFISH, MT, 59937, USA

MODULE WIDTH

41.25

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

5320.23

TOTAL WEIGHT

1076.99

TOTAL PALLETS

1.00
