MTSOLAR_3LBIIEF7D6GCG

$5,508.44

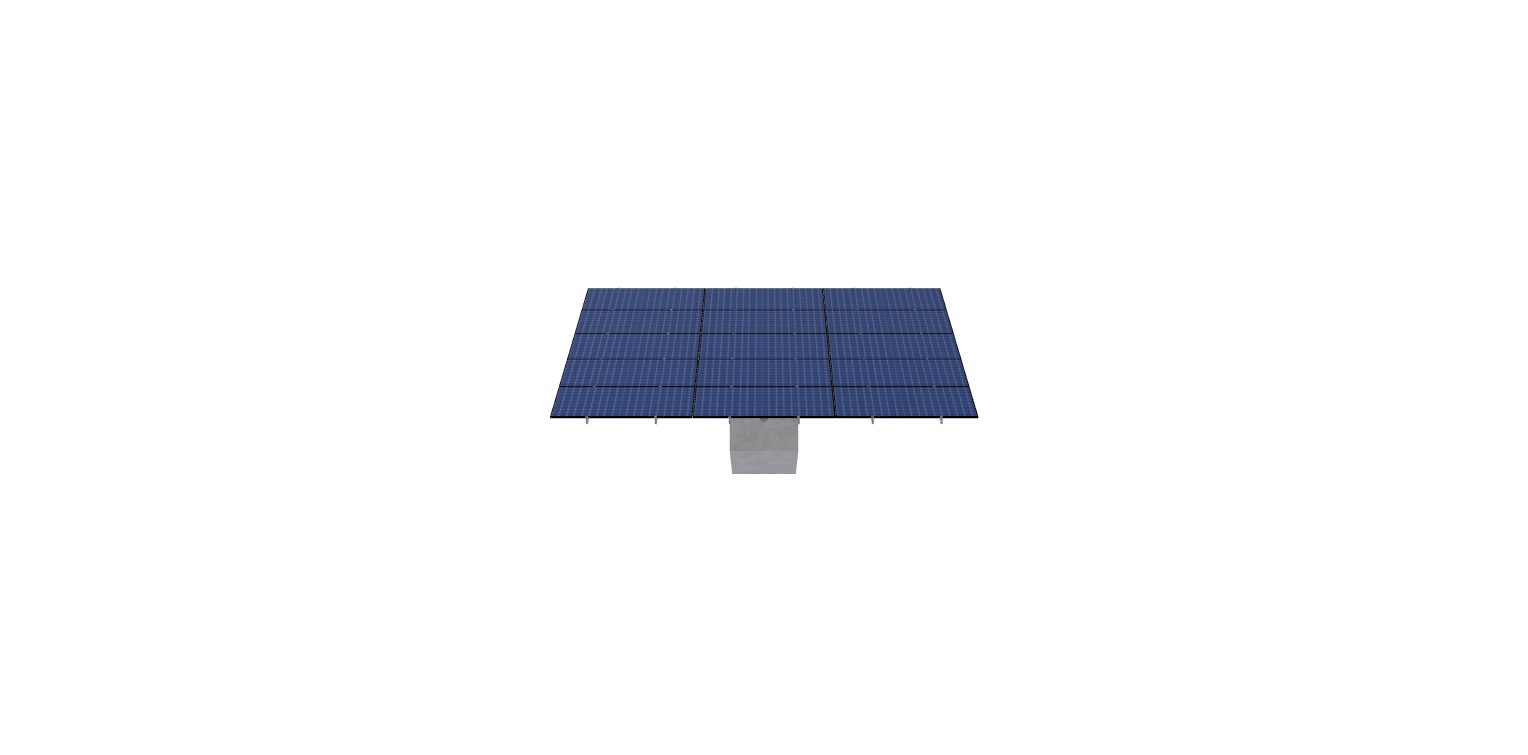

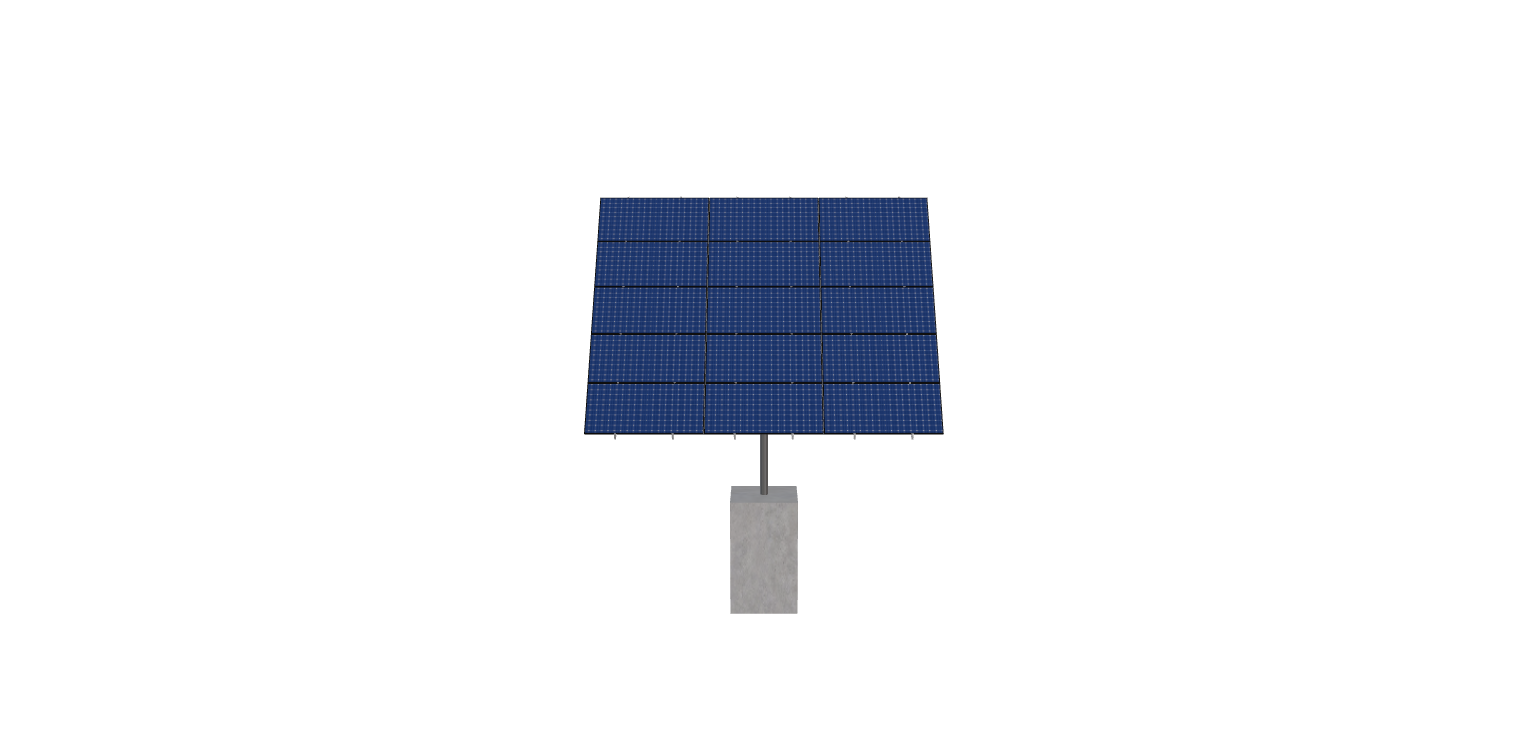

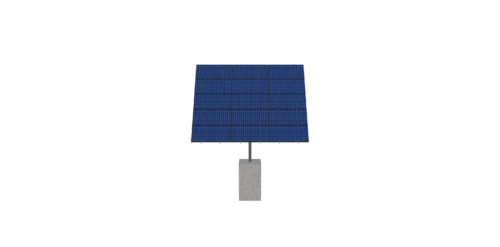

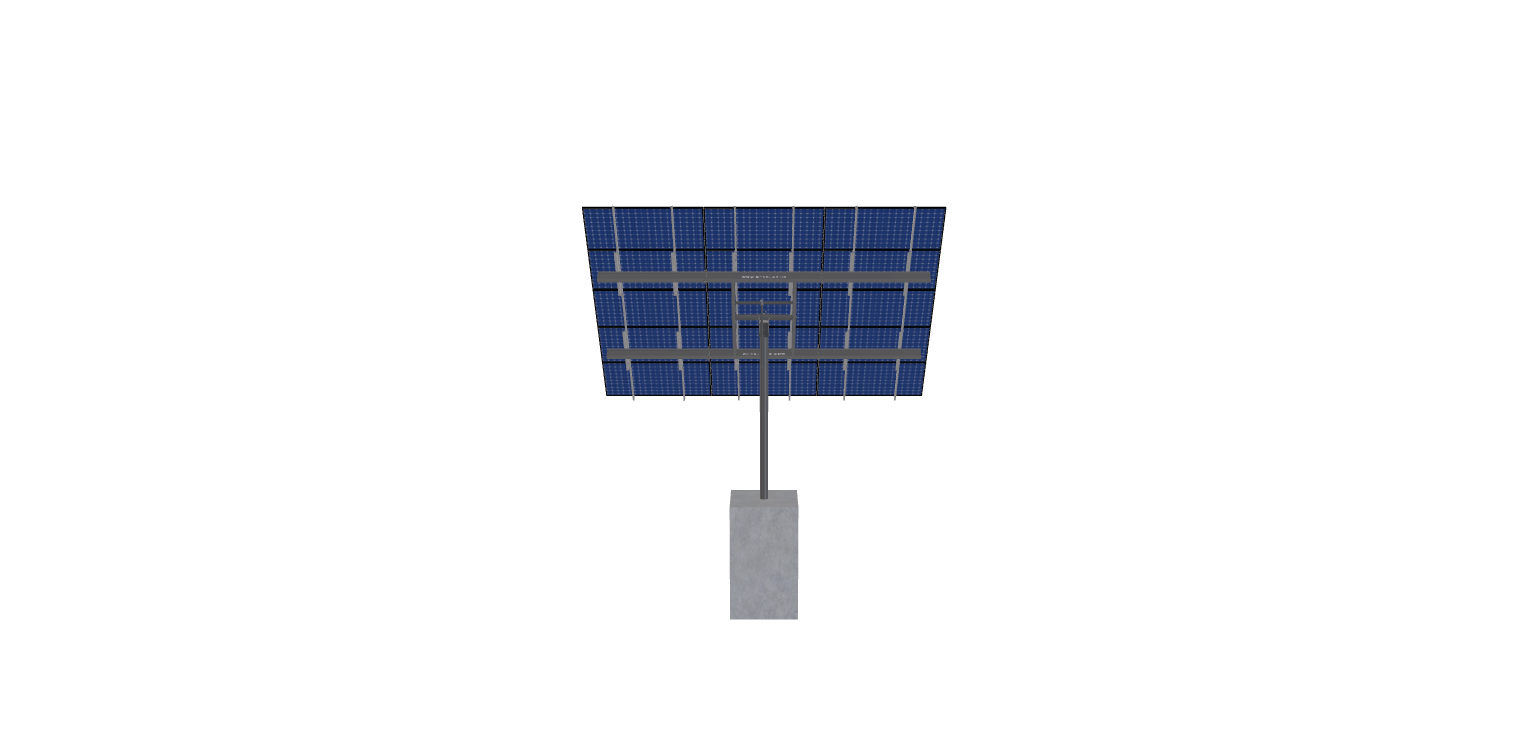

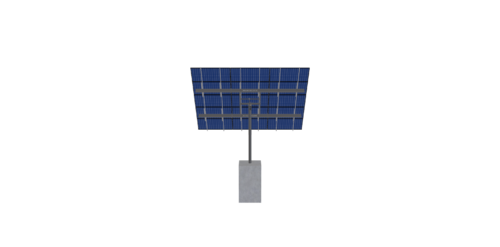

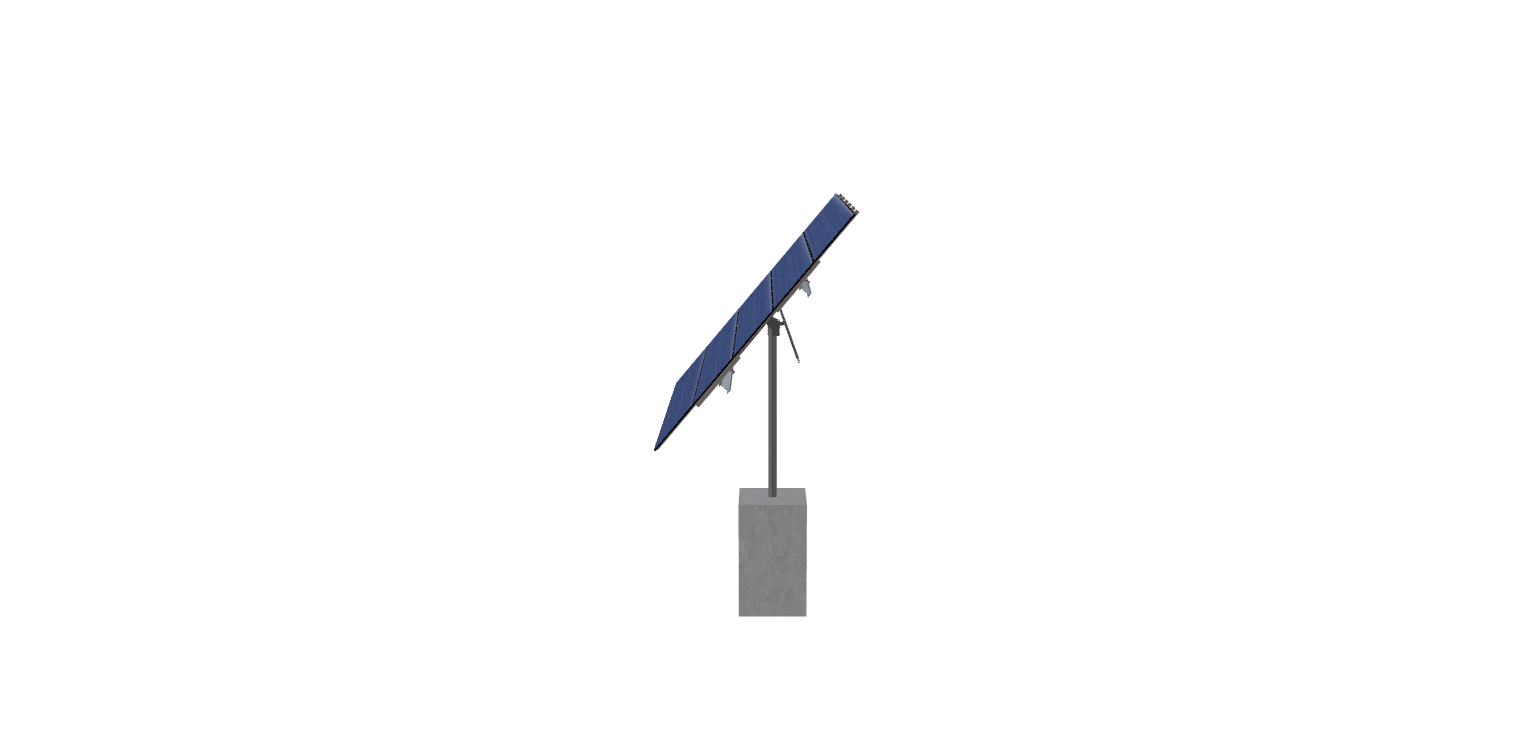

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-84-L-5Hx3W-JIFG Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 45 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1121.1299999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-84-L-5HX3W-JIFG

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.26

WING SPAN

84.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

50.00

CANTILEVER

258.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

431.30

ARRAY WIDTH

22.75

ARRAY HEIGHT

18.96

RAIL LENGTH

227.50

MODULE LENGTH

90.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

19.44

PROJECTED PANEL HEIGHT

14.36

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, 3LBIIEF7D6GCG

SITE ADDRESS

5382, PADDOCK, RD, BLACK, EARTH, WI, 53515, USA

MODULE WIDTH

45.00

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

5508.44

TOTAL WEIGHT

1121.13

TOTAL PALLETS

1.00
