This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.9 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

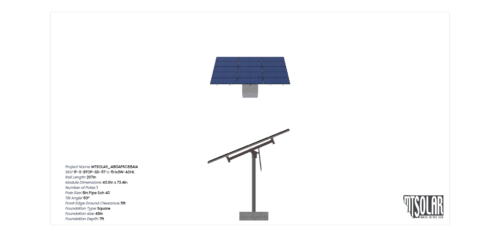

See 3D Model Here
MTSOLAR_4IB0AF6C88AIA
$4,622.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.4 inches by 40.9 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 907.3199999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-57-L-5HX3W-ADHL |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.61 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 320.85 |
| ARRAY WIDTH | 18.60 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 73.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 18.13 |
| PROJECTED PANEL HEIGHT | 13.05 |
| PROJECT ID | MTSOLAR, 4IB0AF6C88AIA |
| SITE ADDRESS | 441, POTOSI, RD, HARRISON, MT, 59735, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 114.00 |
| SNOW LOAD OVERRIDE | 37.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4622.99 |
| TOTAL WEIGHT | 907.32 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/12d08d3b-f507-4c25-97a1-2b41b923971b.pdf |
|
| ID | 6400.00 |
| 3D Solar link |
