This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

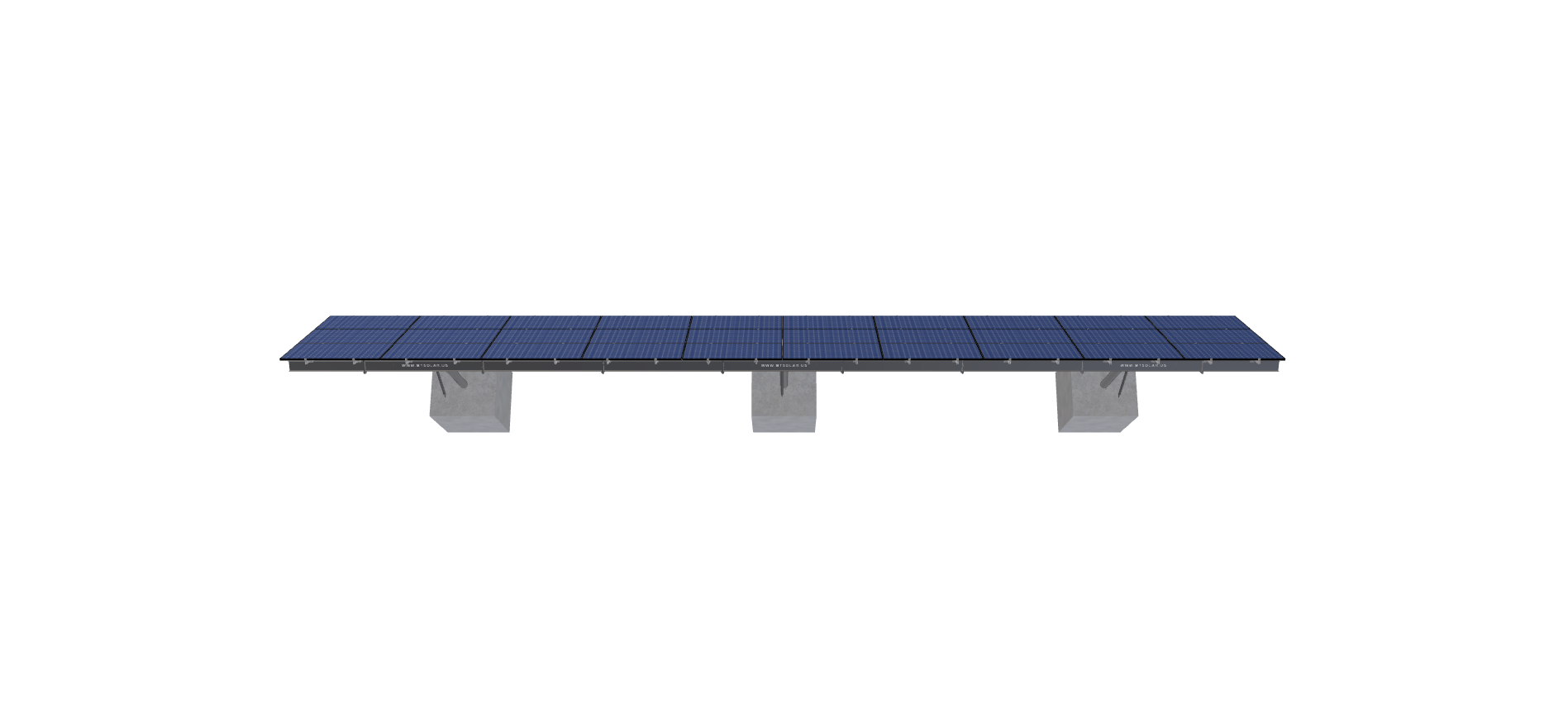

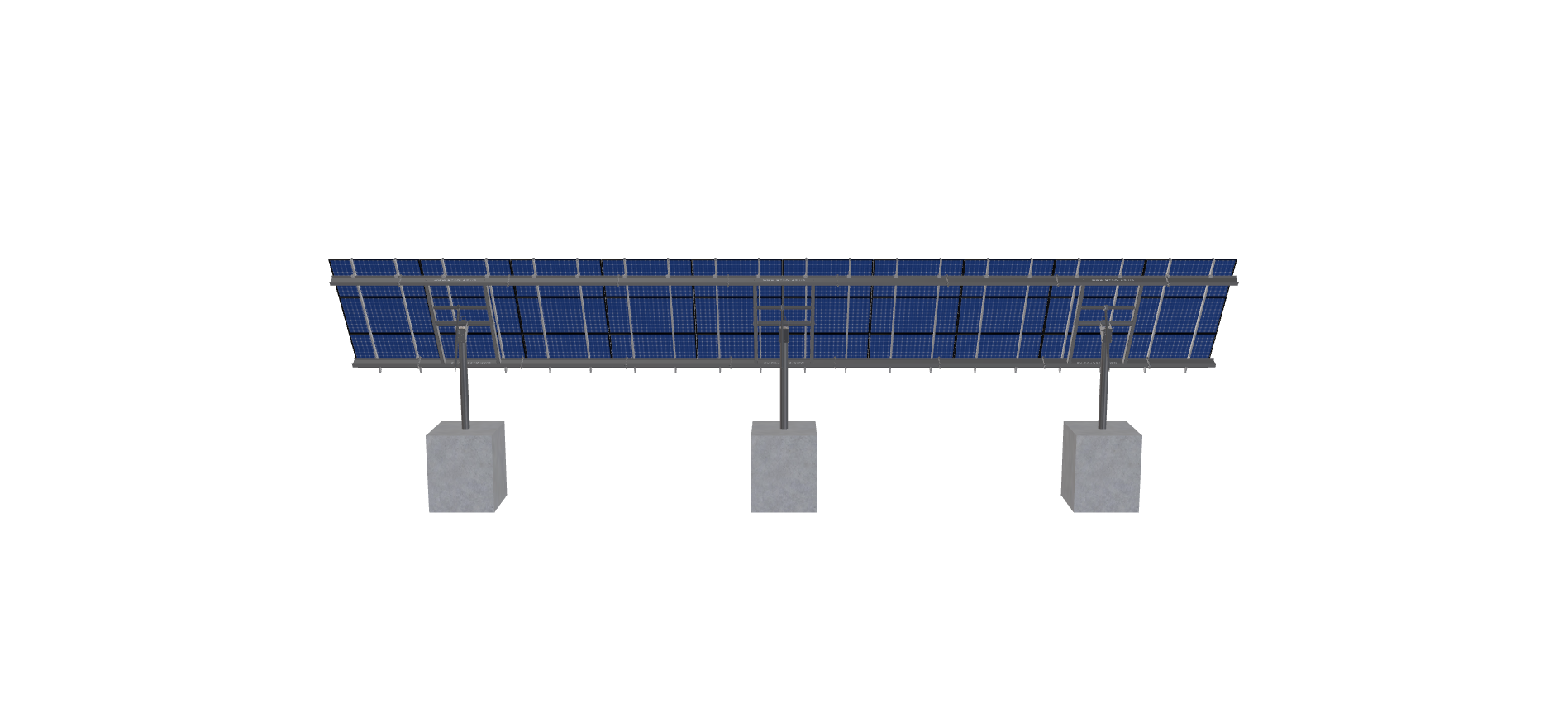

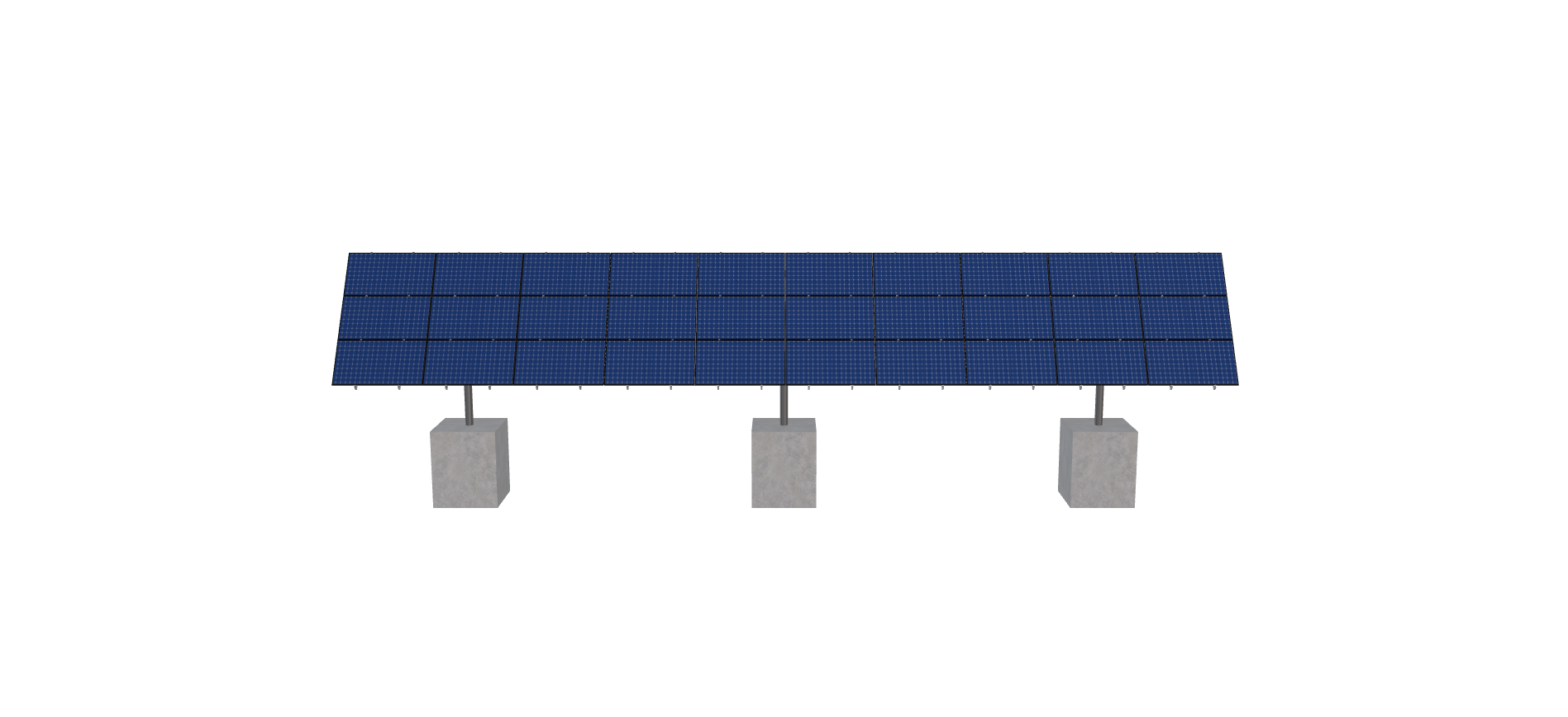

See 3D Model Here
MTSOLAR_7JAC6KGEGCLD
$13,411.55
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2309.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-SD-57-L-3HX10W-6KD2 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.40 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 58.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 3.00 |
| MODULE AREA | 648.44 |
| ARRAY WIDTH | 62.50 |
| ARRAY HEIGHT | 10.38 |
| RAIL LENGTH | 124.50 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 11.80 |
| PROJECTED PANEL HEIGHT | 8.80 |
| DESIGNER NAME | SHAWN, CONDLIN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 315-491-2279 |
| PROJECT ID | MTSOLAR, 7JAC6KGEGCLD |
| SITE ADDRESS | 642, FRED, STEWART, RD, SOUTH, PLYMOUTH, NY, 13844, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 102.00 |
| SNOW LOAD OVERRIDE | 77.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12772.90 |
| TOTAL WEIGHT | 2309.20 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/d6320d5d-458b-41b8-90ab-057260fc4db5.pdf |
|
| ID | 10741.00 |
| 3D Solar link |
