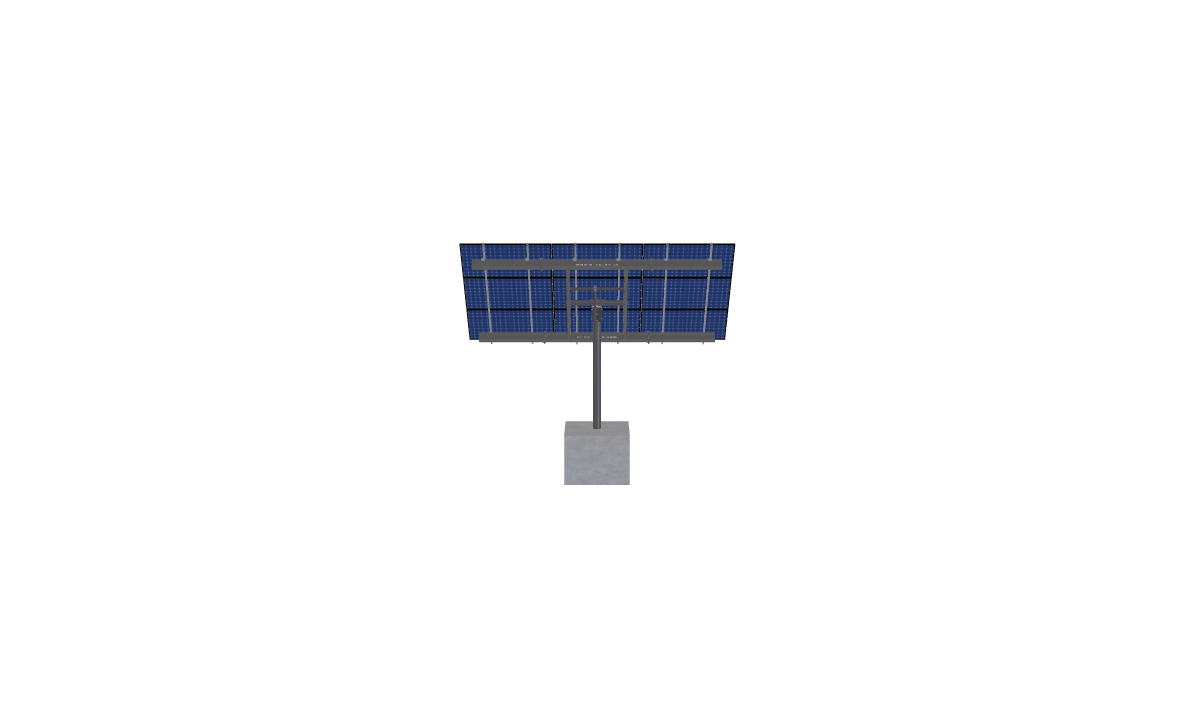

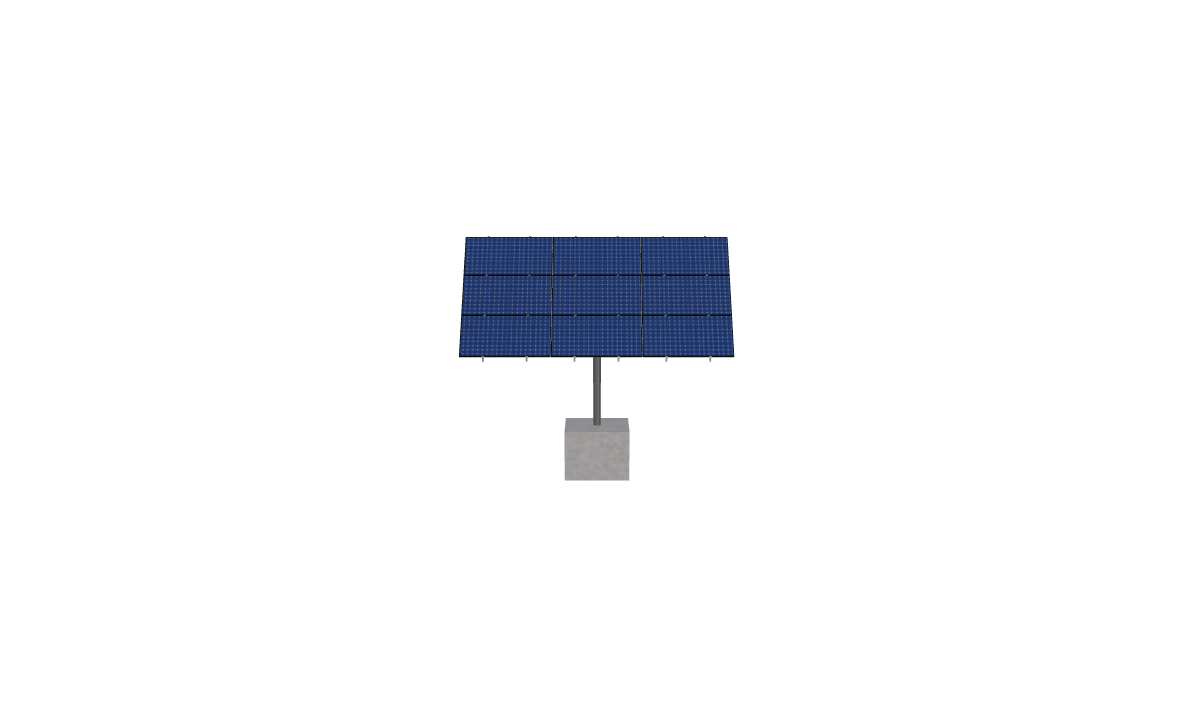

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.4 inches by 40.2 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_C191IG122CD5
$3,795.19
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.4 inches by 40.2 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 677.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-57-L-3HX3W-J8K7 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.90 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 3.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 191.80 |
| ARRAY WIDTH | 18.85 |
| ARRAY HEIGHT | 10.18 |
| RAIL LENGTH | 122.10 |
| MODULE LENGTH | 74.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 12.79 |
| PROJECTED PANEL HEIGHT | 7.79 |
| DESIGNER NAME | KEVIN, SMITH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 406-861-7095 |
| PROJECT ID | MTSOLAR, C191IG122CD5 |
| SITE ADDRESS | FLUME, GULCH, RD, OREGON, 97497, USA |
| MODULE INFO | QUELL, Q, PEAKDUOG10+, 415 |
| MODULE WIDTH | 40.20 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 50.00 |
| SNOW LOAD OVERRIDE | 104.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3795.19 |
| TOTAL WEIGHT | 677.76 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/dbf1510c-4617-4306-a3db-f5785aeb6e19.pdf |
|
| ID | 11178.00 |
| 3D Solar link |
