MTSOLAR_DCBA2B6B5FD9

$8,449.24

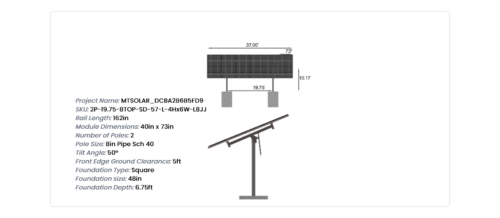

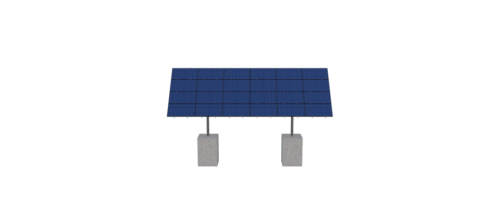

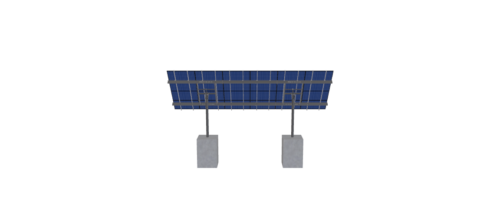

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 40 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-8TOP-SD-57-L-4Hx6W-L8JJ Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 40 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1502.82 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-8TOP-SD-57-L-4HX6W-L8JJ

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

10.17

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

50.00

CANTILEVER

441.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

499.50

ARRAY WIDTH

37.00

ARRAY HEIGHT

13.50

RAIL LENGTH

162.00

MODULE LENGTH

73.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

36.75

GROUND TO TOP

15.28

PROJECTED PANEL HEIGHT

10.21

PROJECT ID

MTSOLAR, DCBA2B6B5FD9

SITE ADDRESS

FREE, UNION, VA, 22940, USA

MODULE WIDTH

40.00

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

120.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

8449.24

TOTAL WEIGHT

1502.82

TOTAL PALLETS

2.00
