MTSOLAR_EC6C75BA2LA3

$3,553.00

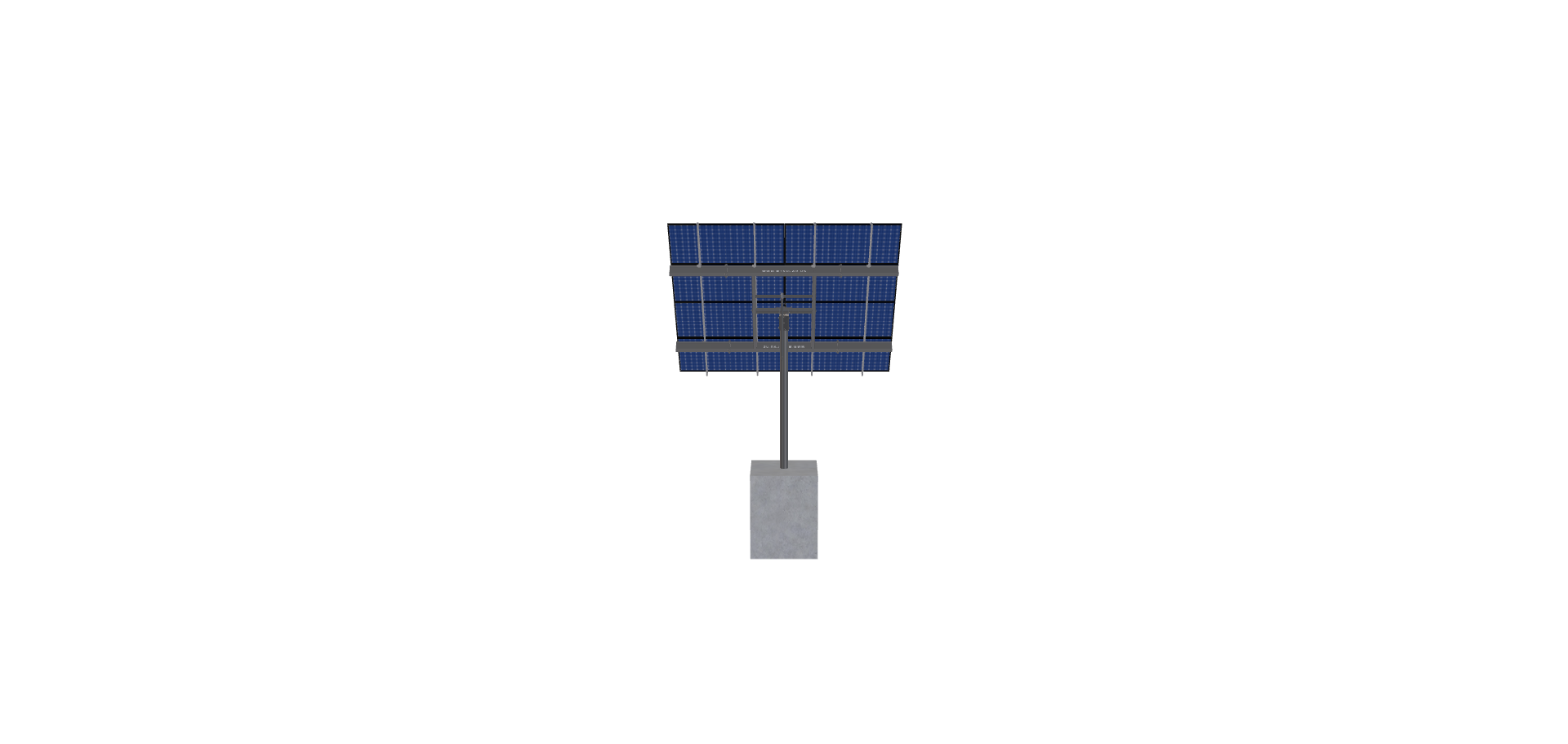

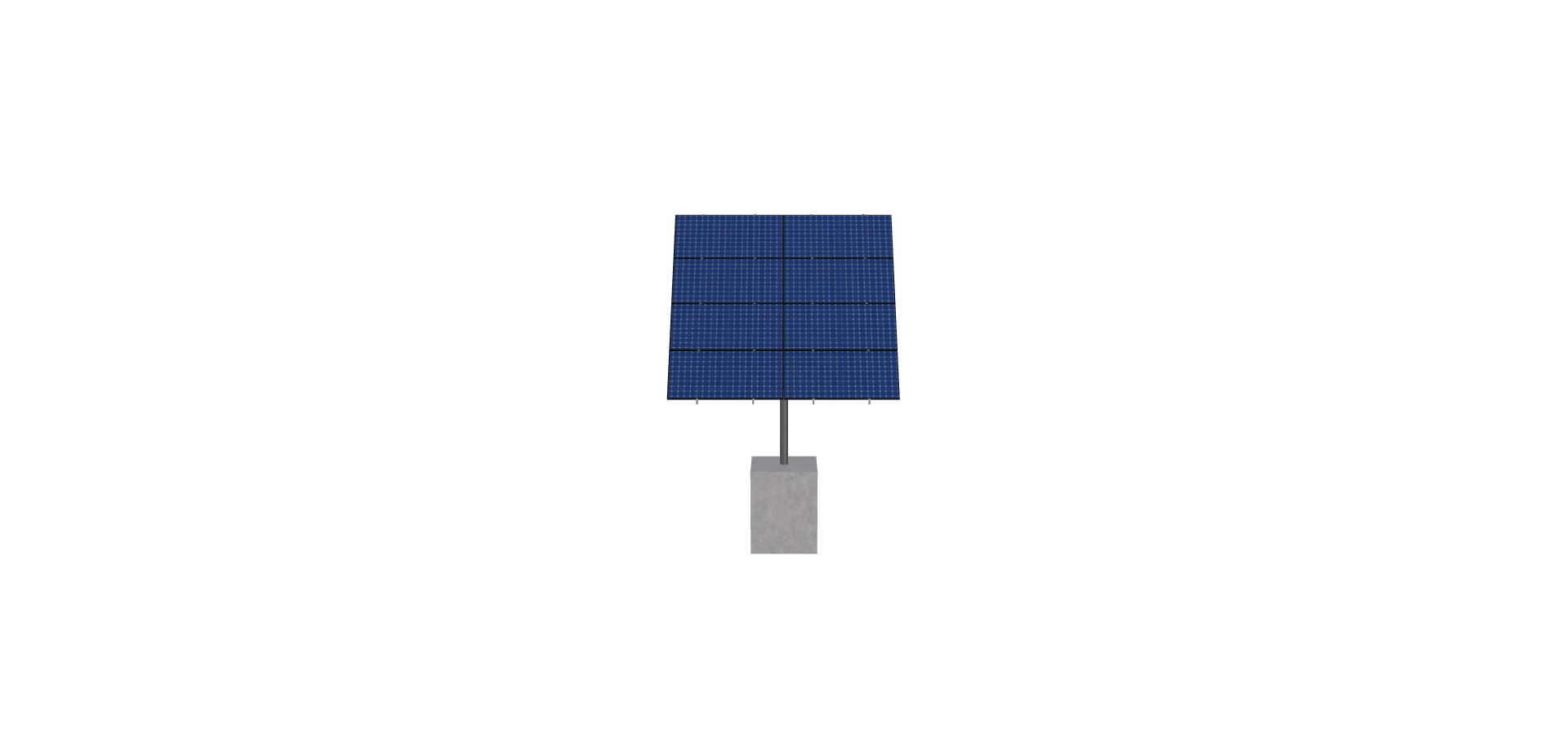

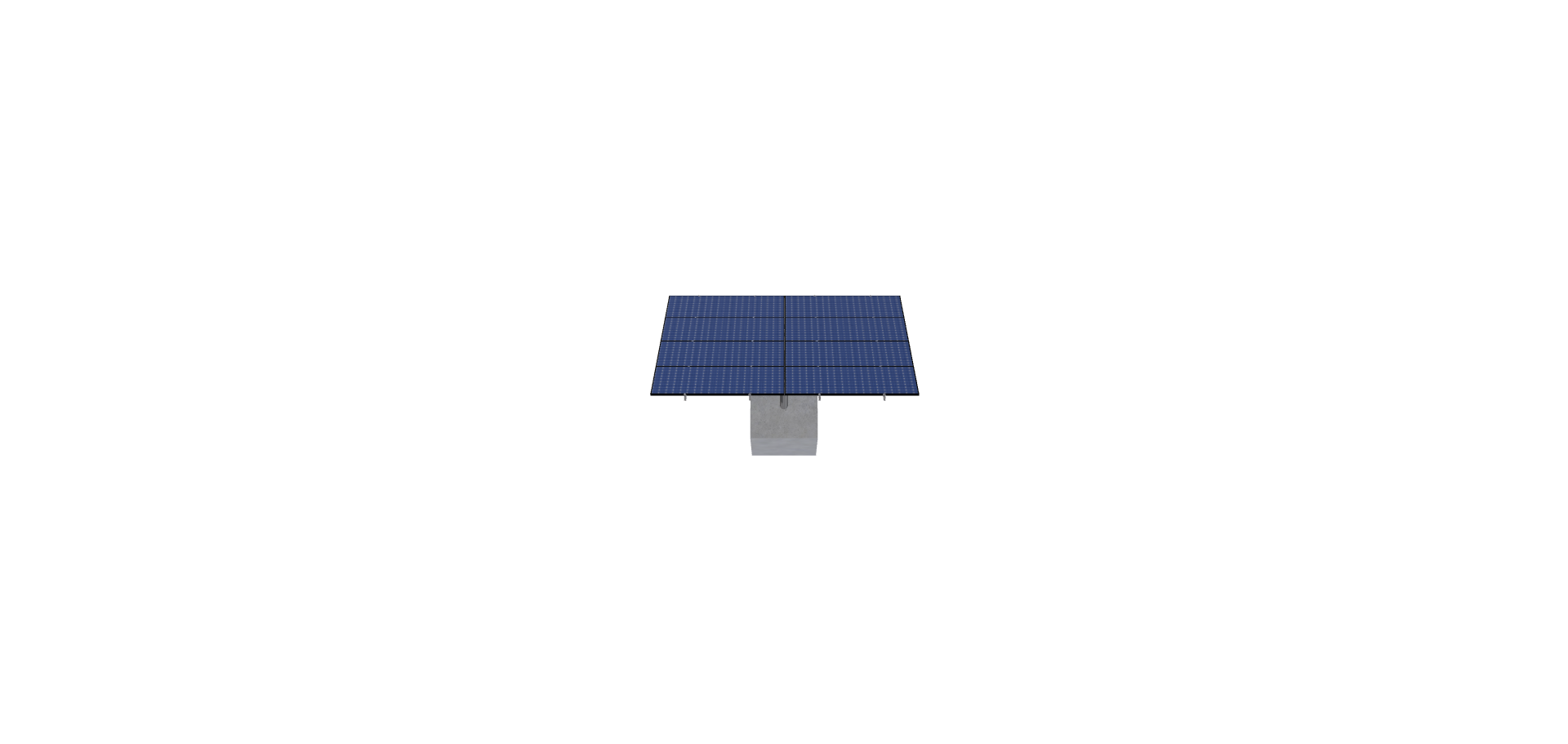

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

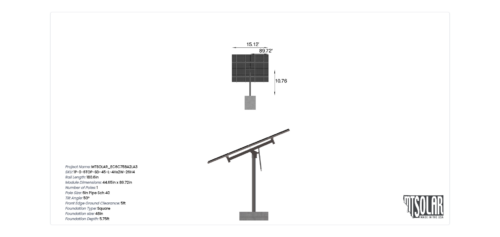

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-45-L-4Hx2W-26H4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 626.44 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-45-L-4HX2W-26H4

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.76

WING SPAN

45.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

50.00

CANTILEVER

180.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

227.56

ARRAY WIDTH

15.12

ARRAY HEIGHT

15.05

RAIL LENGTH

180.60

MODULE LENGTH

89.72

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

15.00

GROUND TO TOP

16.47

PROJECTED PANEL HEIGHT

11.40

PROJECT ID

MTSOLAR, EC6C75BA2LA3

SITE ADDRESS

MCCALL, ID, 83638, USA

MODULE WIDTH

44.65

NUMBER ROWS

4.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

3553.00

TOTAL WEIGHT

626.44

TOTAL PALLETS

1.00
