MTSOLAR_H7G6J0HKE954

$10,682.26

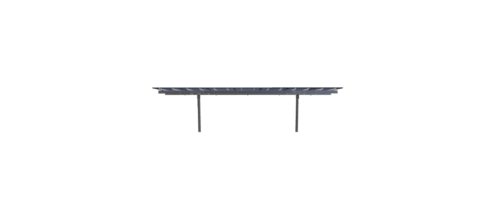

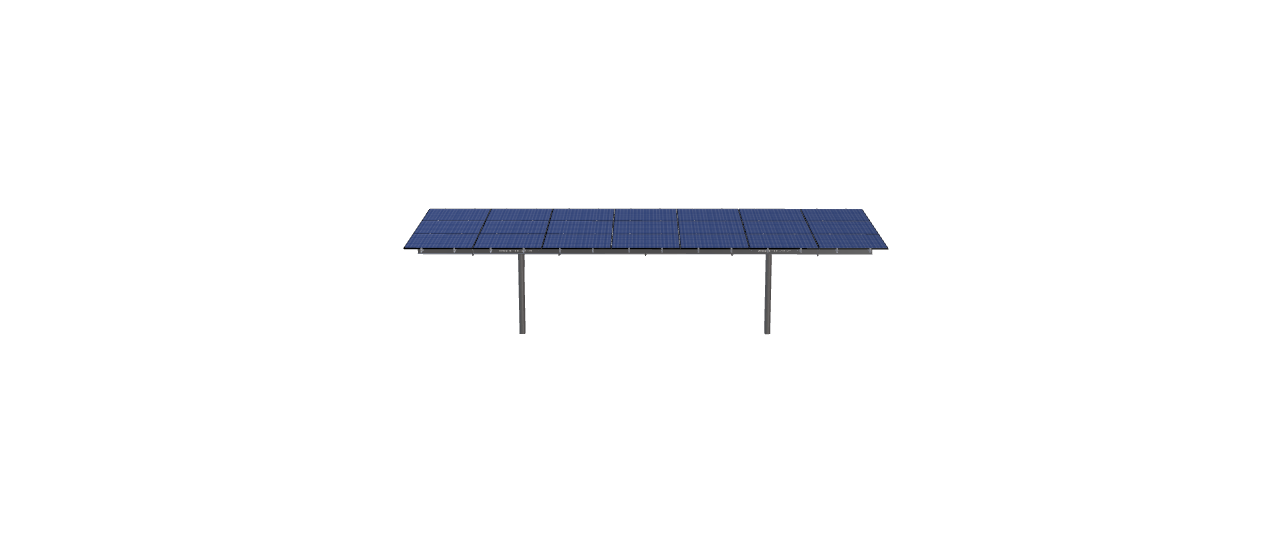

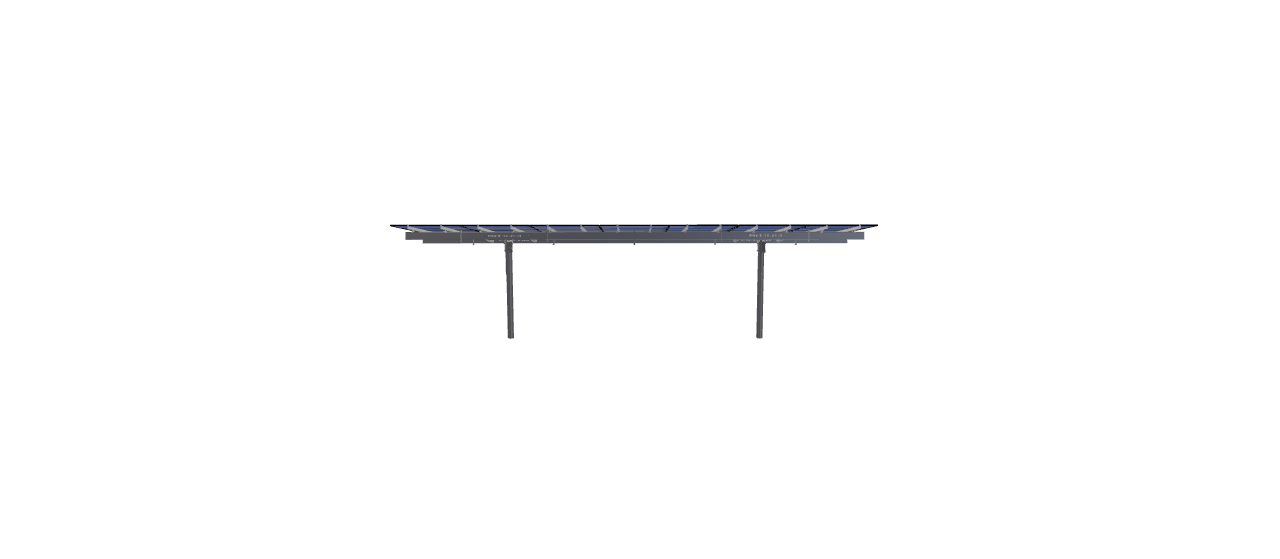

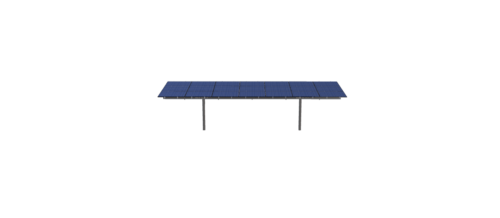

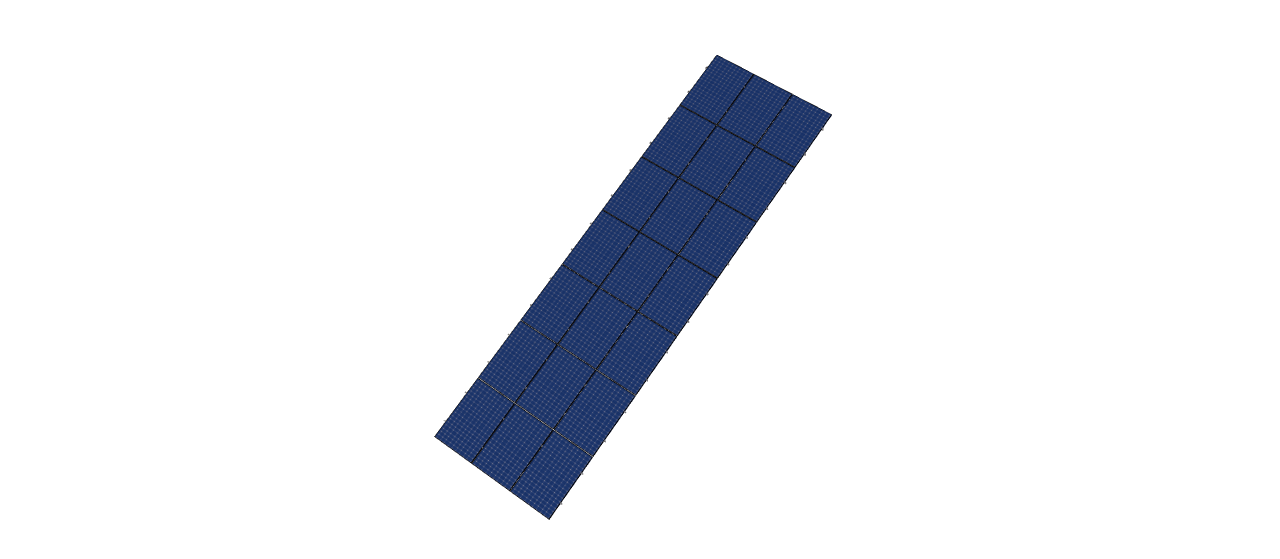

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 48 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

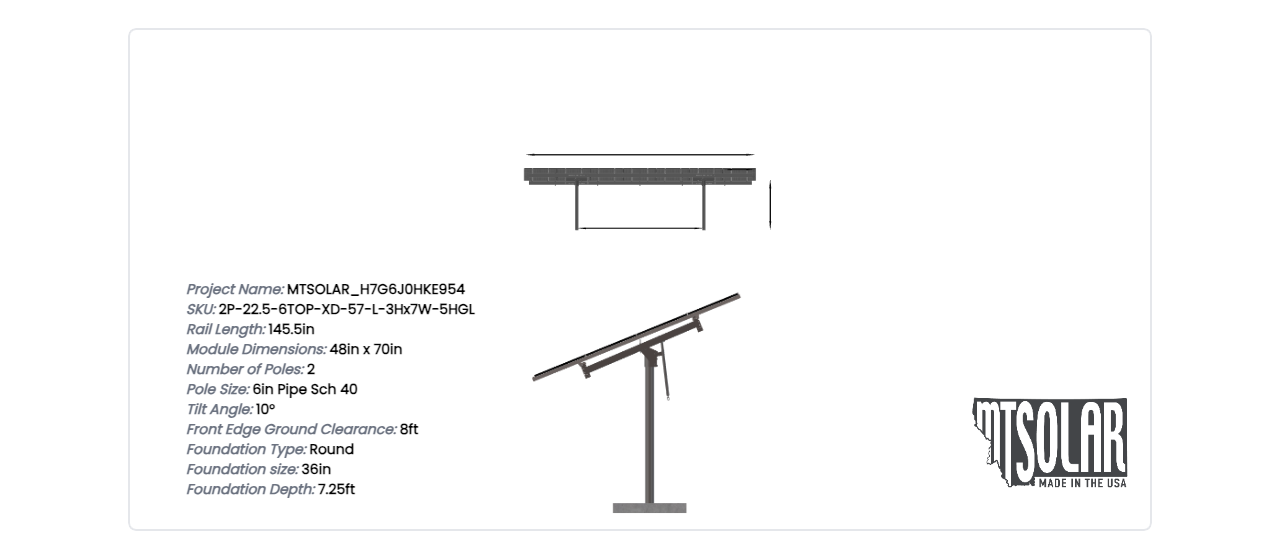

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $10,682.26
Total options:
Order total:
SKU: 2P-22.5-6TOP-XD-57-L-3Hx7W-5HGL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 48 inches and an array layout of 7 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2004.1399999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-XD-57-L-3HX7W-5HGL

DUTY SIZE

XD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

9.05

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

10.00

CANTILEVER

474.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

502.18

ARRAY WIDTH

41.42

ARRAY HEIGHT

12.13

RAIL LENGTH

145.50

MODULE LENGTH

70.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

10.09

PROJECTED PANEL HEIGHT

2.08

PROJECT ID

MTSOLAR, H7G6J0HKE954

SITE ADDRESS

3690, SILVARIO, CT, COTTONWOOD, CA, 96022, USA

MODULE WIDTH

48.00

NUMBER ROWS

3.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

130.00

SNOW LOAD OVERRIDE

45.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

10682.26

TOTAL WEIGHT

2004.14

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/76d68967-71df-4d80-9347-d81a62fd77e5.pdf

ID

6917.00
