This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.9 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

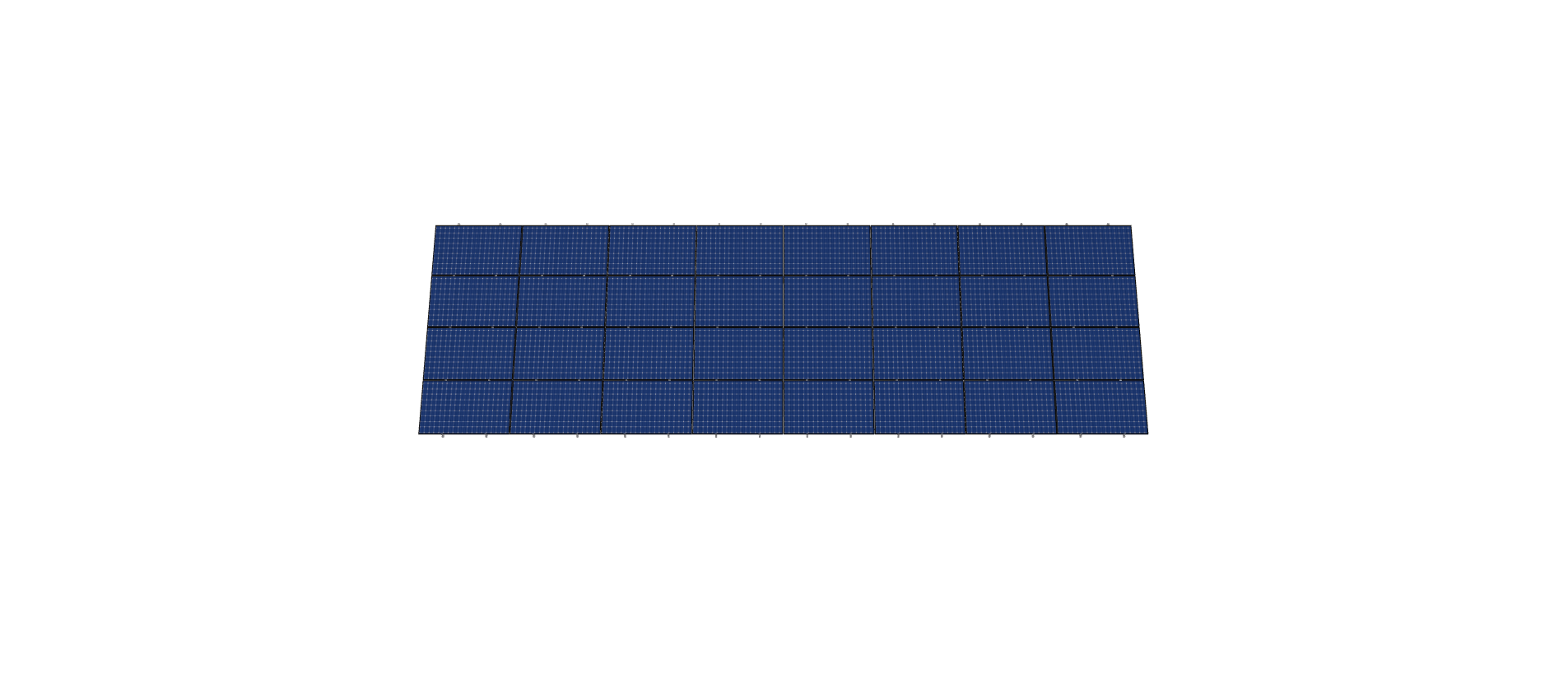

See 3D Model Here
MTSOLAR_Honeywell Aguadilla_TRIAL
$15,994.09
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.9 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2725.89 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-XD-24-L-4HX8W-K94E |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.26 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 2.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 720.60 |
| ARRAY WIDTH | 47.93 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 70.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 9.52 |
| PROJECTED PANEL HEIGHT | 0.52 |
| DESIGNER NAME | ALEXANDRA, GARCIA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7873655298.00 |
| PROJECT ID | MTSOLAR, HONEYWELL, AGUADILLA, TRIAL |
| SITE ADDRESS | FHMW+FW, HOMESTEAD, BASE, FL, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 175.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15232.47 |
| TOTAL WEIGHT | 2725.89 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/1c4e1575-c66c-4ece-bff4-3a650e57be3f.pdf |
|
| ID | 10808.00 |
| 3D Solar link |
