MTSOLAR_J1271GAI67BD

$7,412.92

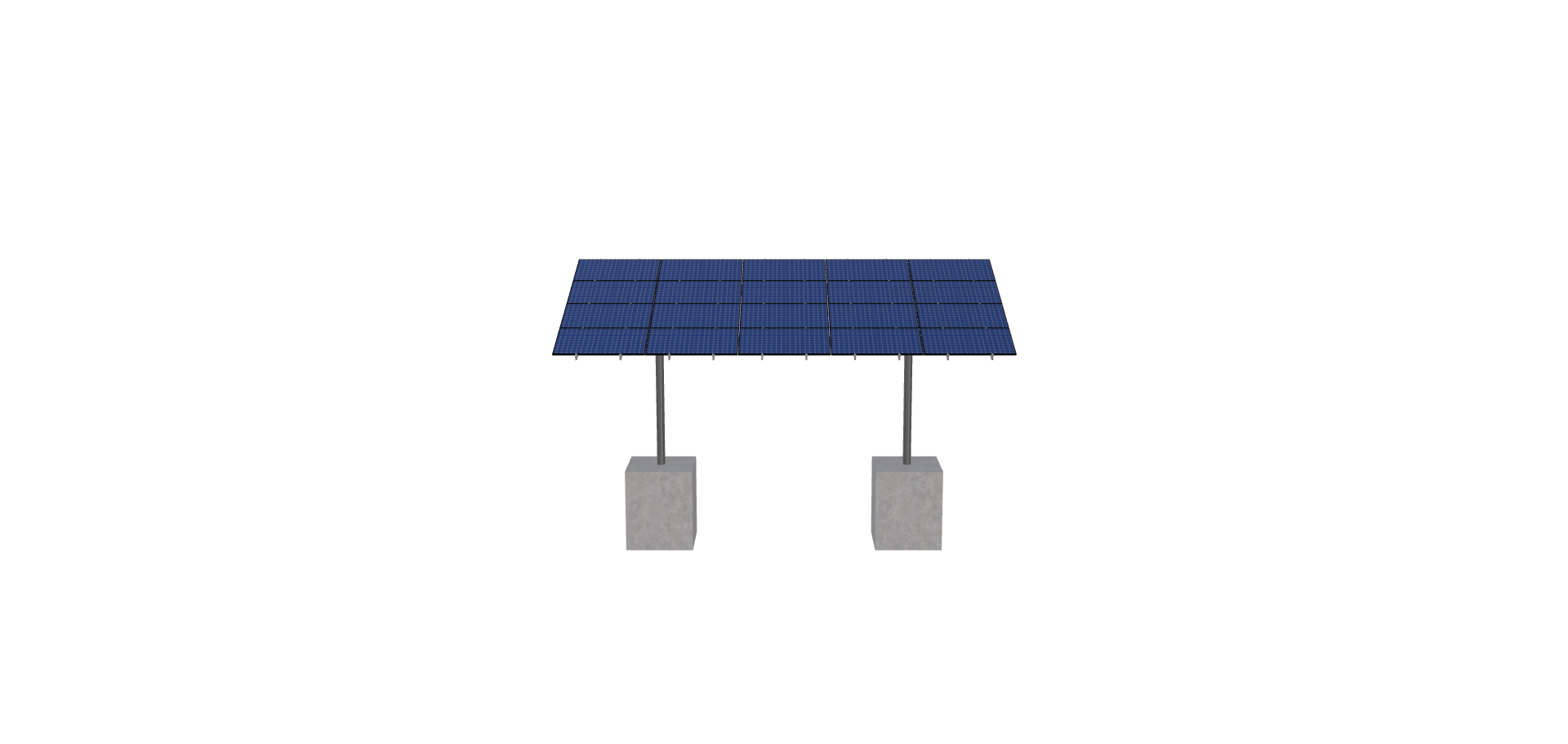

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 42 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-17-6TOP-SD-24-L-4Hx5W-LLFL Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70 inches by 42 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1287.1 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-6TOP-SD-24-L-4HX5W-LLFL

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

10.42

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

20.00

CANTILEVER

342.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

419.10

ARRAY WIDTH

29.58

ARRAY HEIGHT

14.17

RAIL LENGTH

170.00

MODULE LENGTH

70.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

28.50

GROUND TO TOP

12.82

PROJECTED PANEL HEIGHT

4.79

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MTSOLAR, J1271GAI67BD

SITE ADDRESS

4170, FINNEY, CO, FEEDERS, RD, GARDEN, CITY, KS, 67846, USA

MODULE WIDTH

42.00

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

7412.92

TOTAL WEIGHT

1287.10

TOTAL PALLETS

2.00
