This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

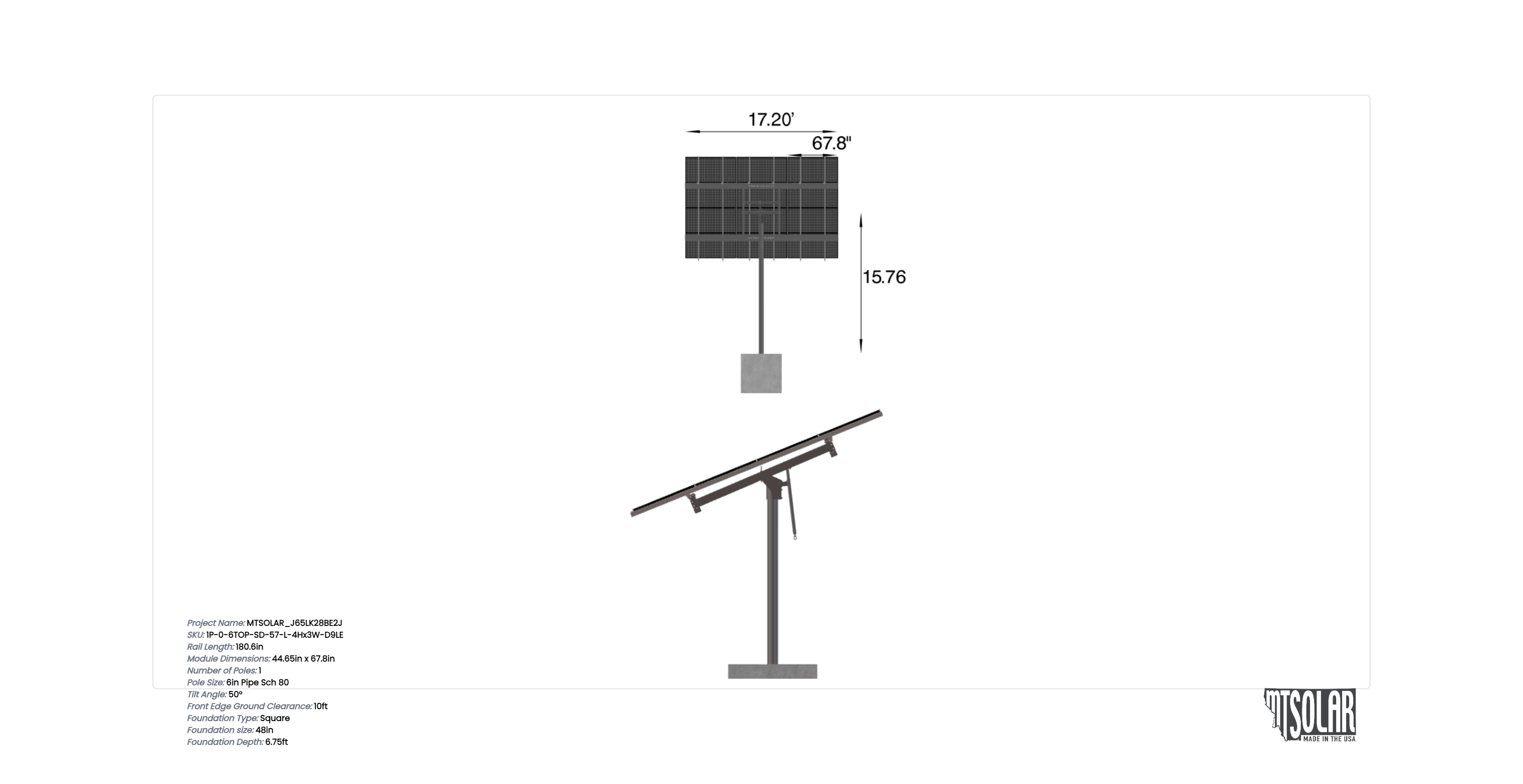

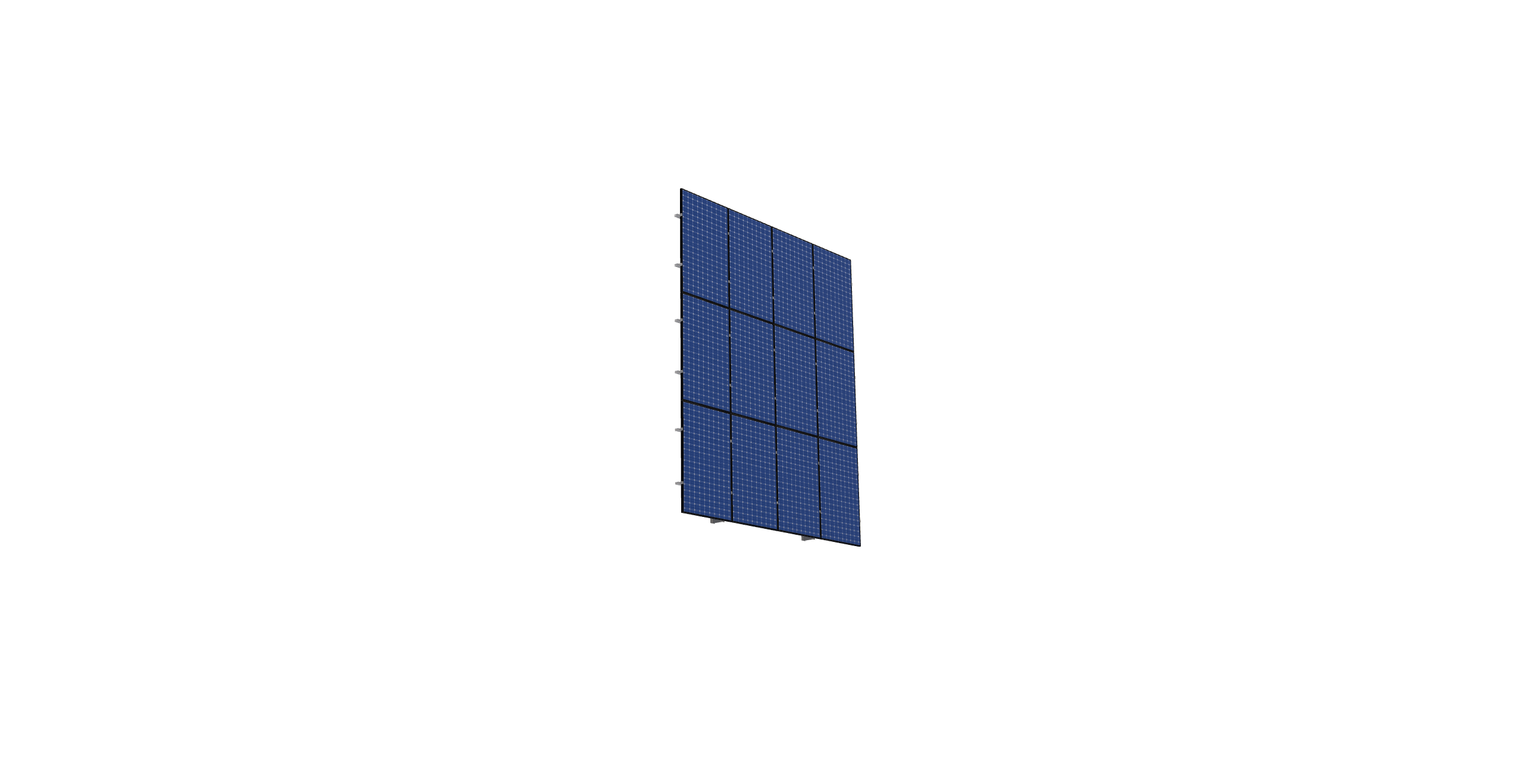

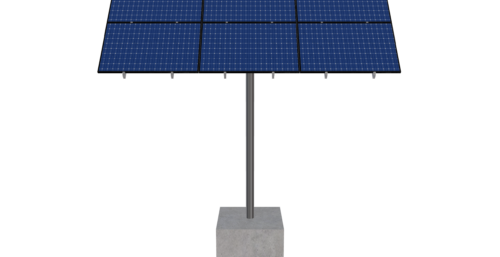

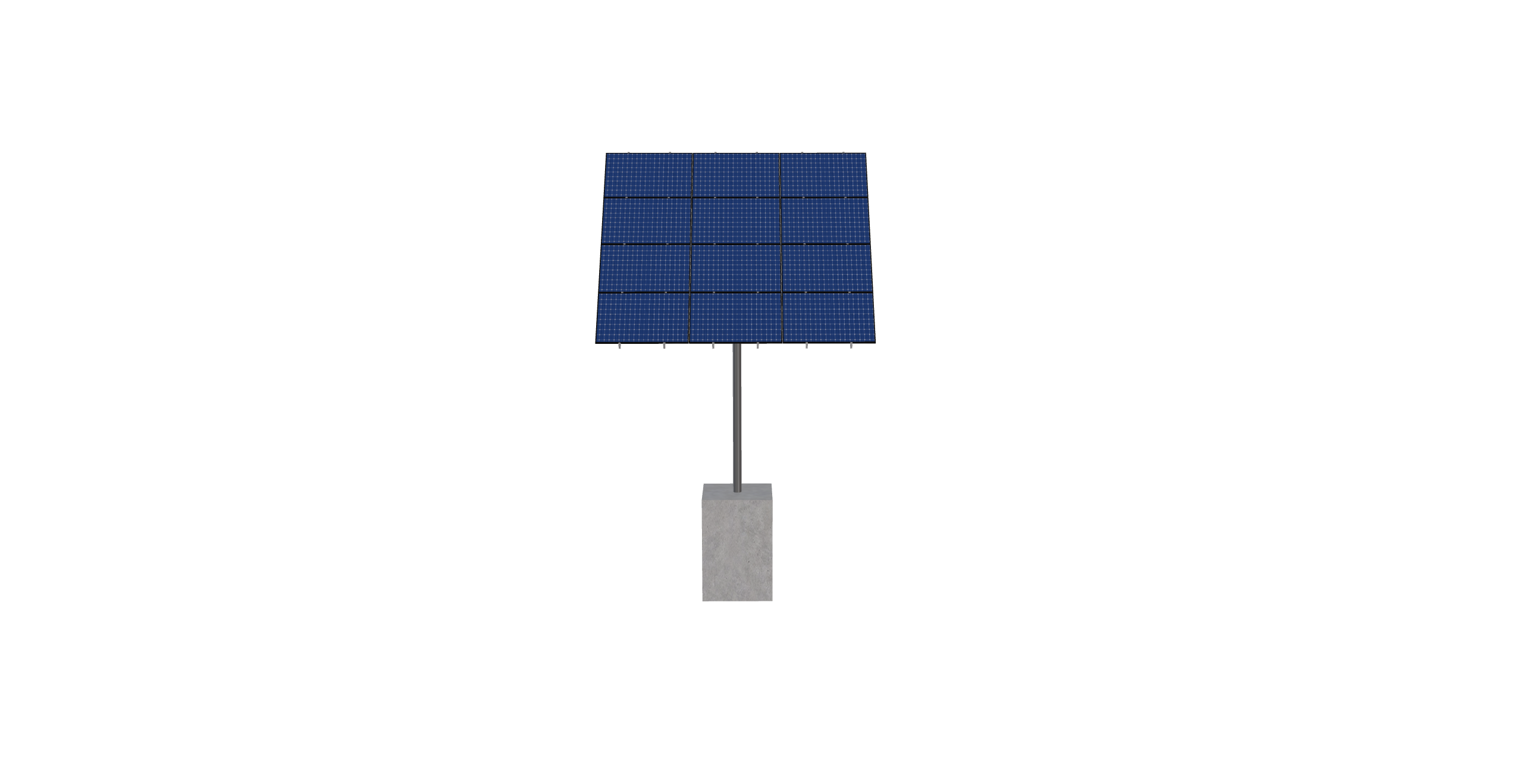

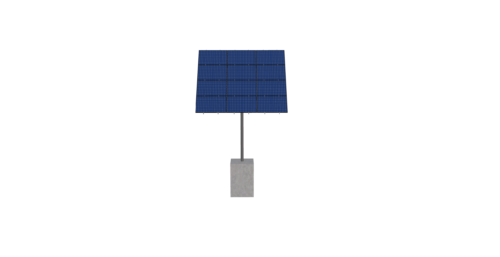

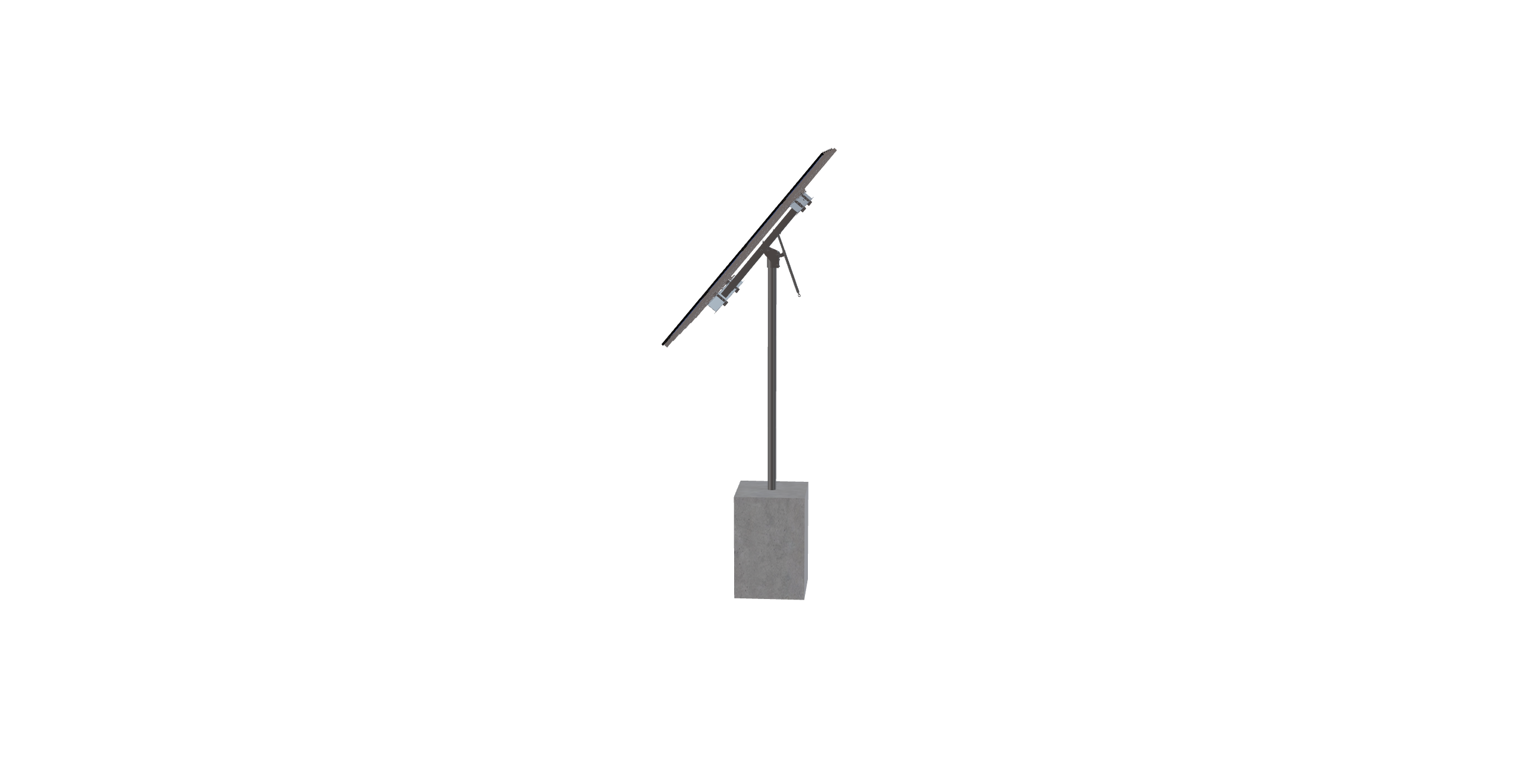

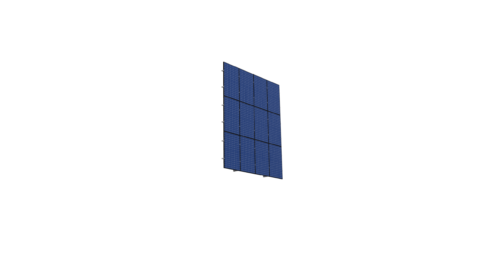

See 3D Model Here
MTSOLAR_J65LK28BE2J
$4,000.30
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 699.66 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-57-L-4HX3W-D9LE |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 15.76 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 50.00 |
CANTILEVER | 204.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 1.00 |
MODULE AREA | 258.86 |
ARRAY WIDTH | 17.20 |
ARRAY HEIGHT | 15.05 |
RAIL LENGTH | 180.60 |
MODULE LENGTH | 67.80 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 17.00 |
GROUND TO TOP | 21.47 |
PROJECTED PANEL HEIGHT | 11.40 |
PROJECT ID | MTSOLAR, J65LK28BE2J |
SITE ADDRESS | 205, NATURE, TRAIL, GALAX, VA, 24333, USA |
MODULE WIDTH | 44.65 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 105.00 |
SNOW LOAD OVERRIDE | 25.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 4000.30 |
TOTAL WEIGHT | 699.66 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/d6ceb095-3d54-4072-8b10-eb3aaf093b59.pdf |
|
ID | 6529.00 |
3D Solar link |
