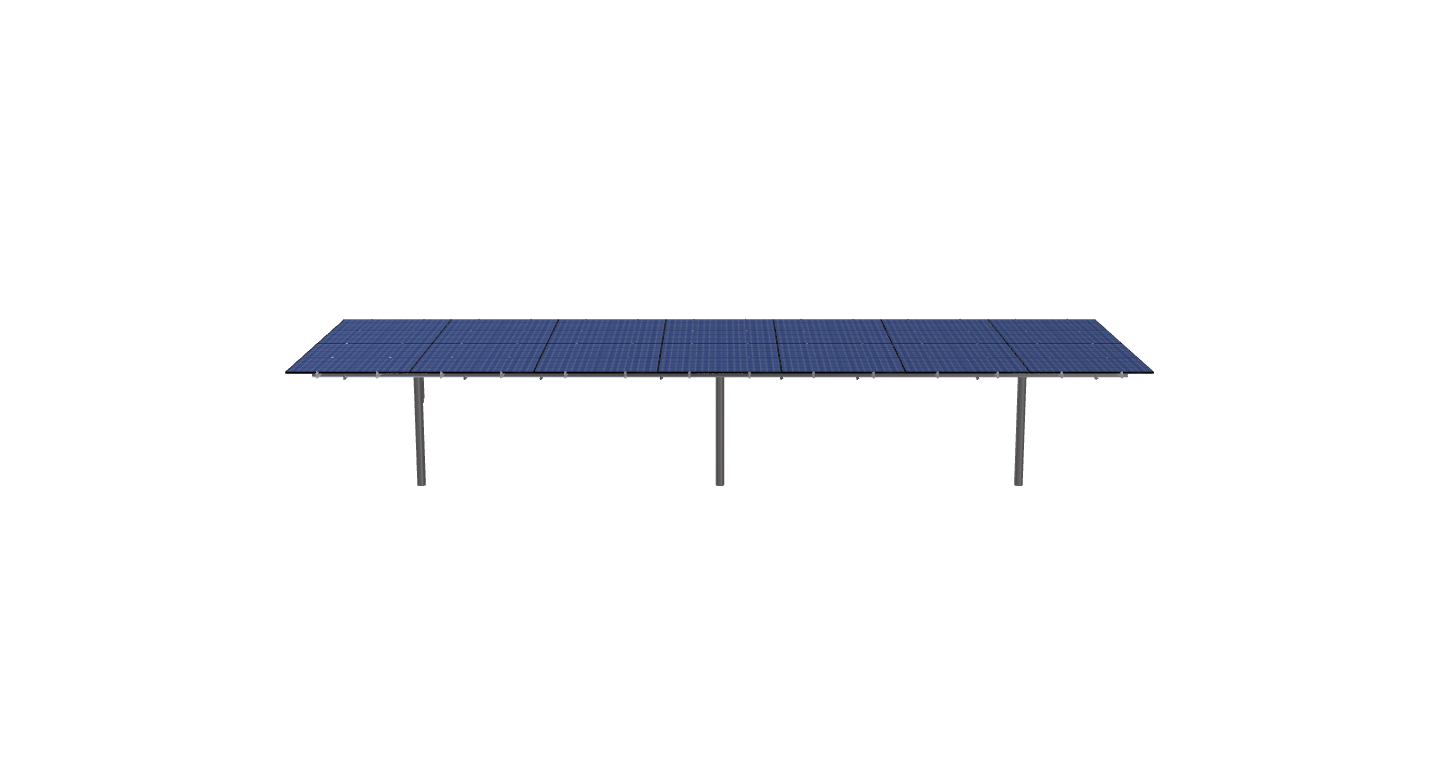

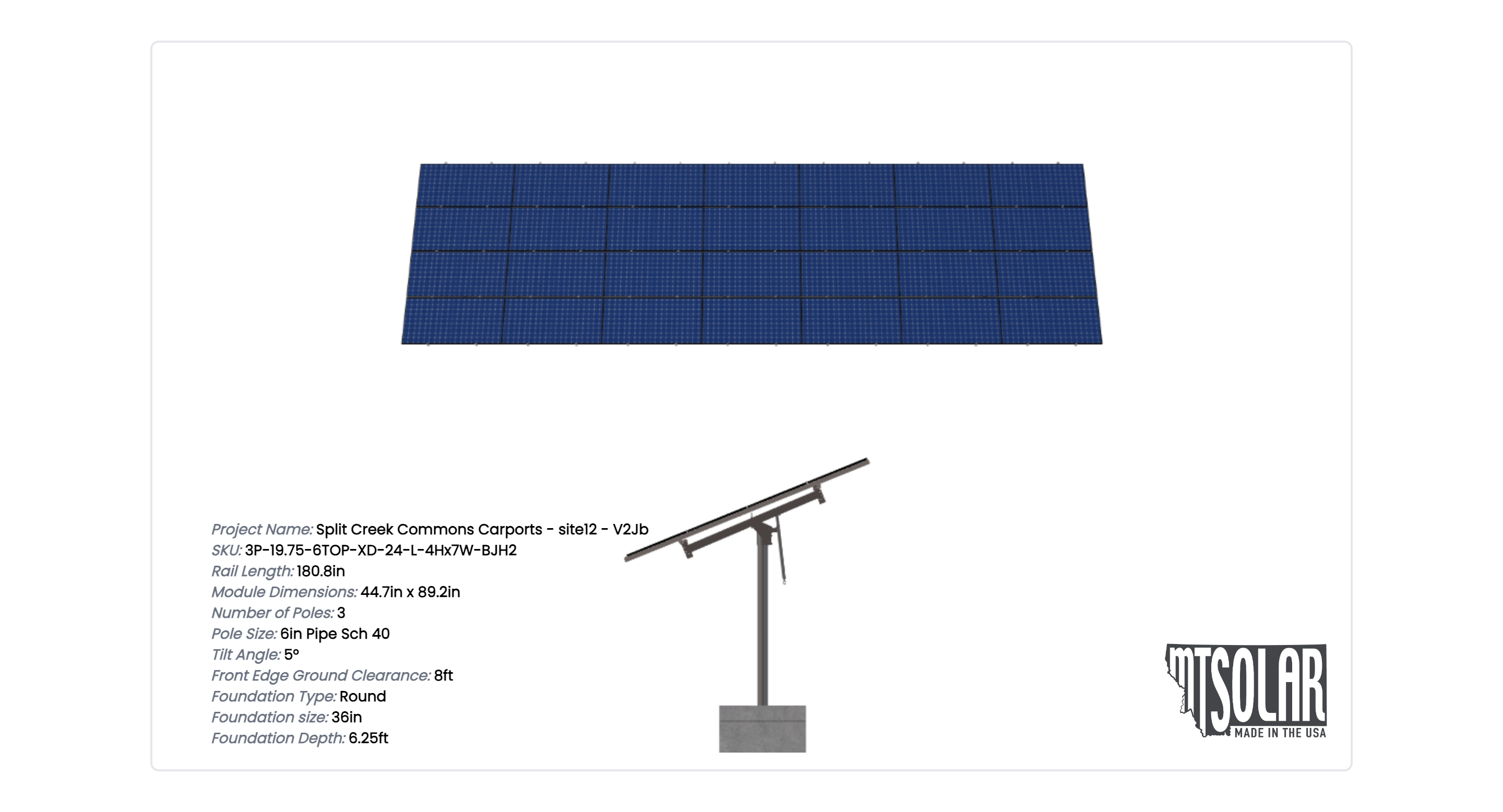

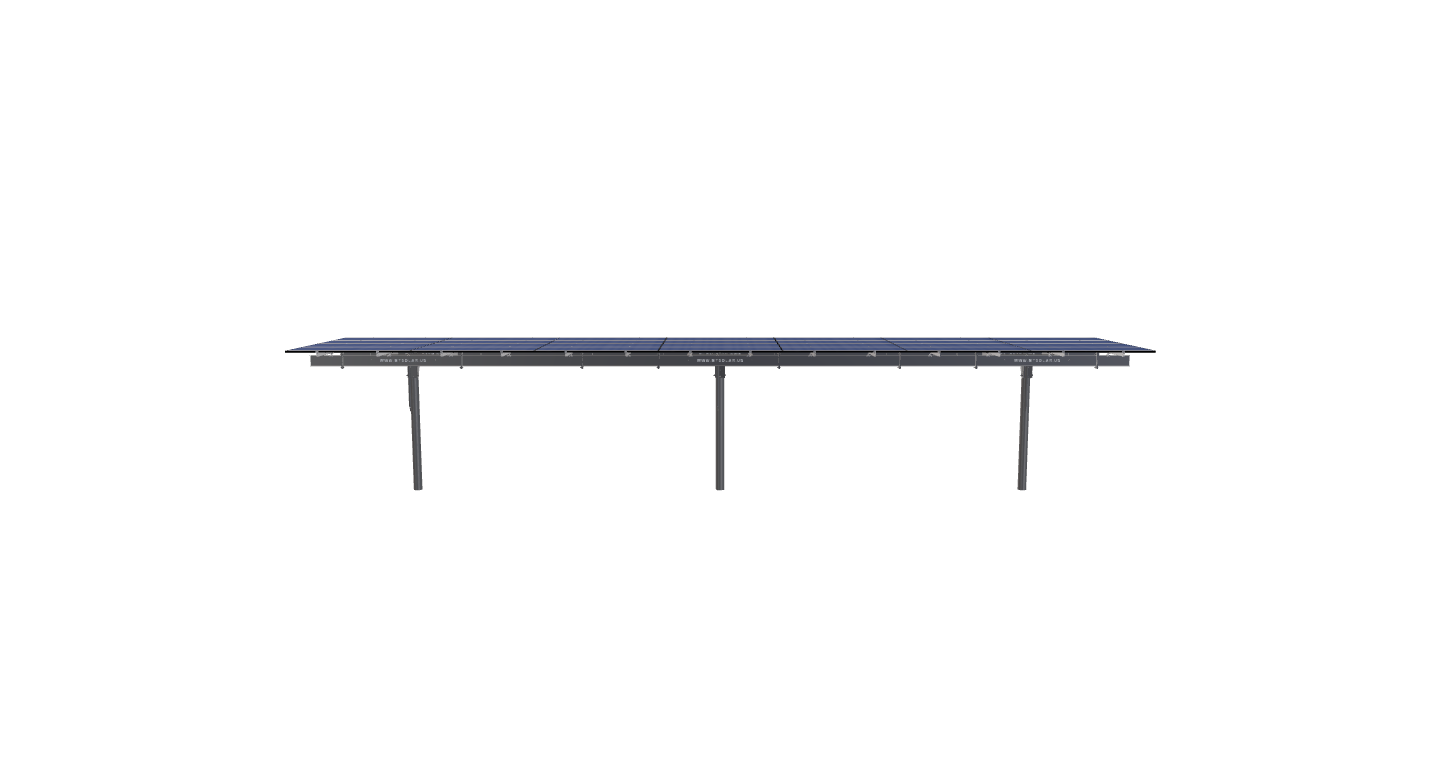

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.7 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Split Creek Commons Carports – site12 – V2Jb
$14,791.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.7 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2771.39 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-XD-24-L-4HX7W-BJH2 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.66 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 792.76 |
| ARRAY WIDTH | 52.62 |
| ARRAY HEIGHT | 15.07 |
| RAIL LENGTH | 180.80 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 9.31 |
| PROJECTED PANEL HEIGHT | 1.31 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 42.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | BLACK, HILLS, SOLAR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6057022510.00 |
| PROJECT ID | SPLIT, CREEK, COMMONS, CARPORTS, -, SITE12, -, V2JB |
| SITE ADDRESS | 5102, SHELBY, AVE, RAPID, CITY, SD, 57701, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14791.57 |
| TOTAL WEIGHT | 2771.39 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/5bca0c65-d3b2-46f2-ab94-b48722882566.pdf |
|
| ID | 8679.00 |
| 3D Solar link |
