Tavoli Apartments-5×11-v1cu

$21,607.81

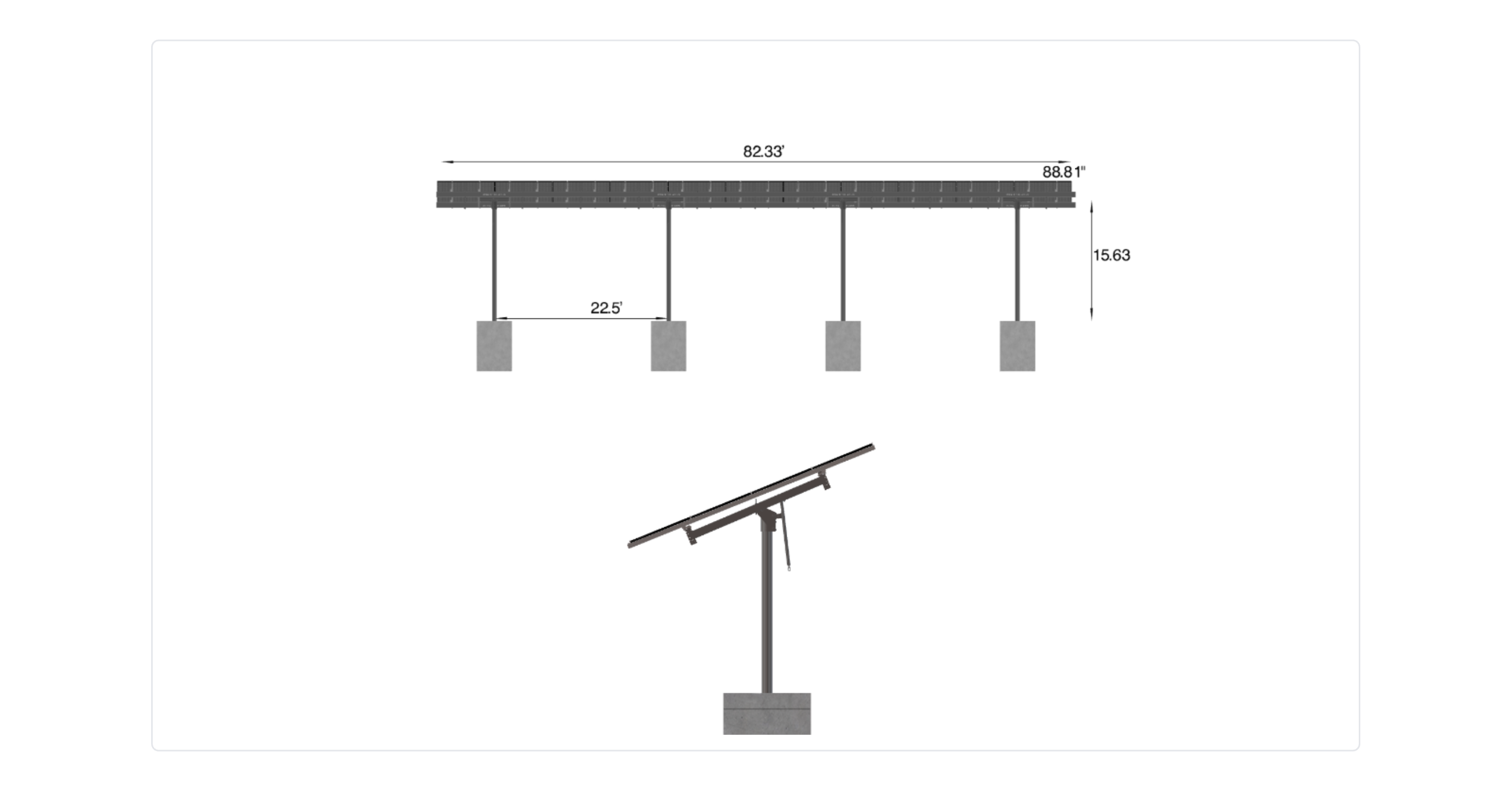

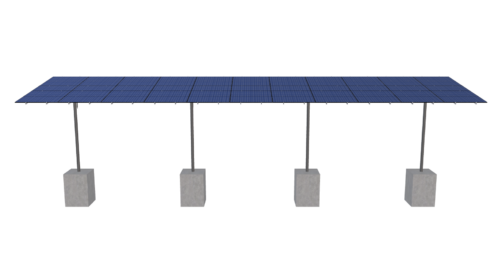

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.81 inches by 44.65 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-22.5-8TOP-HD-45-L-5Hx11W-CA23 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.81 inches by 44.65 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4382.96 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-22.5-8TOP-HD-45-L-5HX11W-CA23

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

22.50

POLE HEIGHT

15.63

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

10.00

CANTILEVER

990.00

GROUND CLEARANCE

14.00

NO POLES

4.00

MODULE AREA

1548.75

ARRAY WIDTH

82.33

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

88.81

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

82.50

GROUND TO TOP

17.25

PROJECTED PANEL HEIGHT

3.23

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

TAVOLI, APARTMENTS-5X11-V1CU

SITE ADDRESS

1040, ST, CHARLES, AVE, NEW, ORLEANS, LA, 70130, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

11.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

21607.81

TOTAL WEIGHT

4382.96

TOTAL PALLETS

4.00

pdf

https://skycivquotes.s3.amazonaws.com/9ac82f65-c79c-40fc-8b69-a2aceee7d6a9.pdf

ID

6757.00
