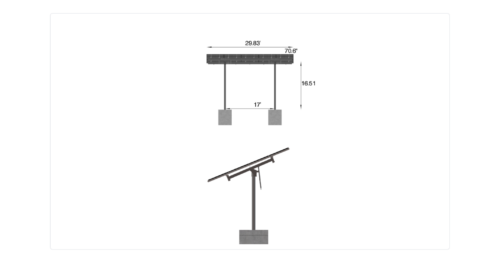

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.6 inches by 41.2 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

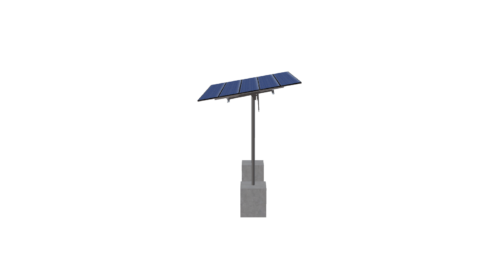

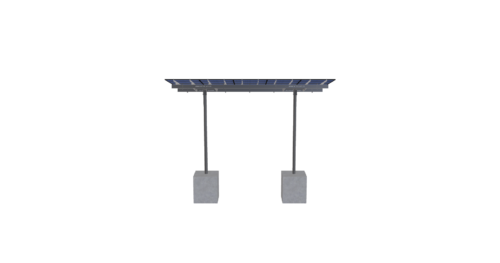

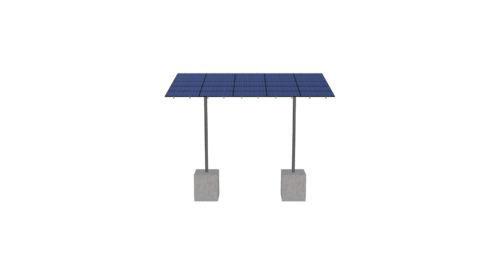

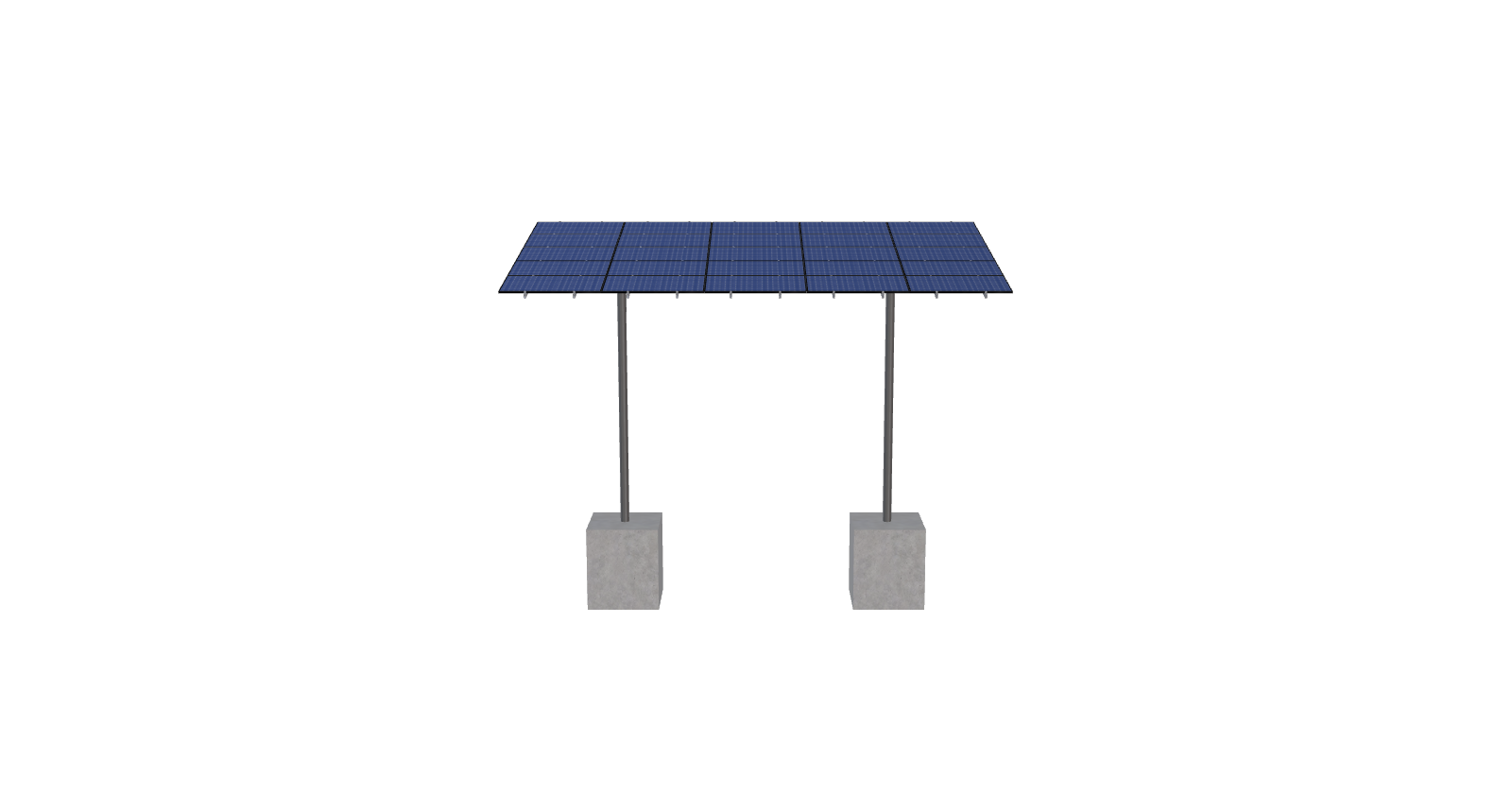

See 3D Model Here
USDCampusPhase1-5×5 REV2CU
$9,333.16
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.6 inches by 41.2 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1841.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-HD-24-L-5HX5W-912D |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 16.51 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 2.00 |
| MODULE AREA | 518.35 |
| ARRAY WIDTH | 29.83 |
| ARRAY HEIGHT | 17.38 |
| RAIL LENGTH | 208.50 |
| MODULE LENGTH | 70.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 18.00 |
| PROJECTED PANEL HEIGHT | 2.98 |
| WIND SPEED OVERRIDE | 95.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | USDCAMPUSPHASE1-5X5, REV2CU |
| SITE ADDRESS | 5072, BENSON, RD, UNION, CITY, CA, 94587, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | III |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9333.16 |
| TOTAL WEIGHT | 1841.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/04dc287e-1035-4161-99d0-73fc30b312d7.pdf |
|
| ID | 3547.00 |
| 3D Solar link |
