This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

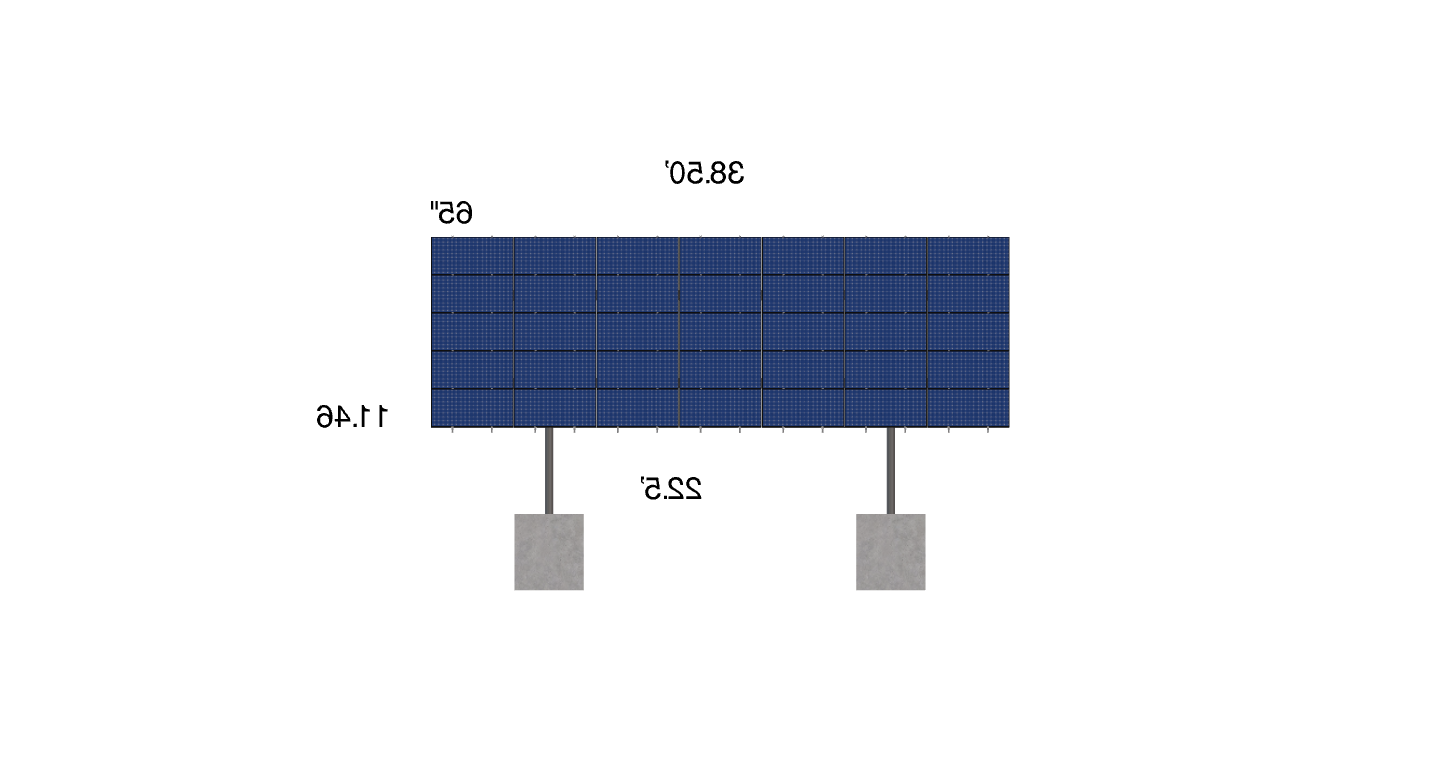

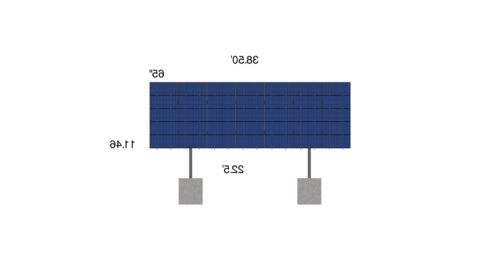

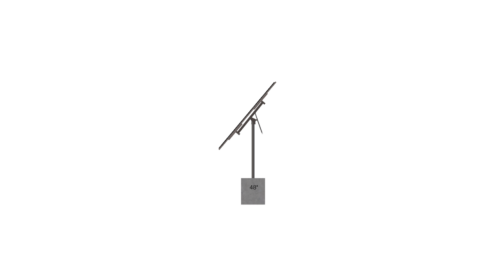

See 3D Model Here
MTSOLAR_12185G3CA4JDC – V1Jb
$10,448.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1973.08 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-6TOP-SD-45-L-5HX7W-IEC9 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 11.46 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 5.00 |
TILT ANGLE | 50.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 649.69 |
ARRAY WIDTH | 38.50 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 17.85 |
PROJECTED PANEL HEIGHT | 12.77 |
PROJECT ID | MTSOLAR, 12185G3CA4JDC, -, V1JB |
SITE ADDRESS | 207, ADIRONDACK, MT, TRL, OWLS, HEAD, NY, 12969, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 7.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 70.00 |
SNOW LOAD OVERRIDE | 50.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 9951.13 |
TOTAL WEIGHT | 1973.08 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/2b45f4d2-0fd7-4811-8d08-c4e821d6fe89.pdf |
|
ID | 7397.00 |
3D Solar link |
